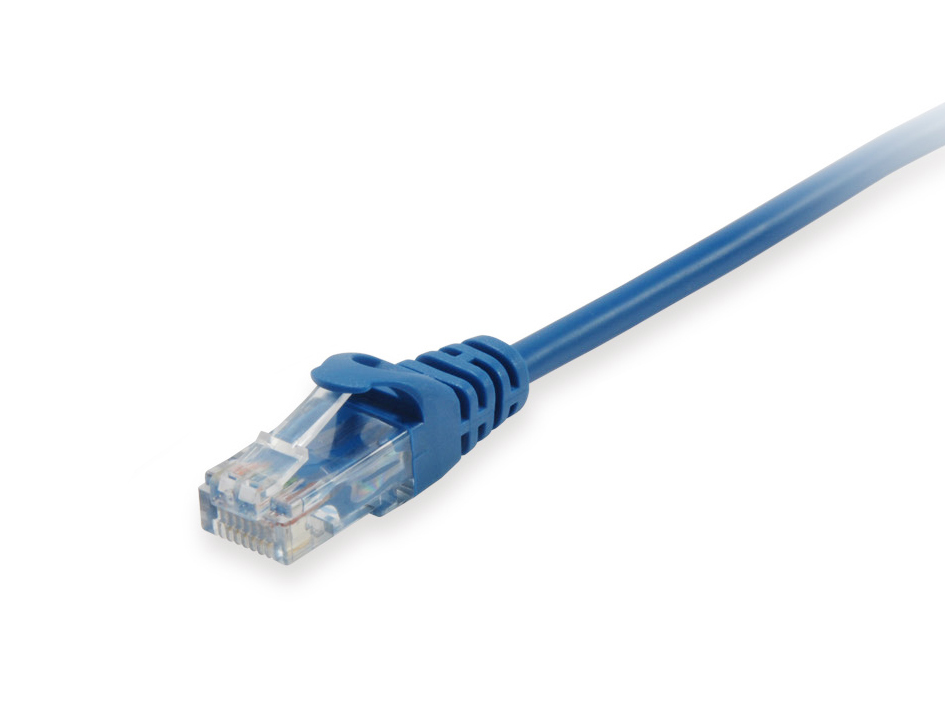

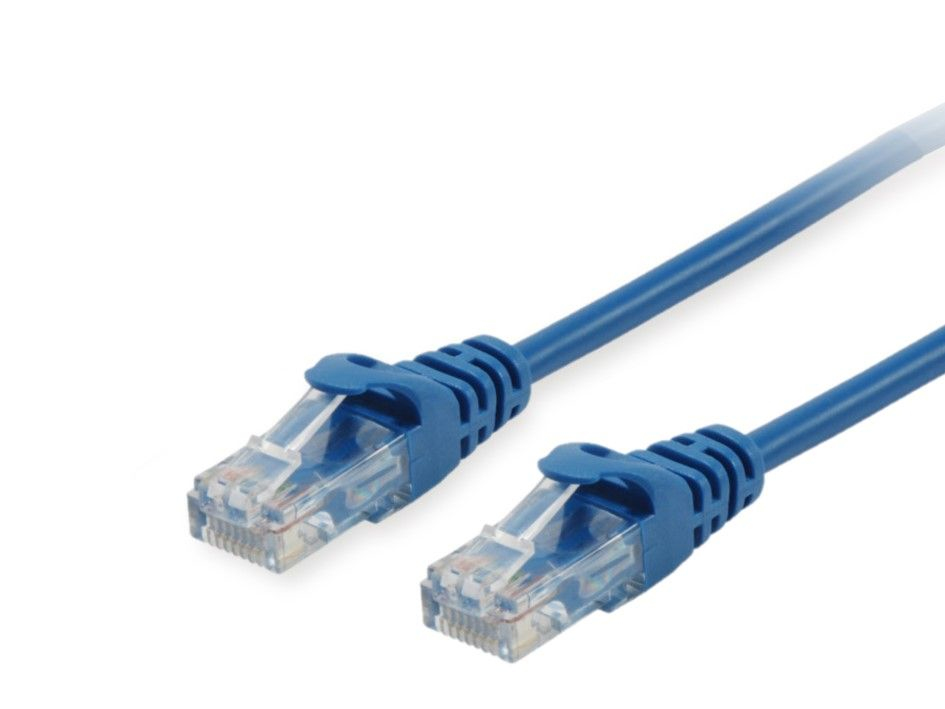

EU Product - Patchkabel Cat6 U/UTP 2xRJ45 2.00m blau PVC Polybeutel
Introduction
The equip® Cat.6 U/UTP Patch Cable is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.
Specifications
| Technical details | |
|---|---|
| Product colour | Blue |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 2 m |
| Country of origin | China |
| Sustainability compliance | Yes |
| Compliance certificates | CE, REACH, RoHS |
| Certificates | |
| Certification | ISO/IEC 11801, EN 50173 |
| Features | |
| Product colour | Blue |
| Country of origin | China |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Molded cable boot | Yes |
| Frequency | 250 MHz |
| AWG wire size | 26/7 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Certification | ISO/IEC 11801, EN 50173 |
| Cable length | 2 m |

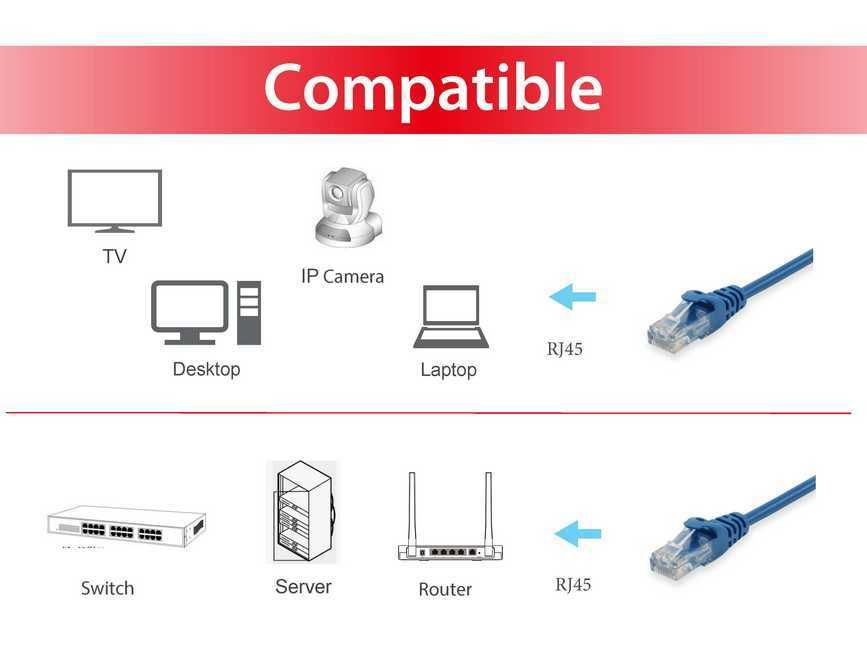

| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cable shape | Round |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Weight & dimensions | |
| Width | 8.34 mm |
| Depth | 11.7 mm |
| Height | 2000 mm |
| Outer diameter | 5 mm |
| Weight | 56 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 200 mm |
| Package type | Polybag |
| Package weight | 47 g |
| Logistics data | |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 450 mm |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Package type | Polybag |
