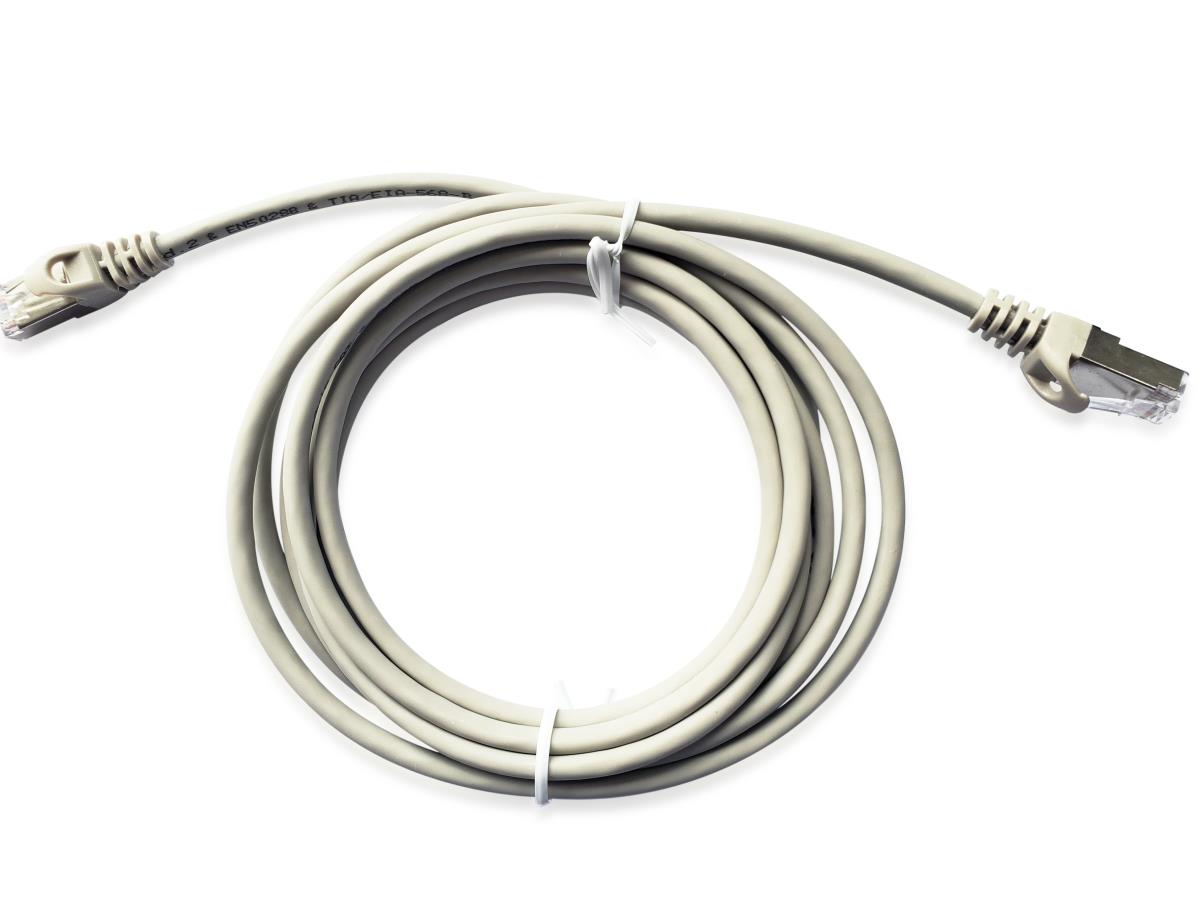

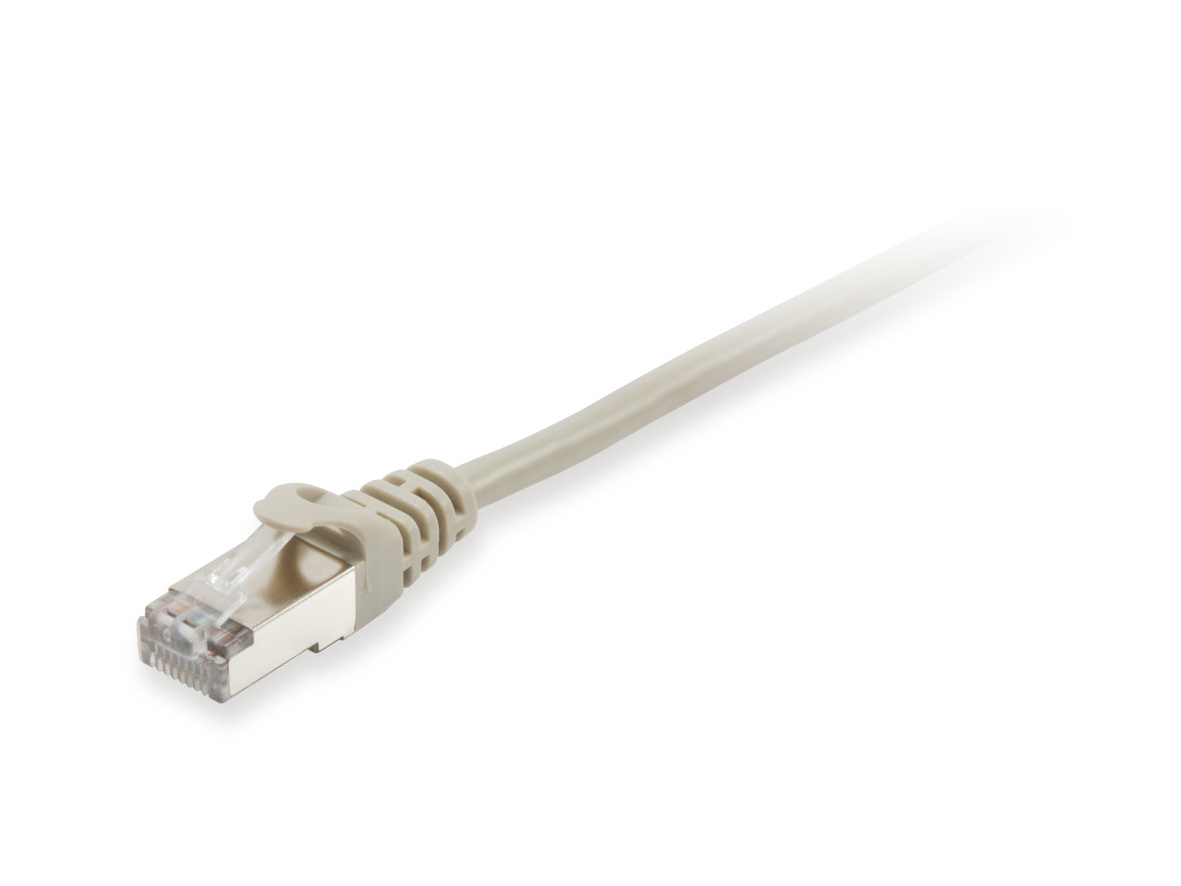

EU Product - Patchkabel Cat6 60x S/FTP 2xRJ45 0.50m grau LSZH
Introduction
The equip Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.
Specifications
| Technical details | |
|---|---|
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Country of origin | China |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS, CE |
| Features | |
| Product colour | Grey |
| Country of origin | China |
| Conductor material | Copper |
| Molded cable boot | Yes |
| Frequency | 250 MHz |
| AWG wire size | 28/7 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Round |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Power over Ethernet (PoE) type supported | PoE+ |
| Weight & dimensions | |
| Width | 8.34 mm |
| Depth | 11.7 mm |
| Height | 500 mm |
| Outer diameter | 5.8 mm |
| Weight | 1.15 kg |
| Packaging data | |
| Package width | 27 mm |
| Package depth | 19 mm |
| Package height | 17 mm |
| Quantity per pack | 60 pc(s) |
| Logistics data | |
| Master (outer) case gross weight | 11.4 kg |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 29 mm |
| Master (outer) case length | 40 mm |
| Master (outer) case height | 38 mm |
| Harmonized System (HS) code | 84733080 |
