Introduction

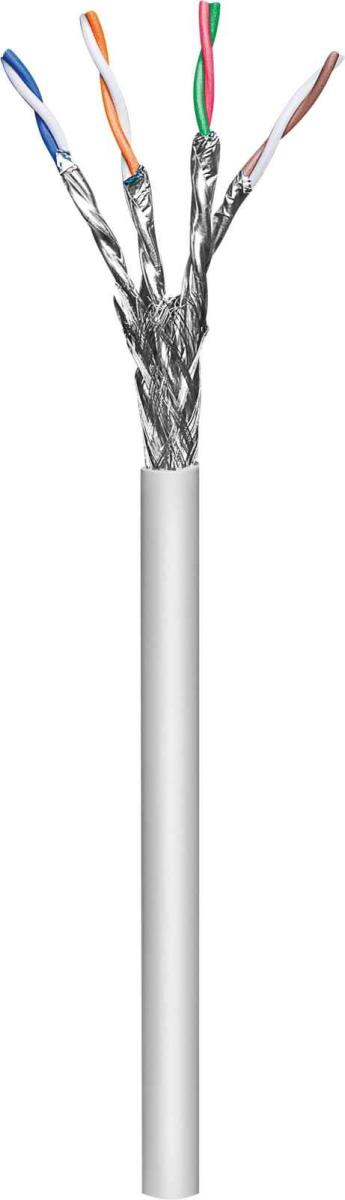

The Intellinet Network Solutions Cat7 S/FTP Installation Cable has a cable construction of 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The halogen-free cable jacket conforms to IEC 60332-3-24, FRNC-C, LSZH-3 and EuroClass CPR-Dca standards. The cable is best suited for building-structure cabling in secondary and tertiary areas.
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| AWG wire size | 23 |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 100 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Connector 2 gender | No |
| Connector 1 gender | No |
| Certification | IEC61156-5 ISO/IEC 11801 CPR-Dca REACH |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | IEC61156-5 ISO/IEC 11801 CPR-Dca REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 5.5 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 100 m |
| Compliance certificates | RoHS |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
