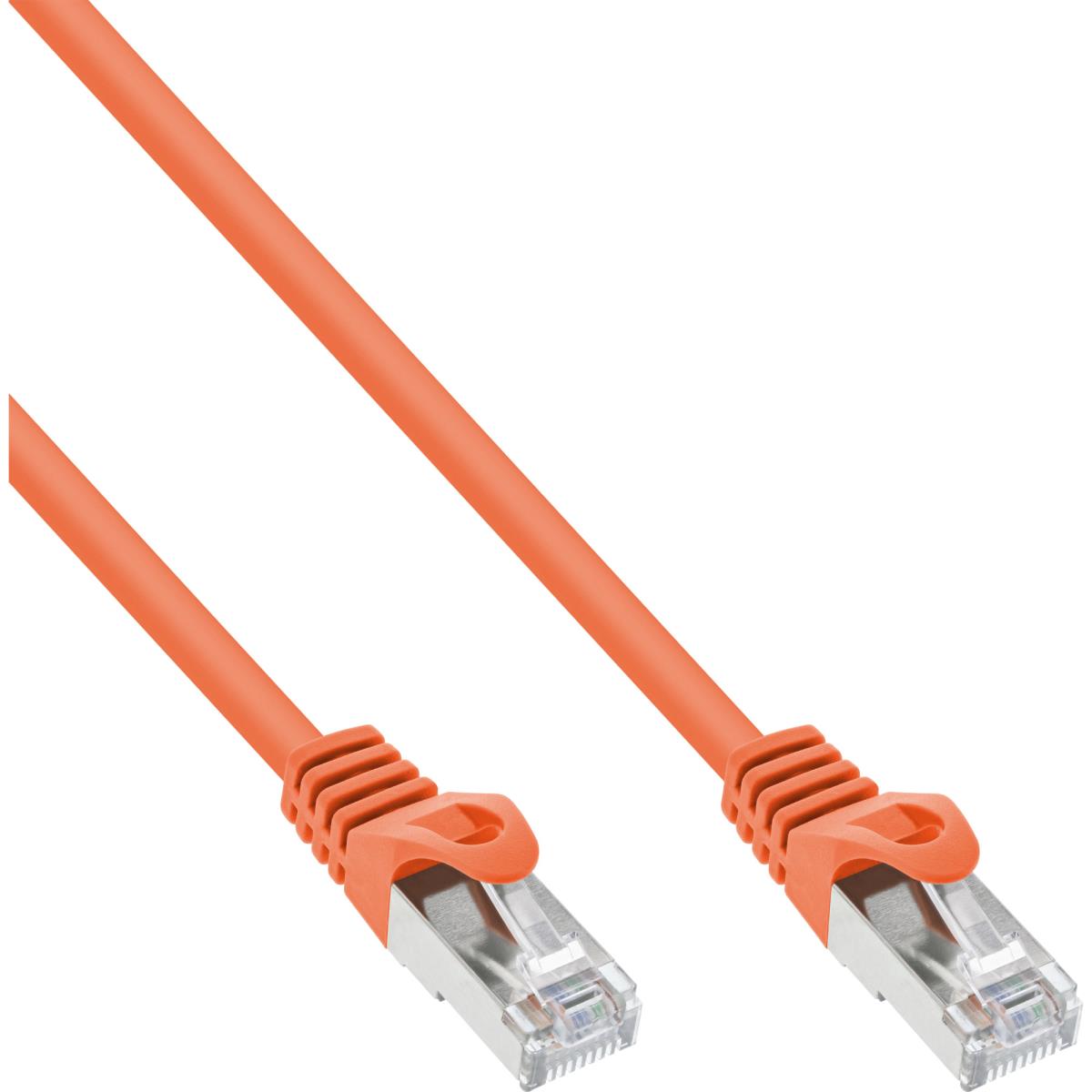

EU Product - - Patchkabel, SF/UTP, Cat.5e, orange, 0,25m
Introduction
Category Cat.5e twisted pair network cable for connecting network components with RJ45 connections, such as switches, routers, sockets, patch panels and network cards. Suitable for Gigabit connections (1Gb/s) at a maximum frequency of 125MHz.
Specifications
| Features | |
|---|---|
| Product colour | Orange |
| Twisted pair coupling type | 4x2 |
| Frequency | 125 MHz |
| AWG wire size | 26 |
| Cable standard | Cat5e |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 0.25 m |
| Ethernet interface type | Gigabit Ethernet |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | EIA/TIA 568B |
| Certificates | |
| Certification | EIA/TIA 568B |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 250 mm |
| Height | 15 mm |
| Weight | 15 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package volume | 200 cm³ |
| Package width | 100 mm |
| Package depth | 140 mm |
| Package height | 12 mm |
| Package type | Polybag |
| Package weight | 18 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Orange |
| Cable standard | Cat5e |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 0.25 m |
| Other features | |
| Package type | Polybag |
| Dimensions (WxDxH) | 12 x 250 x 15 mm |
