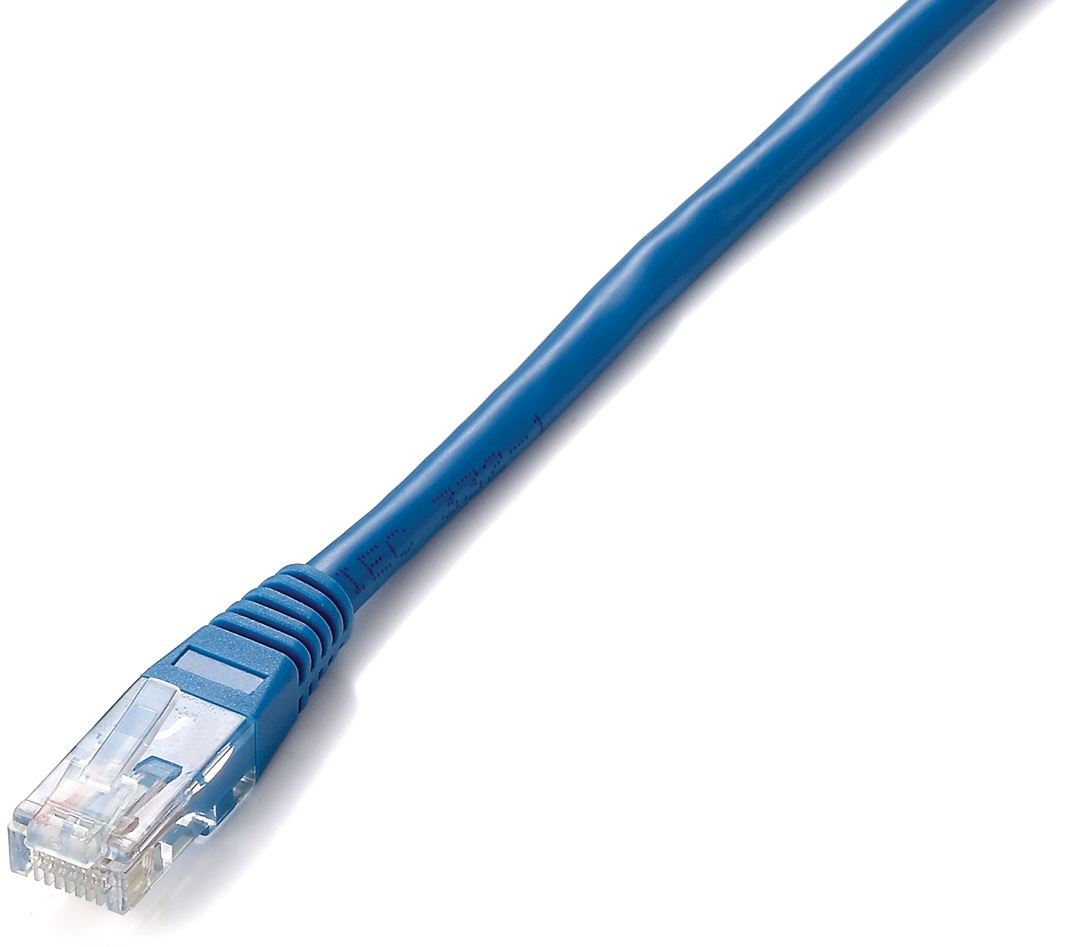

EU Product - Patchkabel Cat5e U/UTP 2xRJ45 15.00m blau PVC Polybeutel
Introduction
The equip® Cat.5e U/UTP Patch Cable is composed of high-quality materials and thoroughly-examined to meet ANSI/TIA-568-C.2 channel standard, delivering ultrahigh and error-free signal in the most demanding network environments.
- 26AWG at 100Mhz, Stranded Wire
- Gold plated pins and Molded boot with Strain relief
- RoHS compliant
- ISO/IEC 11801, EN50288 and ANSI/TIA 568-C.2
- Packaging: equip Polybag
Specifications
| Technical details | |
|---|---|
| Product colour | Blue |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 15 m |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | ISO/IEC 11801, EN50288, ANSI/TIA 568-C.2 |
| Features | |
| Product colour | Blue |
| Frequency | 100 MHz |
| AWG wire size | 26 |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Certification | ISO/IEC 11801, EN50288, ANSI/TIA 568-C.2 |
| Cable length | 15 m |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Weight & dimensions | |
| Outer diameter | 4.9 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
