STARTECH.COM A50FBLCLC7 STARTECH.COM 7M OM3 FIBER OPTIC PATCH CORD

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

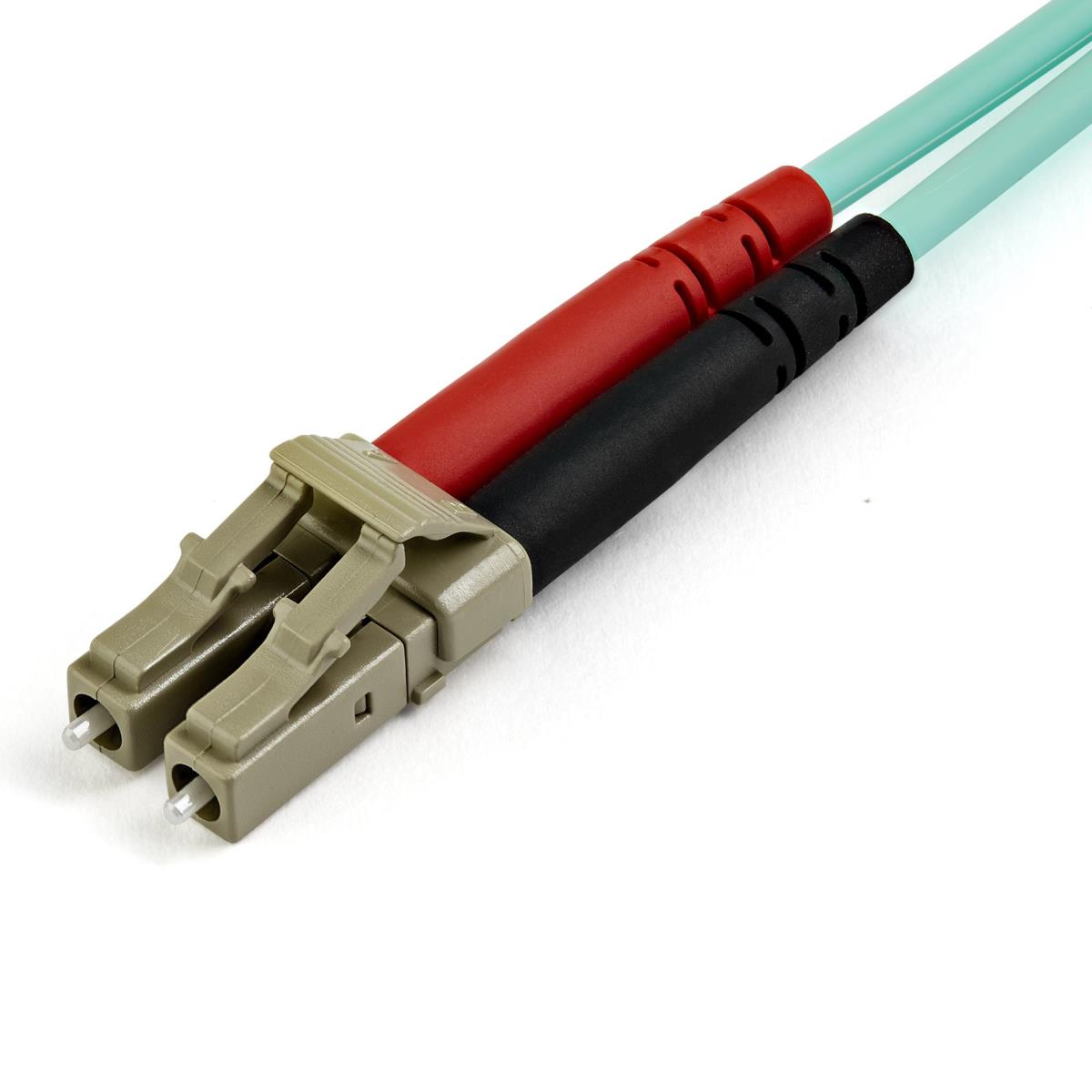

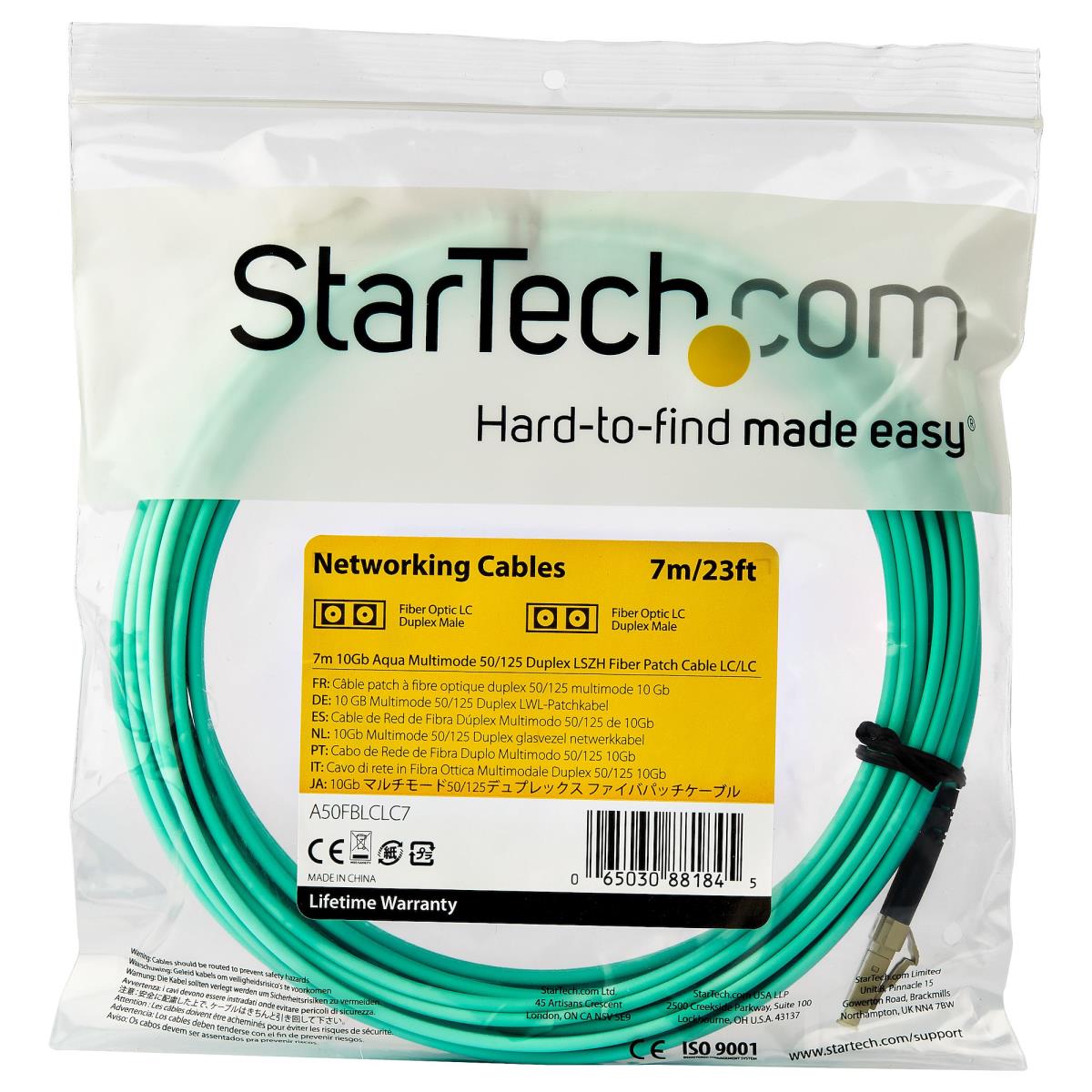

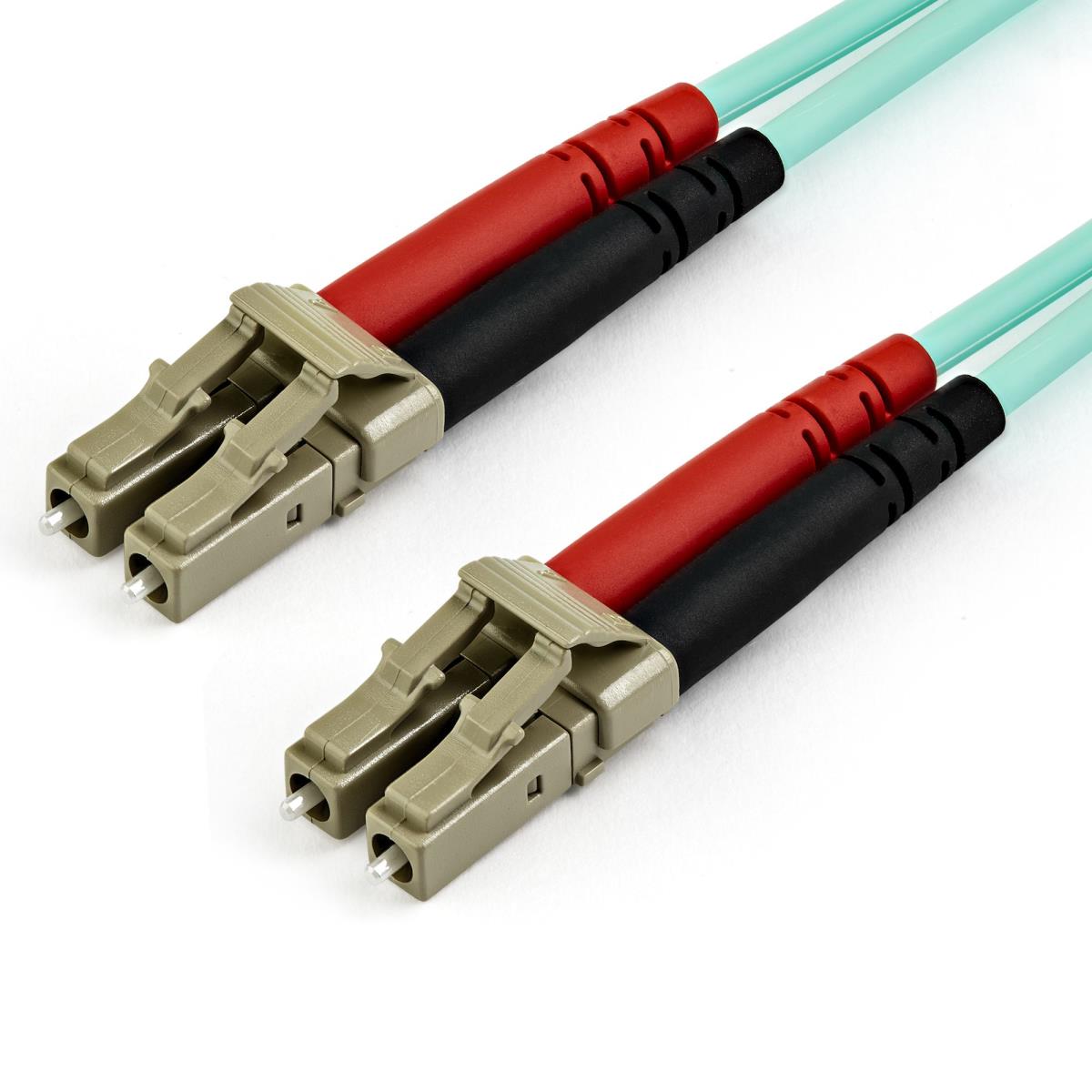

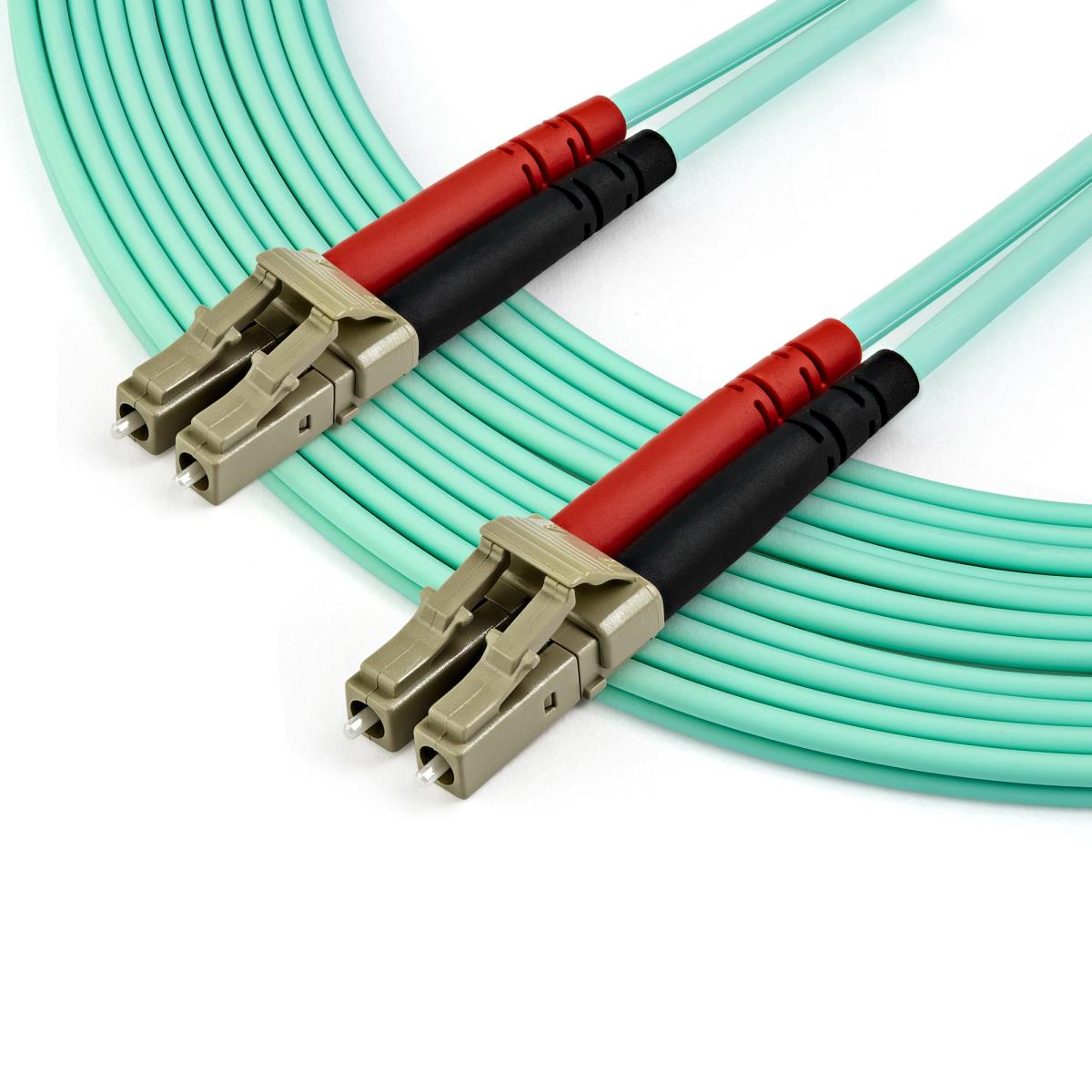

7M OM3 FIBER OPTIC PATCH CORD

Introduction

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features
Fibre optic typeOM3
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable length7 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate100 Gbit/s
Wavelengths supported850 nm
Product colourAqua colour
Connector 2 genderMale
Connector 1 genderMale
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Harmonized System (HS) code85447000
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight96 g
Cable length7 m
Package width198 mm
Package depth164 mm
Package height28 mm
Package weight106 g
Packaging data
Package width198 mm
Package depth164 mm
Package height28 mm
Package weight106 g
Quantity per pack1 pc(s)
Packaging content
Quantity per pack1 pc(s)
Technical details
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable length7 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Doesn't containHalogen
Compliance certificatesRoHS, CE
Data transmission
Data transfer rate100 Gbit/s
Logistics data
Quantity per pack1 pc(s)
Master (outer) case width406 mm
Master (outer) case length414 mm
Master (outer) case height442 mm
Products per master (outer) case120 pc(s)
Harmonized System (HS) code85447000
