EU Product - Patchkabel Ultraflex, Cat.6A, S/FTP, grau, 1,5 m
Introduction

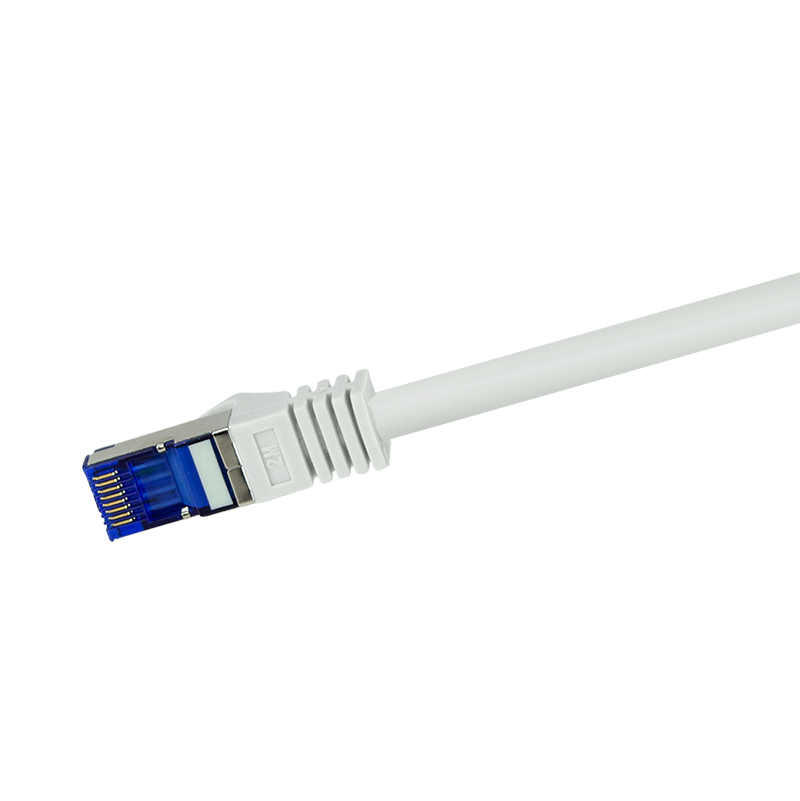

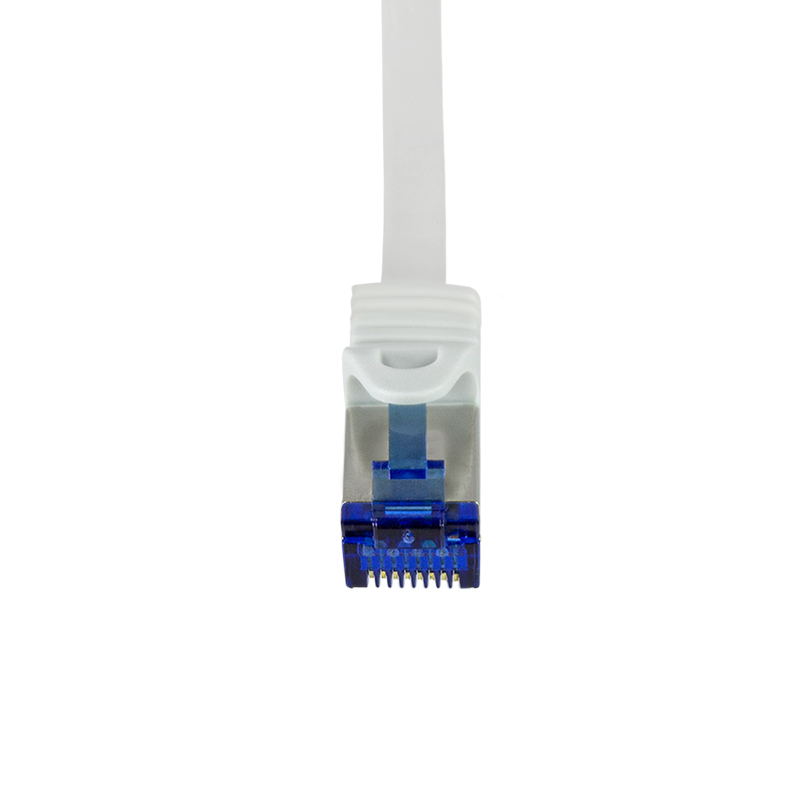

Patch cable Ultraflex, Cat.6A, S/FTP, grey, 1.5 m" from LogiLink Professional
The certified LogiLink Cat.6A patch cable is ideal for data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz. The jacket is halogen-free and flame retardant, the copper wires are shielded in pairs, the overall shield is made of copper braid. The shielded RJ45 plugs come with an overmoulded slim strain relief and snagless design.
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Connector shield material | Copper alloy |
| Conductor material | Copper |
| Molded cable boot | Yes |
| Frequency | 500 MHz |
| AWG wire size | 26/7 |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable class | Ea |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 1.5 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Fire-resistant | Yes |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | ISO11801 Channel Class EA EN50173 & ANSI/TIA 568C.2 IEC 61034 IEC 60754-2 IEC 60332-1-2 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | ISO11801 Channel Class EA EN50173 & ANSI/TIA 568C.2 IEC 61034 IEC 60754-2 IEC 60332-1-2 |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable class | Ea |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 1.5 m |
| Doesn't contain | Halogen |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
