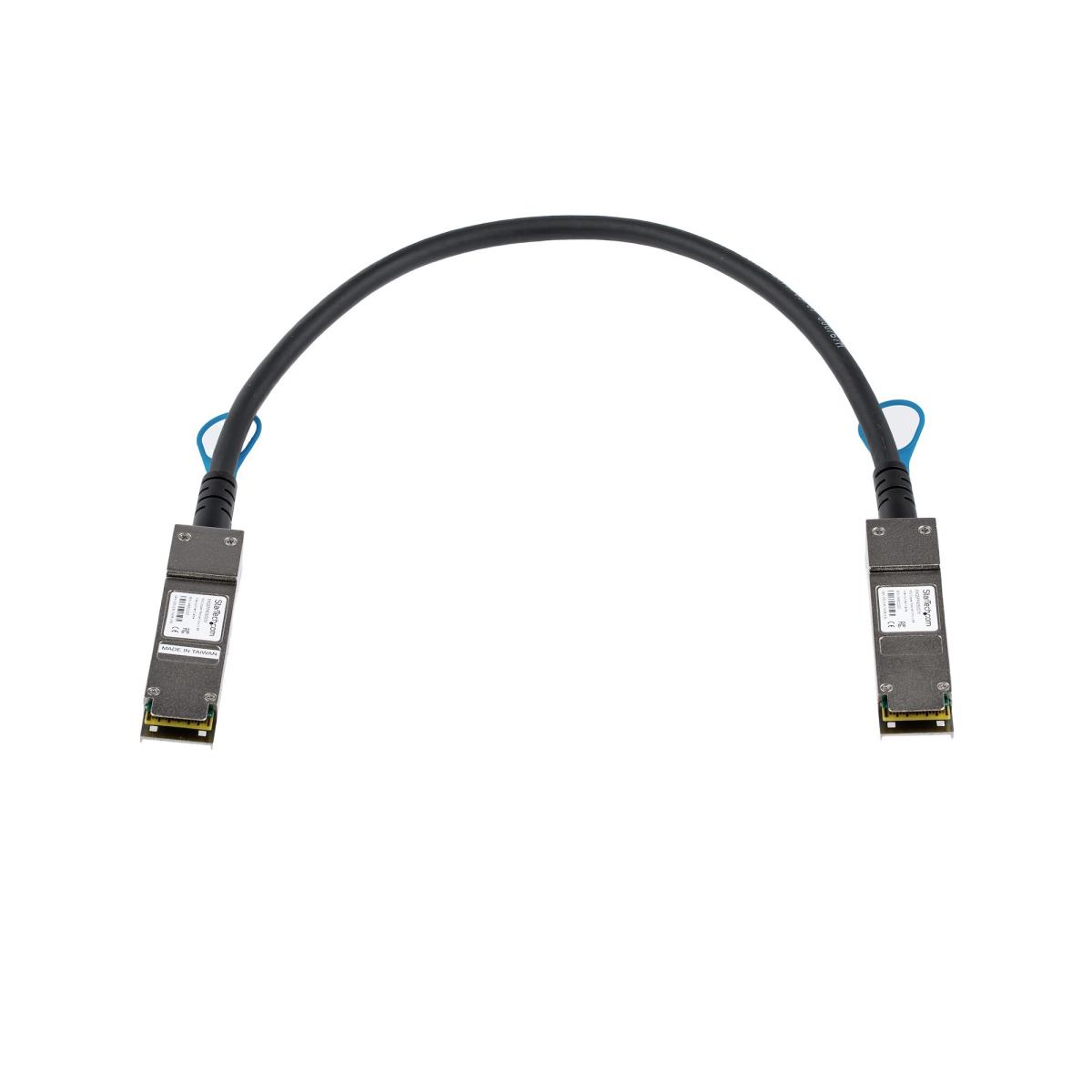

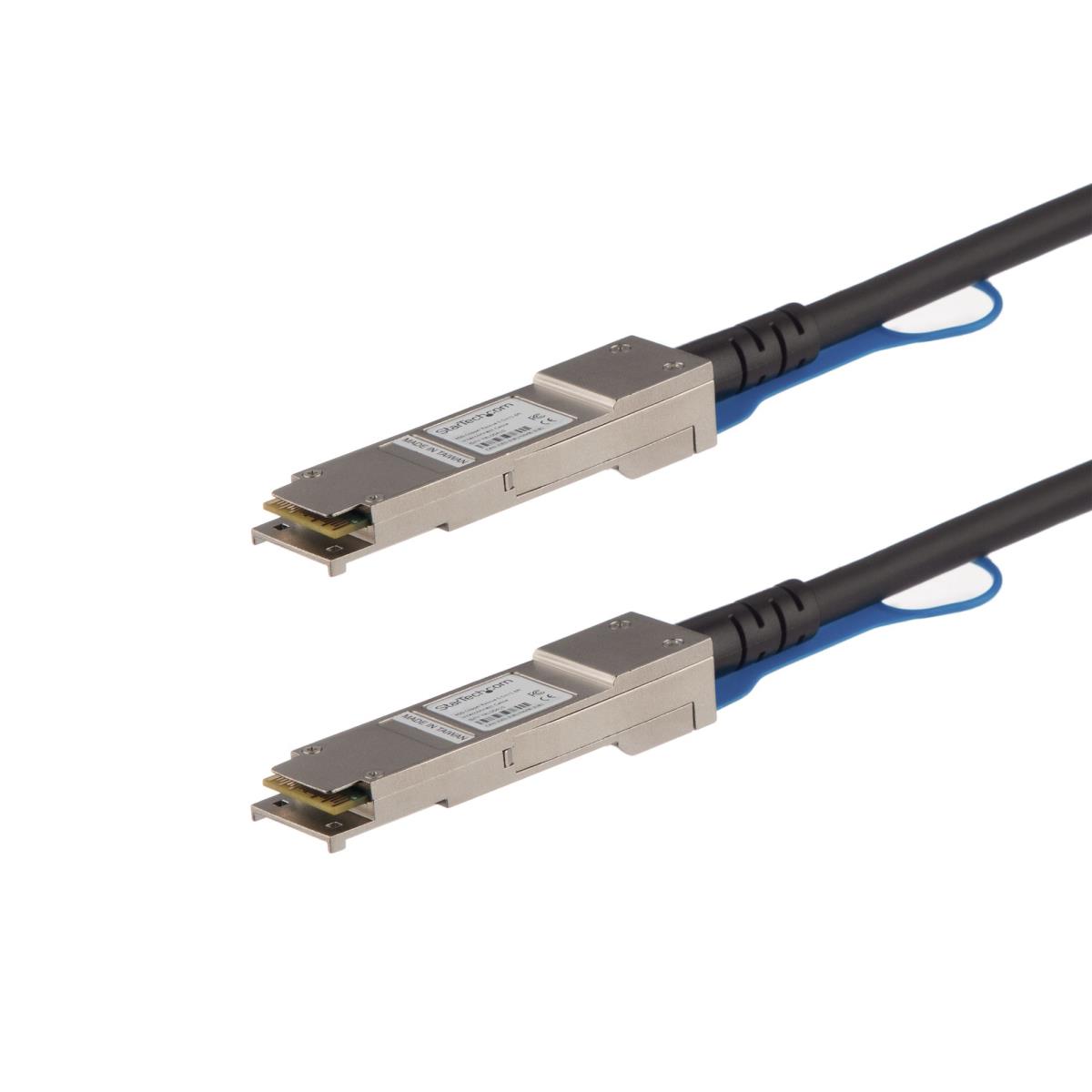

0.5m QSFP+ DAC Cable
Introduction
Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty
The EXQSFP4050CM is a Juniper EX-QSFP-40GE-DAC50CM compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Juniper® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Features | |
|---|---|
| Connector gender | Male/Male |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 1 | QSFP+ |
| Connector 2 | QSFP+ |
| Cable length | 0.5 m |
| Data transfer rate | 40 Gbit/s |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Plug and Play | Yes |
| Data transfer rate | 40000 Mbit/s |
| InfiniBand protocol | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Certification | CE, FCC, REACH |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 100 g |
| Cable length | 0.5 m |
| Package width | 248 mm |
| Package depth | 212 mm |
| Package height | 21 mm |
| Package weight | 116 g |
| Packaging data | |
| Package width | 248 mm |
| Package depth | 212 mm |
| Package height | 21 mm |
| Package weight | 116 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 1 | QSFP+ |
| Connector 2 | QSFP+ |
| Cable length | 0.5 m |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 40 Gbit/s |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84733080 |
