Cat6a U-UTP Network Cable 4x2xAWG23 500m
Introduction

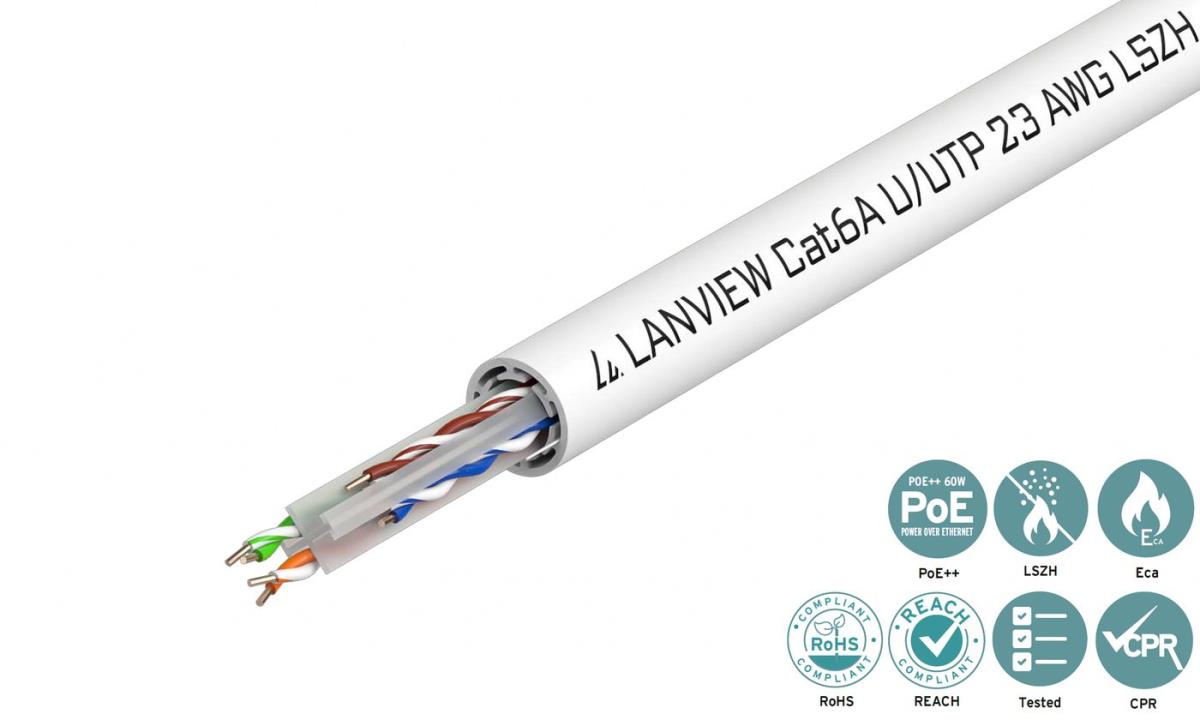

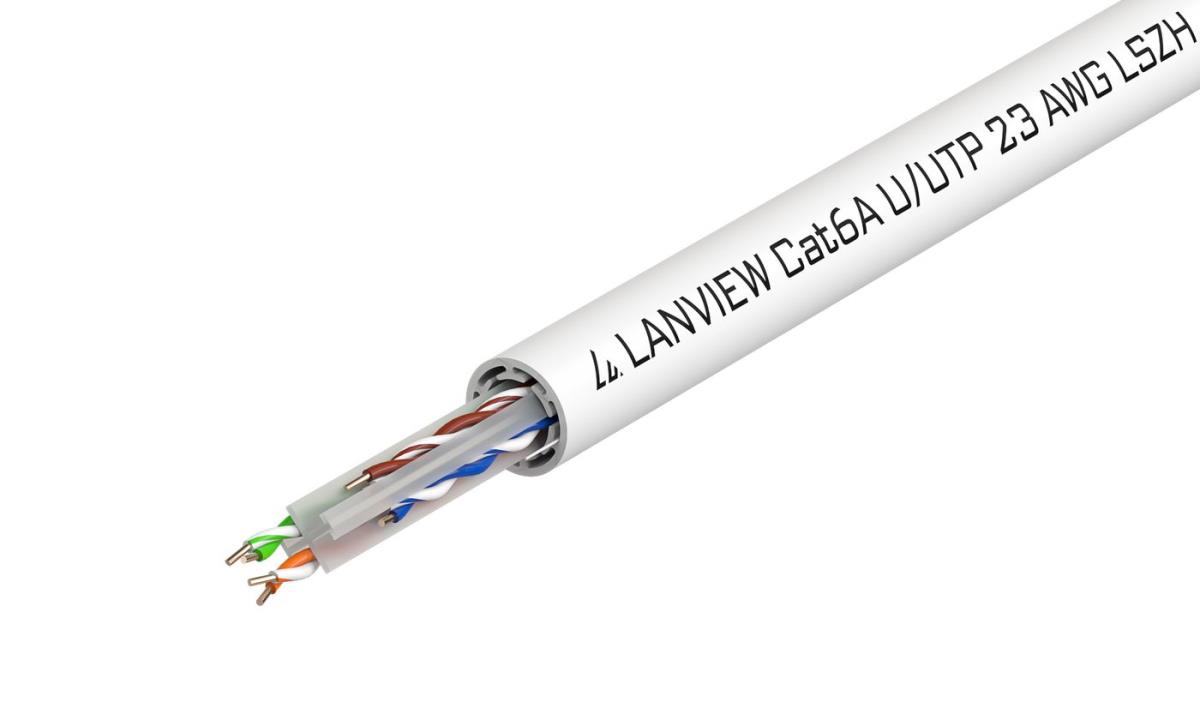

Lanview Cat6A Unshielded LSZH cables are enhanced performance cables and are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Tip: Please use our Lanview splitter tool for this cable: LVN231768
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 23 |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |

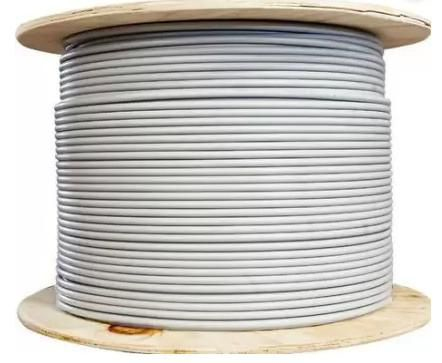

| Cable length | 500 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 300 mm |
| Height | 450 mm |
| Weight | 30 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 300 mm |
| Package height | 450 mm |
| Package weight | 34 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | White |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
