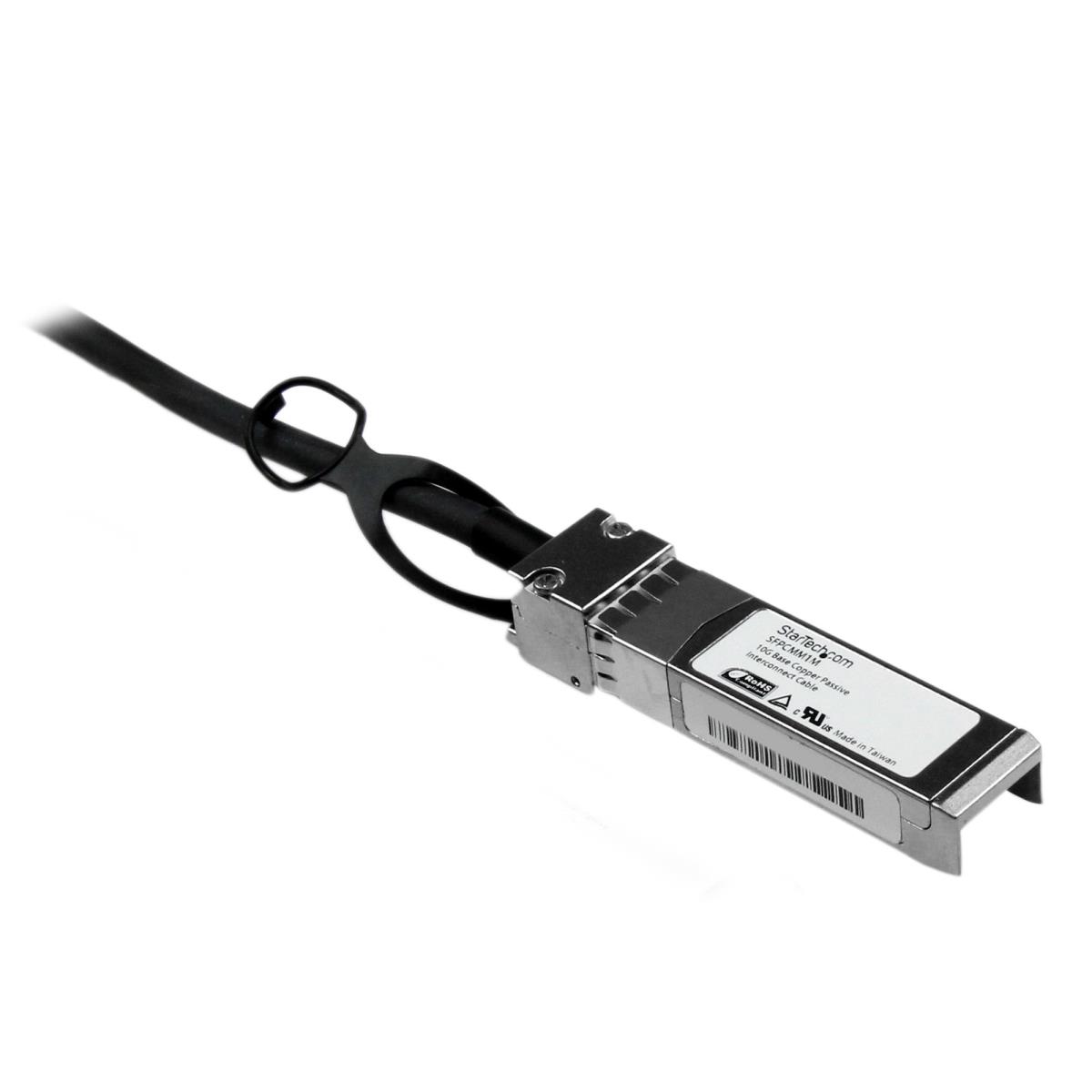

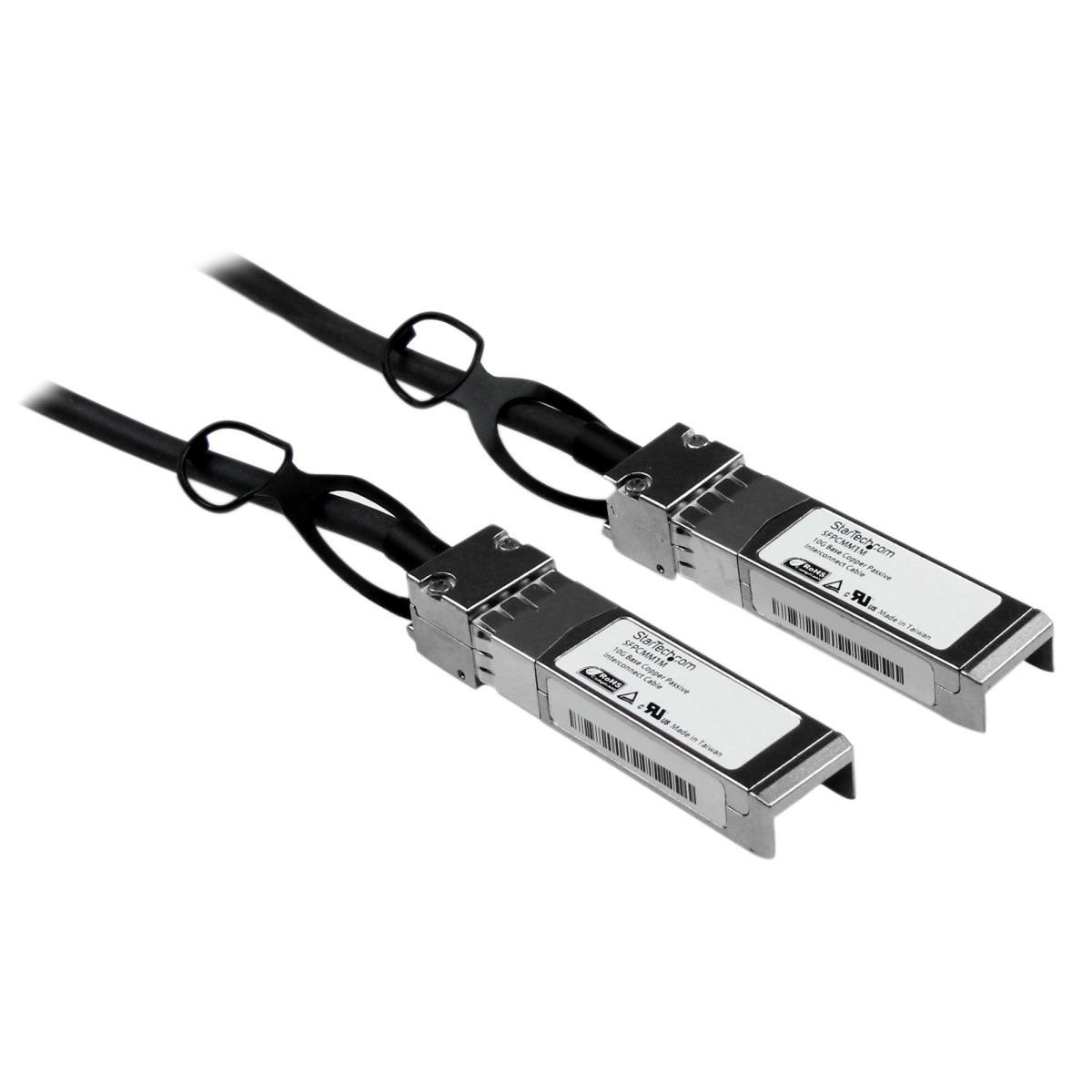

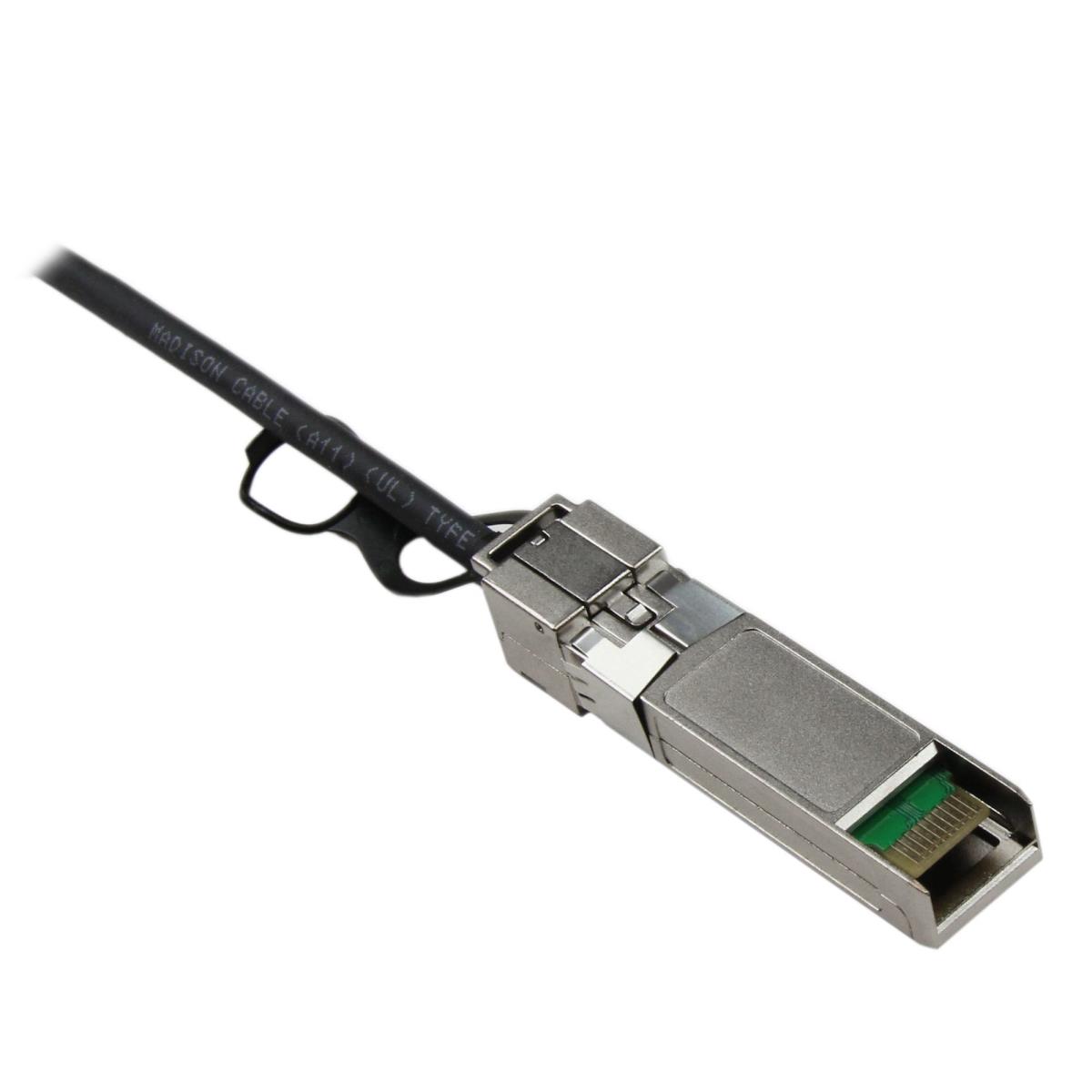

1M CISCO COMPATIBLE 10GBASE-CU
Introduction
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
The SFPCMM1M is a Cisco SFP-H10GB-CU1M compatible direct-attach copper SFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Features | |
|---|---|
| ARK ID | C |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 1 m |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transfer rate | 10000 Mbit/s |
| InfiniBand protocol | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Certification | CE |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 74 g |
| Cable length | 1 m |
| Package width | 197 mm |
| Package depth | 127 mm |
| Package height | 22 mm |
| Package weight | 83 g |
| Packaging data | |
| Package width | 197 mm |
| Package depth | 127 mm |
| Package height | 22 mm |
| Package weight | 83 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 1 m |
| ARK ID | C |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 353 mm |
| Master (outer) case length | 271 mm |
| Master (outer) case height | 309 mm |
| Products per master (outer) case | 60 pc(s) |
| Harmonized System (HS) code | 84733080 |
