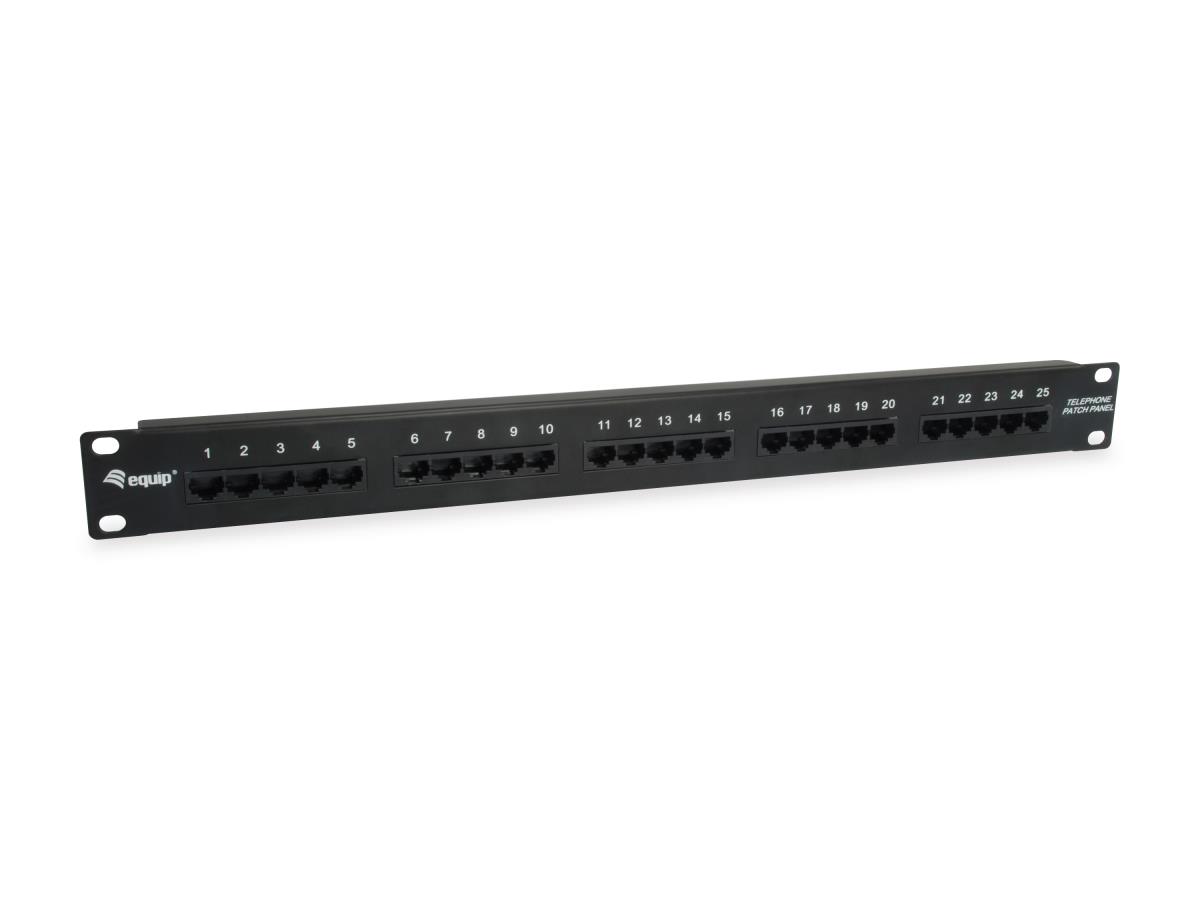

EU Product - 19" Patchpanel 25xRJ45 Cat3 UTP 1U ISDN RAL9005
Introduction

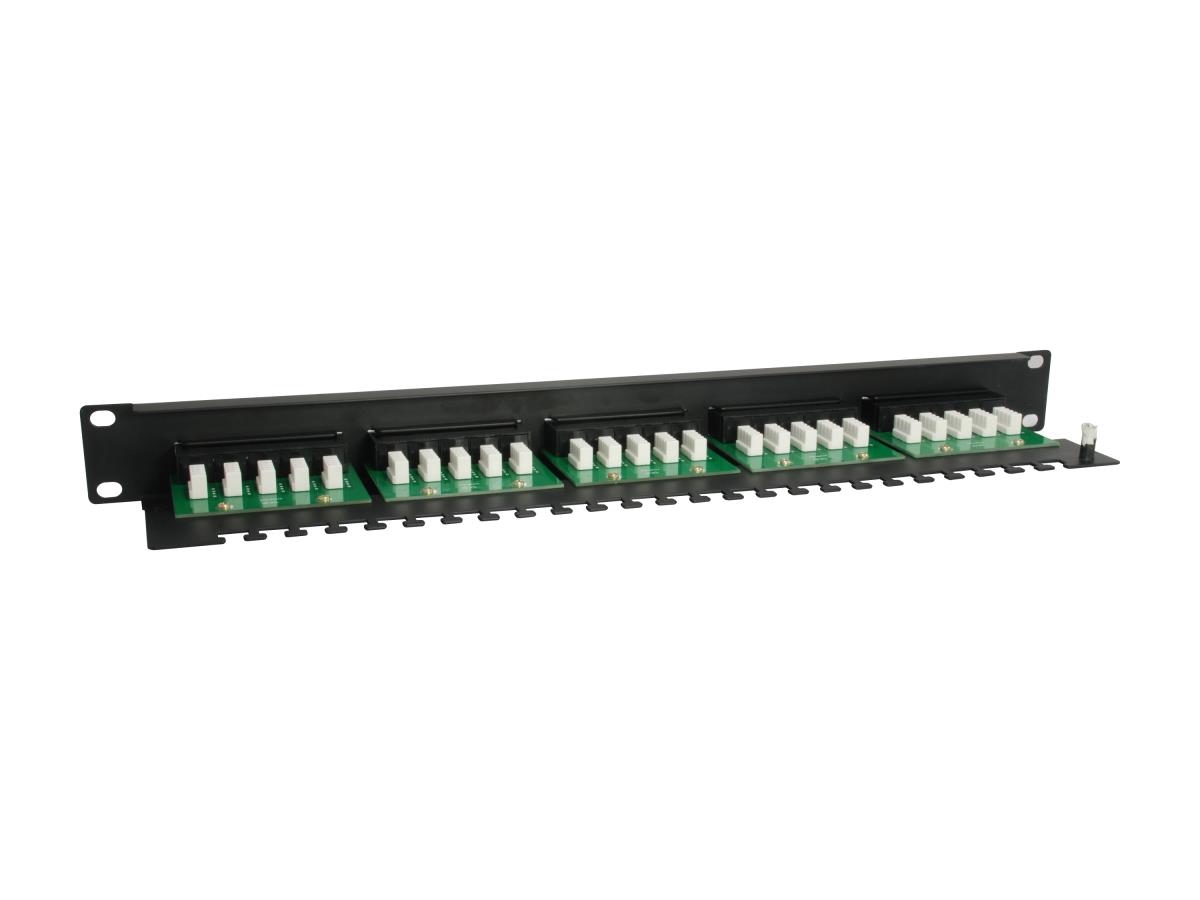

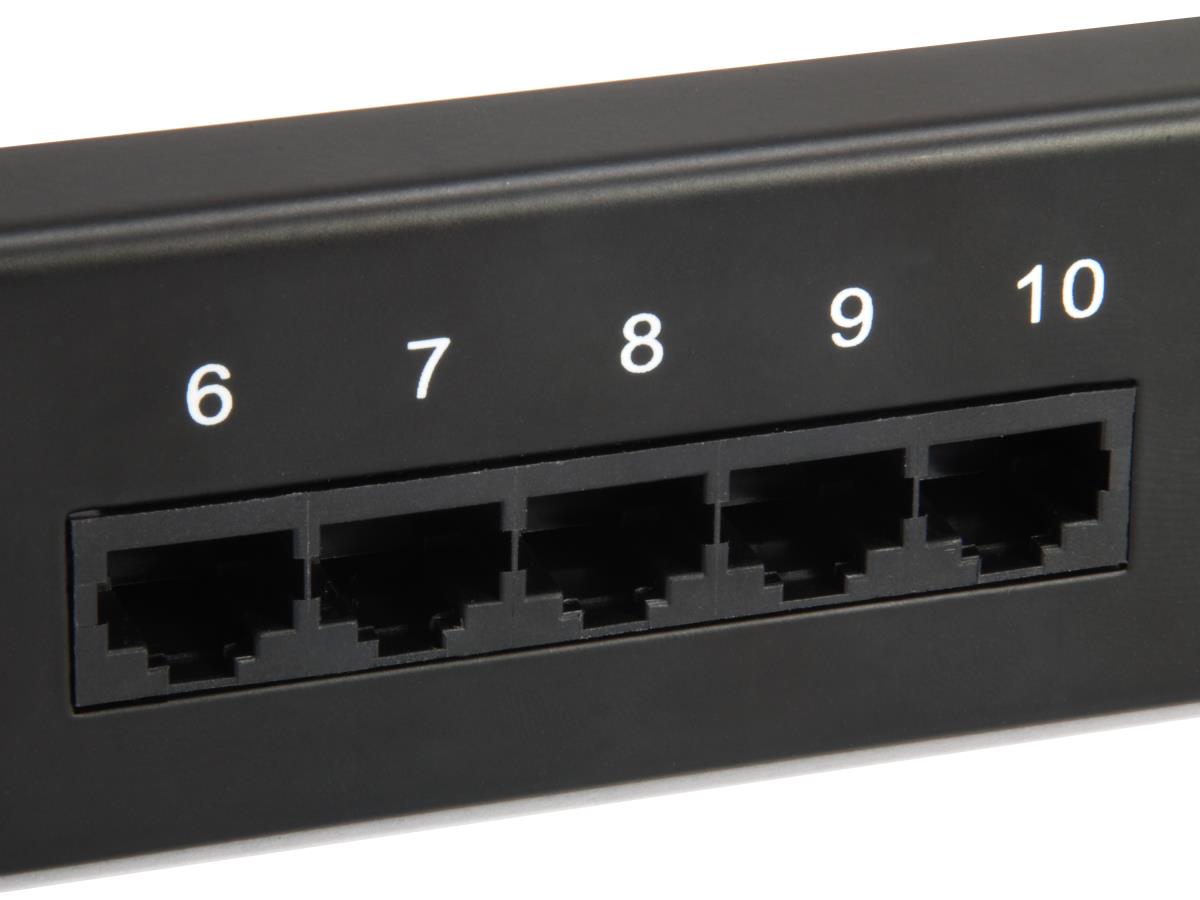

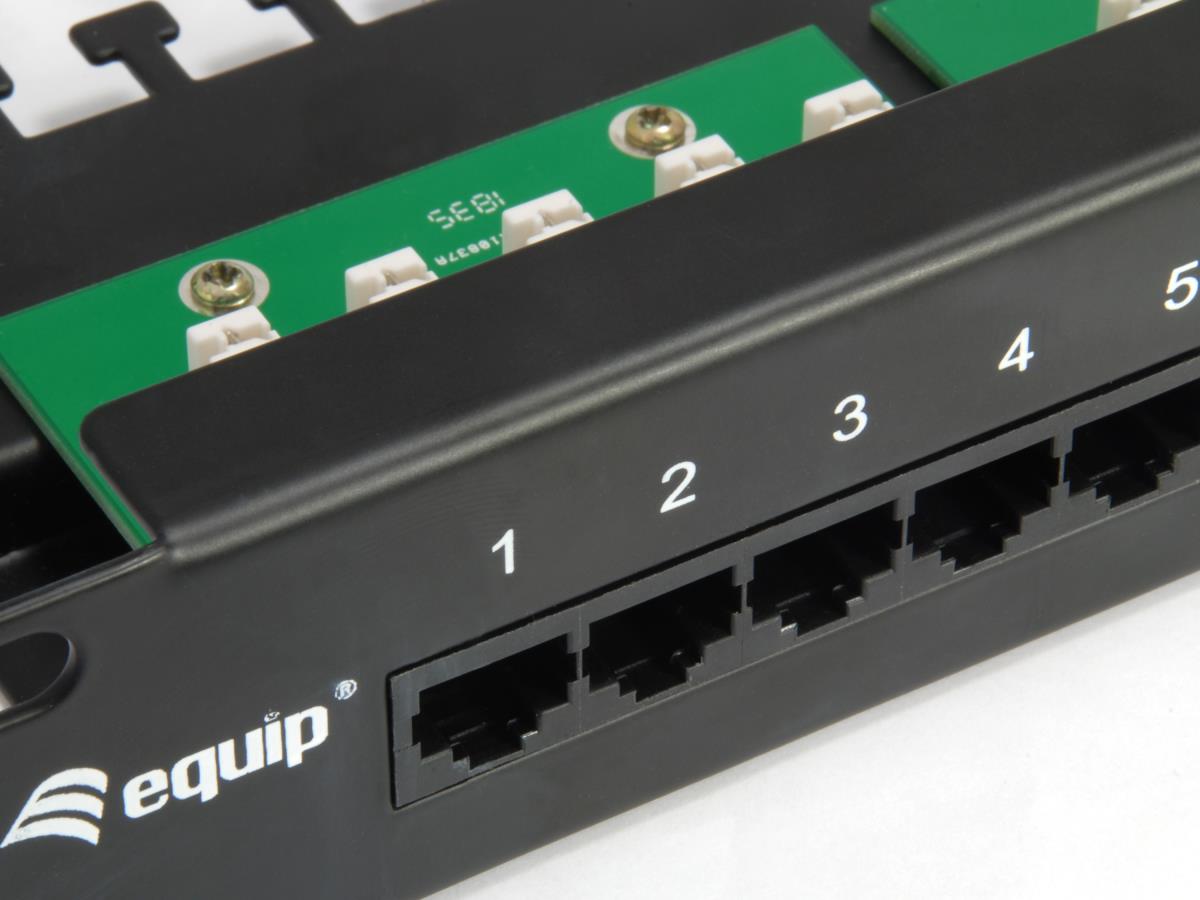

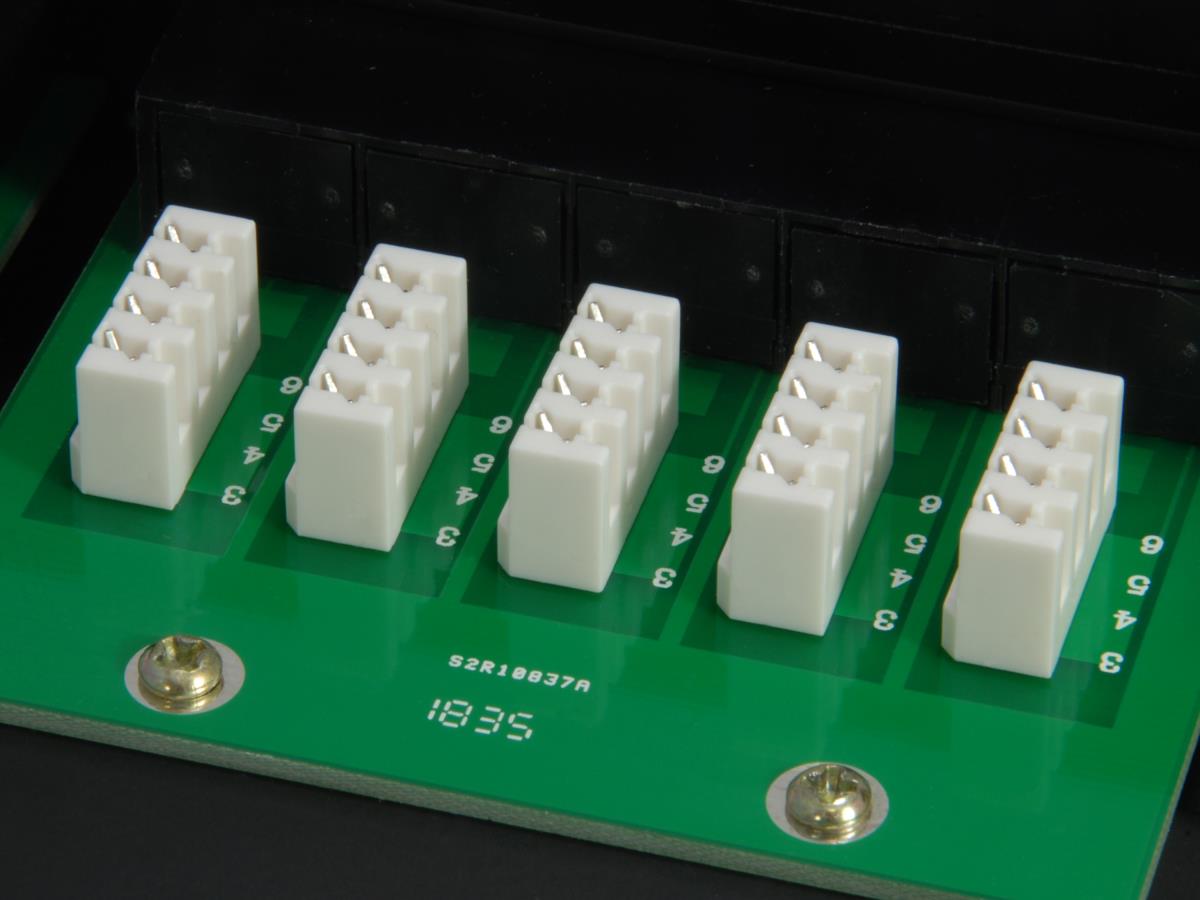

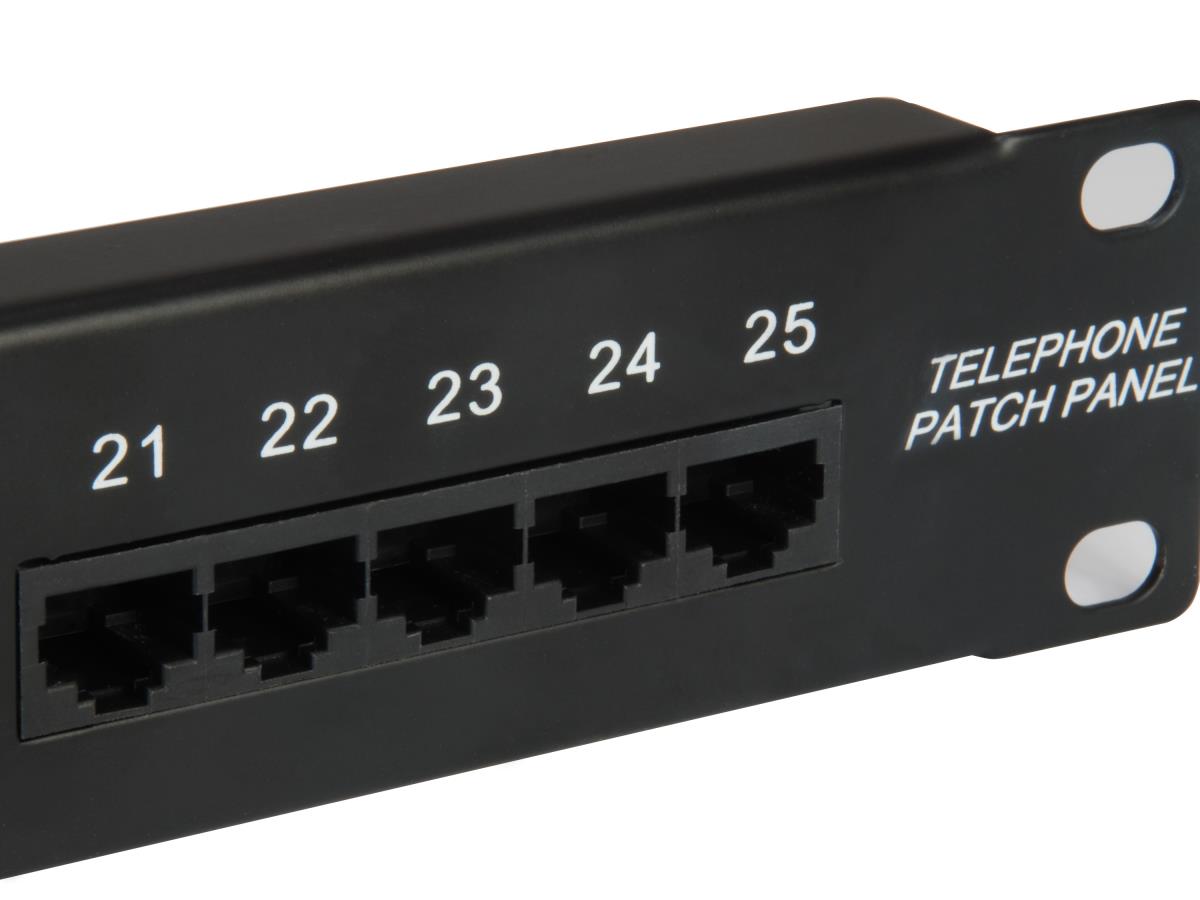

The equip® ISDN Patch Panel is a 19" 1U telephone distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Moreover, each port is marked with port number for recognition.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat3 |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE |
| Technical details | |
| Mounting | Rack mounting |
| Package width | 500 mm |
| Package height | 50 mm |
| Harmonized System (HS) code | 85371098 |
| Compliance certificates | RoHS |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE |
| Weight & dimensions | |
| Width | 483 mm |
| Weight | 1.05 kg |
| Height | 44.5 mm |
| Depth | 100 mm |
| Package weight | 1.2 kg |
| Package width | 500 mm |
| Package height | 50 mm |
| Packaging data | |
| Package weight | 1.2 kg |
| Package depth | 110 mm |
| Package width | 500 mm |
| Package height | 50 mm |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
