EU Product - 10" Patchpanel 12xRJ45 Cat6 FTP 1U 250MHz RAL7035
Introduction

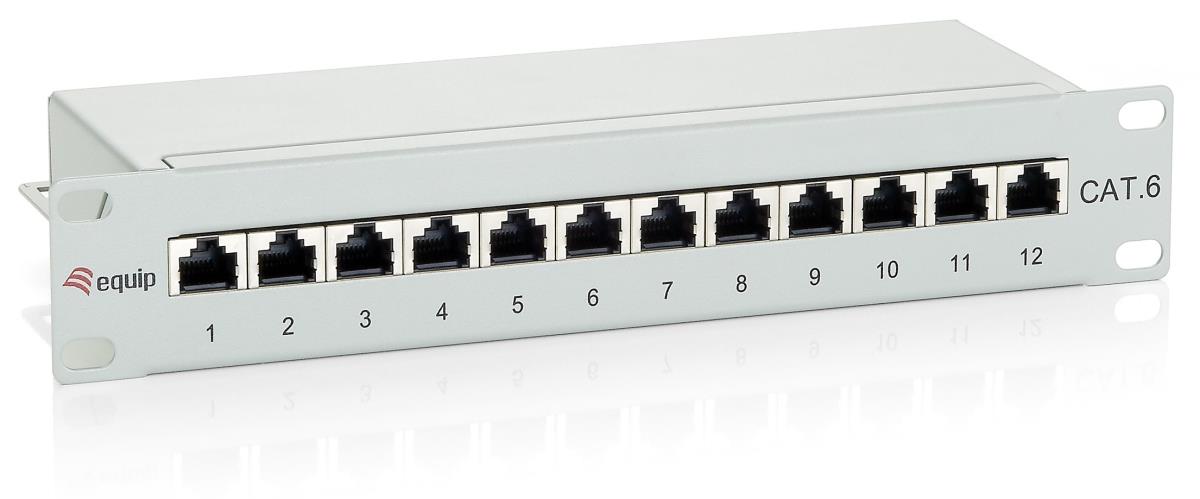

The equip® Patch Panel is a 10" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 12 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.
Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Cable types supported | Cat6 |
| Ports quantity | 12 |
| Connector(s) | RJ-45 |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Certification | ISO/IEC 11801, EN50173, ANSI/TIA/EIA 568 |
| Technical details | |
| Mounting | Rack mounting |
| Package type | Box |
| Operating temperature (T-T) | -40 - 80 °C |
| Package width | 175 mm |
| Package height | 282 mm |
| Harmonized System (HS) code | 85371098 |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Certification | ISO/IEC 11801, EN50173, ANSI/TIA/EIA 568 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Colour | |
| Product colour | Grey |
| Certificates | |
| Certification | ISO/IEC 11801, EN50173, ANSI/TIA/EIA 568 |
| Weight & dimensions | |
| Width | 44 mm |
| Weight | 950 g |
| Height | 239 mm |
| Depth | 109 mm |
| Package weight | 1.05 kg |
| Package width | 175 mm |
| Package height | 282 mm |
| Packaging data | |
| Package weight | 1.05 kg |
| Package type | Box |
| Package depth | 55 mm |
| Package width | 175 mm |
| Package height | 282 mm |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
| Packaging content | |
| Package type | Box |
