EU Product - 19" Patchpanel 48xRJ45 Cat6 FTP 1U 250MHz RAL7035
Introduction

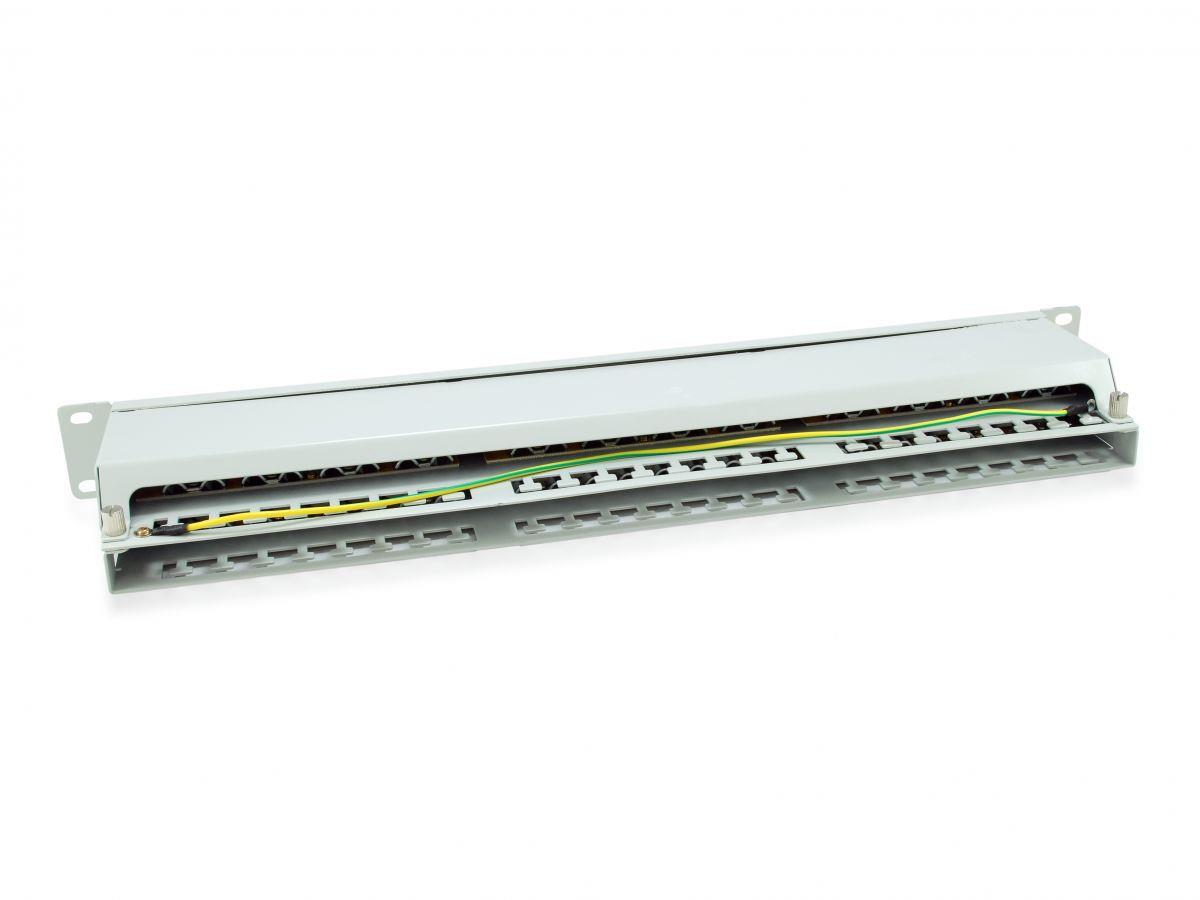

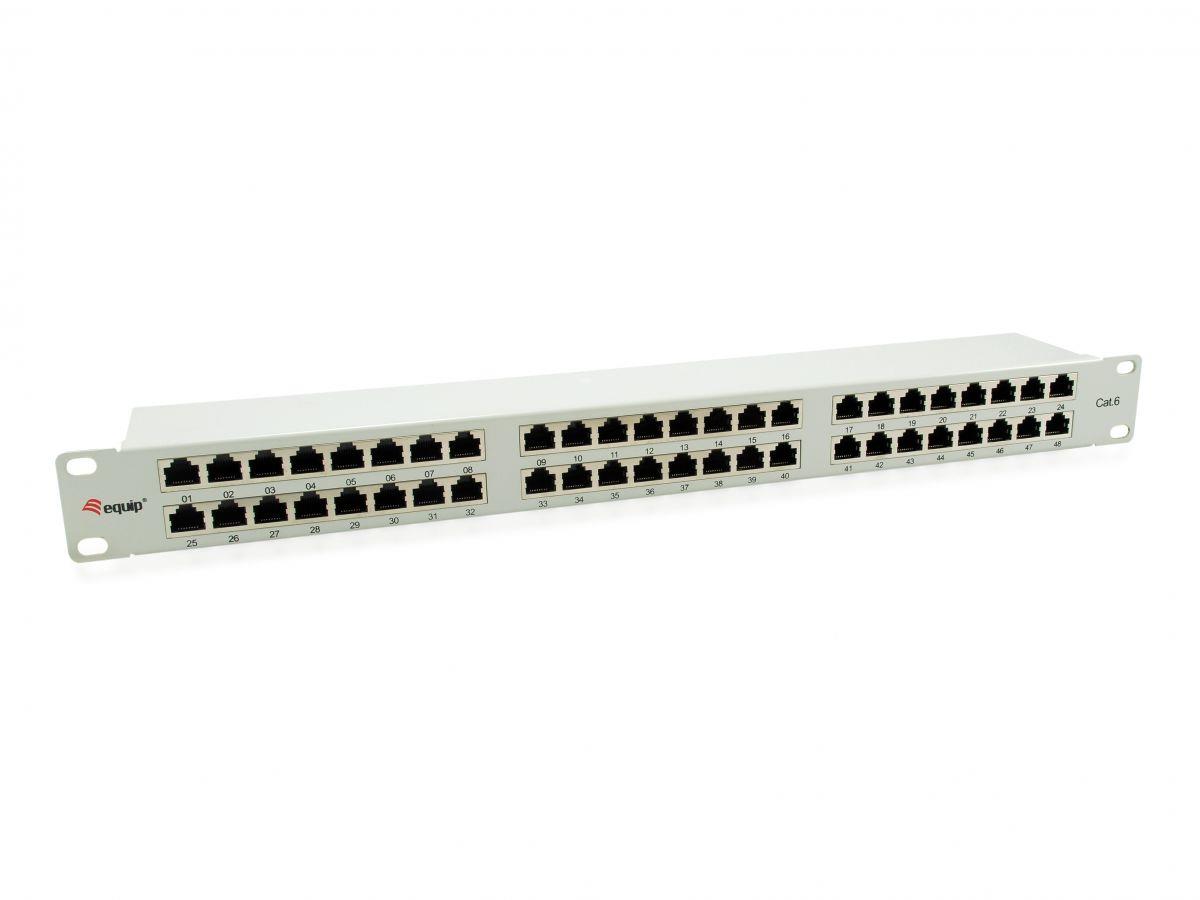

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 48 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition
Specifications
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat6 |
| Ports quantity | 48 |
| Connector(s) | RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Metal |
| Product colour | Grey |
| Technical details | |
| Mounting | Rack mounting |
| Material | Metal |
| Compliance certificates | RoHS |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Metal |
| Product colour | Grey |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 482.6 mm |
| Weight | 1.65 kg |
| Height | 110.5 mm |
| Depth | 44.5 mm |
