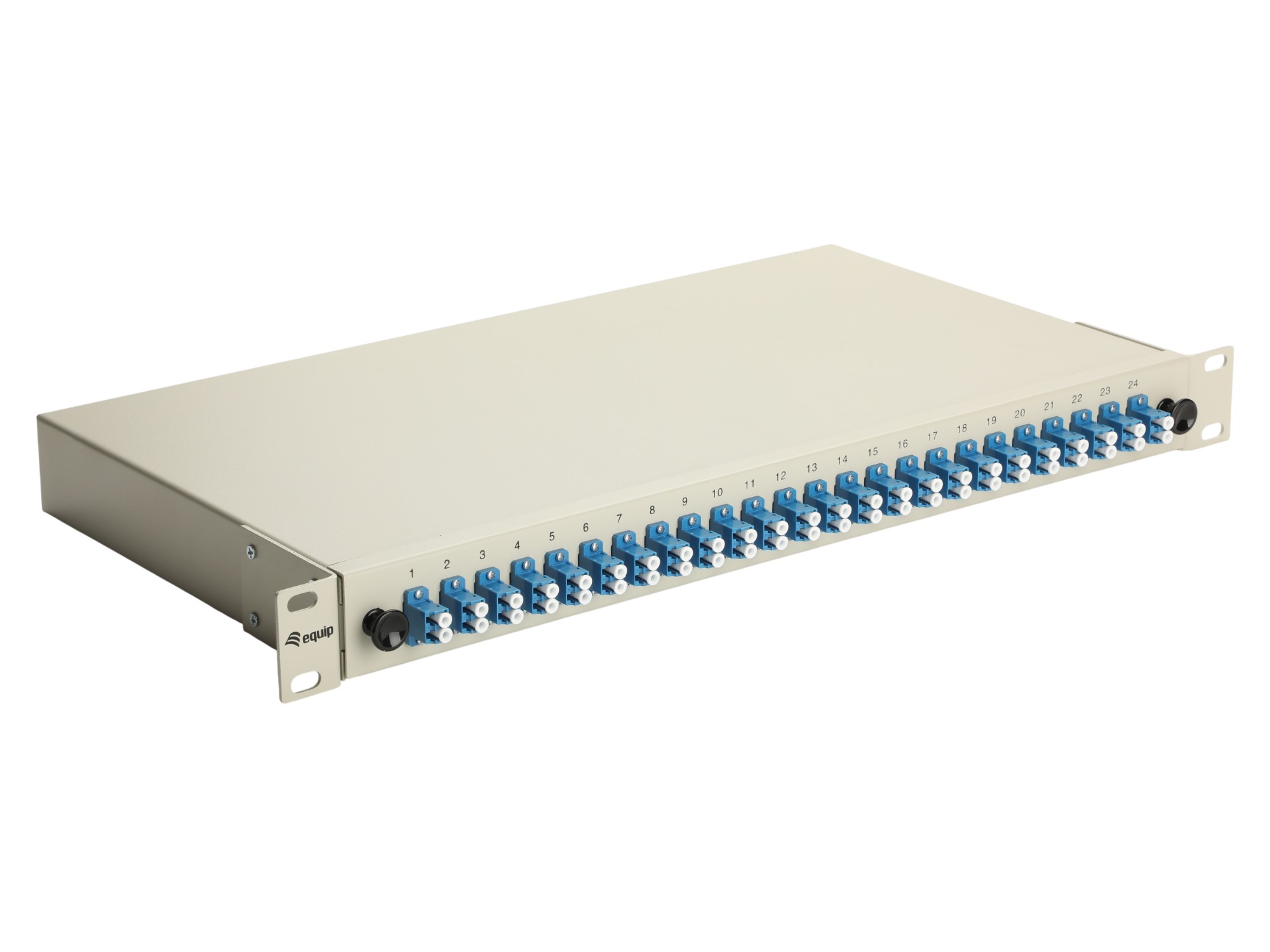

EU Product - LWL-Spleißkasten 24-Port LC-Duplex OS2 1U komplett gr
Introduction
The equip® 337211 24-Port Fiber Optic Splice Box is a compact and efficient solution for high-density fiber management in rack-mounted environments. Designed in a 1U form factor, it is equipped with LC duplex adapters and supports OS2 single-mode fiber for long-distance, high-performance network applications.
The enclosure provides organized cable routing, secure fiber splicing, and reliable protection for delicate fiber connections. Pre-equipped components simplify installation and reduce deployment time, making it ideal for data centers, telecom rooms, and enterprise networks. Its robust metal housing ensures durability, while the front-access design allows easy maintenance and quick access to connections.
This splice box delivers a professional and scalable solution for structured fiber optic cabling systems requiring stability, flexibility, and efficient space utilization.
Specifications
| Network | |
|---|---|
| Duplex | Yes |
| Ports quantity | 24 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber ports quantity | 24 |
| Fiber optic connector | LC (UPC) |
| Fibre optic type | OS2 |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Grey |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 485 mm |
| Weight | 2.4 kg |
| Height | 43.5 mm |
| Depth | 240 mm |
| Package weight | 2.77 kg |
| Package width | 510 mm |
| Package height | 55 mm |
| Packaging data | |
| Package weight | 2.77 kg |
| Package depth | 280 mm |
| Package width | 510 mm |
| Package height | 55 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Grey |
| Technical details | |
| Mounting | Rack mounting |
| Package width | 510 mm |
| Package height | 55 mm |
| Material | Steel |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Grey |
| Logistics data | |
| Master (outer) case gross weight | 14.8 kg |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 295 mm |
| Country of origin | China |
| Customs product code (TARIC) | 8536700099 |
