EU Product - LWL-Spleißkasten 12-Port SC-Duplex OM3 1U komplett sw

Introduction

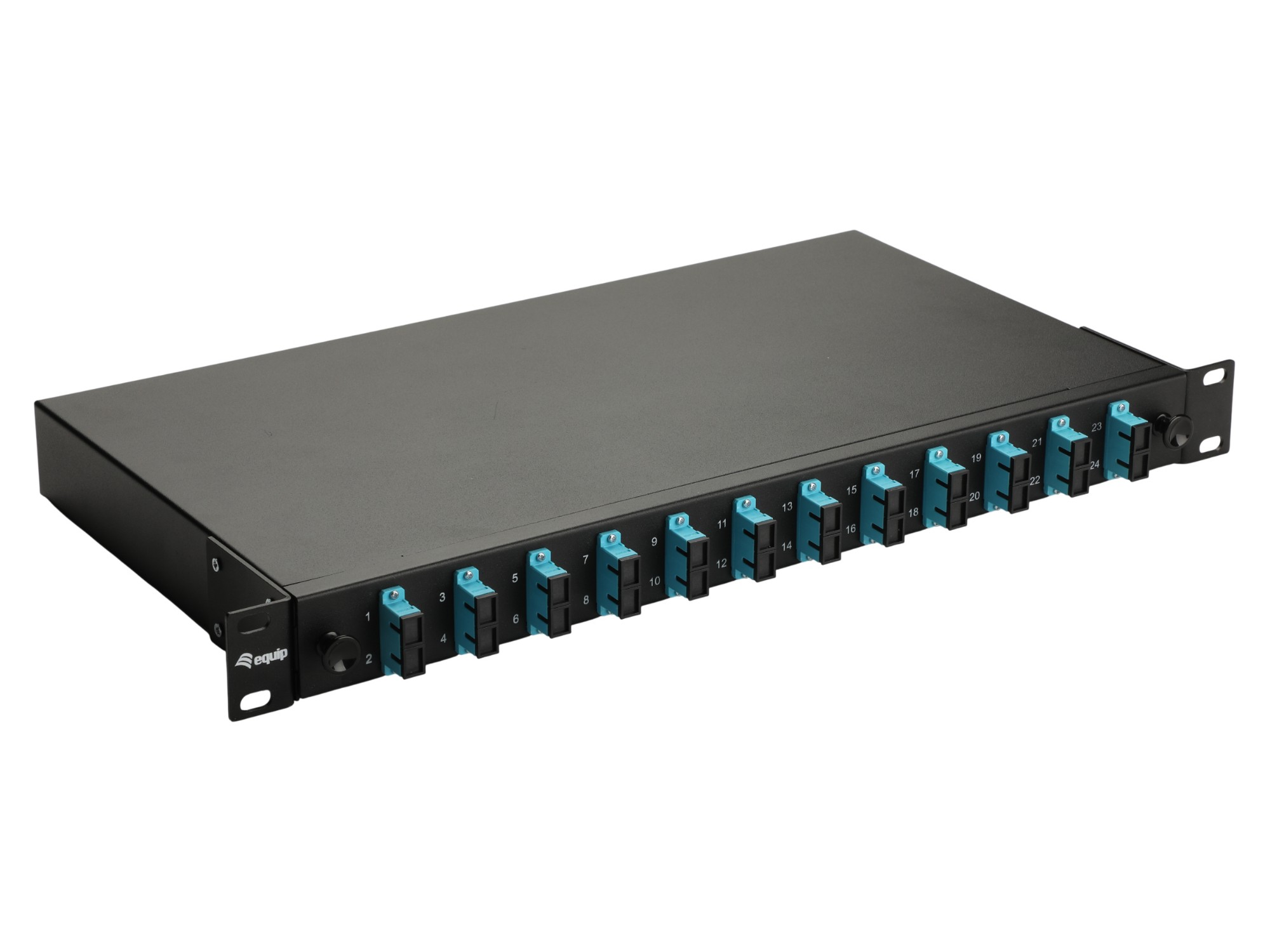

The equip® 337302 is a 12-port fiber optic splice box for high-density fiber management in 19" racks. The 1U metal enclosure comes fully equipped with SC Duplex couplers for OM3 multimode fiber.

It includes a sliding splice tray, coloured pigtails, fiber adapters, and a splice cassette with cover, so it is ready to terminate and protect fibre on installation. A robust steel housing and front-access design make routing, splicing, and maintenance straightforward.

Built for high-bandwidth short-reach multimode links in data centers, telecom rooms, and enterprise networks. Supplied with 4 sets of M6 screws and nuts; 483 × 243 × 44 mm; finished in black (RAL 9005).

Specifications

Network
Duplex	Yes
Ports quantity	12
Multi-mode fiber (MMF) supported	Yes
Fiber ports quantity	12
Fiber optic connector	SC
Fibre optic type	OM3
Design
Mounting	Rack mounting
Rack capacity	1U
Material	Steel
Product colour	Black
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	485 mm
Weight	2.4 kg
Height	43.5 mm
Depth	240 mm
Package weight	2.77 kg
Package width	510 mm
Package height	55 mm
Packaging data
Package weight	2.77 kg
Package depth	280 mm
Package width	510 mm
Package height	55 mm
Features
Mounting	Rack mounting
Rack capacity	1U
Material	Steel
Product colour	Black
Technical details
Mounting	Rack mounting
Package width	510 mm
Package height	55 mm
Material	Steel
Compliance certificates	RoHS
Colour
Product colour	Black
Logistics data
Master (outer) case gross weight	14.8 kg
Products per master (outer) case	5 pc(s)
Master (outer) case width	520 mm
Master (outer) case length	295 mm
Master (outer) case height	295 mm
Country of origin	China
Customs product code (TARIC)	8536700099
