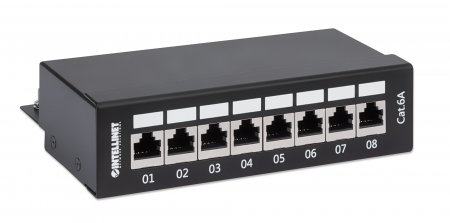

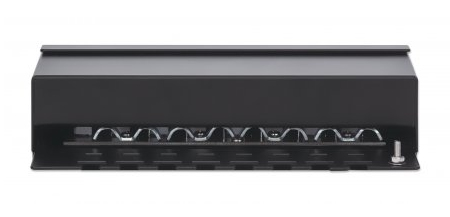

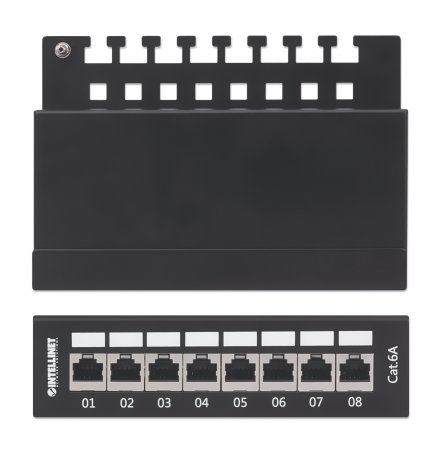

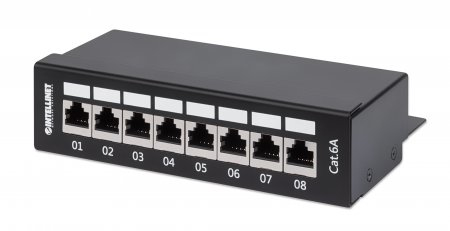

EU Product - 8-Port Cat6a Patchpanel FTP Desktop schwarz
Introduction
Cat6a Shielded Desktop Patch Panel — proper network connections, no rack or cabinet required
The Intellinet Network Solutions Cat6a Shielded Desktop Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Desktop Patch Panel adheres to current industry standards.
Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat6a |
| AWG wire size | 23/24/25/26 |
| Ports quantity | 8 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| Product colour | Black, Grey |
| Certification | CE FCC ISO/IEC 11801 ANSI/TIA |
| Certificates | |
| Certification | CE FCC ISO/IEC 11801 ANSI/TIA |
| Compliance certificates | CE, RoHS, UL |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | -40 - 70% |
| Storage temperature (T-T) | 10 - 90 °C |
| Weight & dimensions | |
| Width | 160 mm |
| Weight | 587 g |
| Height | 109 mm |
| Depth | 44 mm |
| Features | |
| Product colour | Black, Grey |
| Certification | CE FCC ISO/IEC 11801 ANSI/TIA |
| Technical details | |
| Operating temperature (T-T) | 10 - 60 °C |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Harmonized System (HS) code | 85371098 |
| Compliance certificates | CE, RoHS, UL |
| Colour | |
| Product colour | Black, Grey |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
