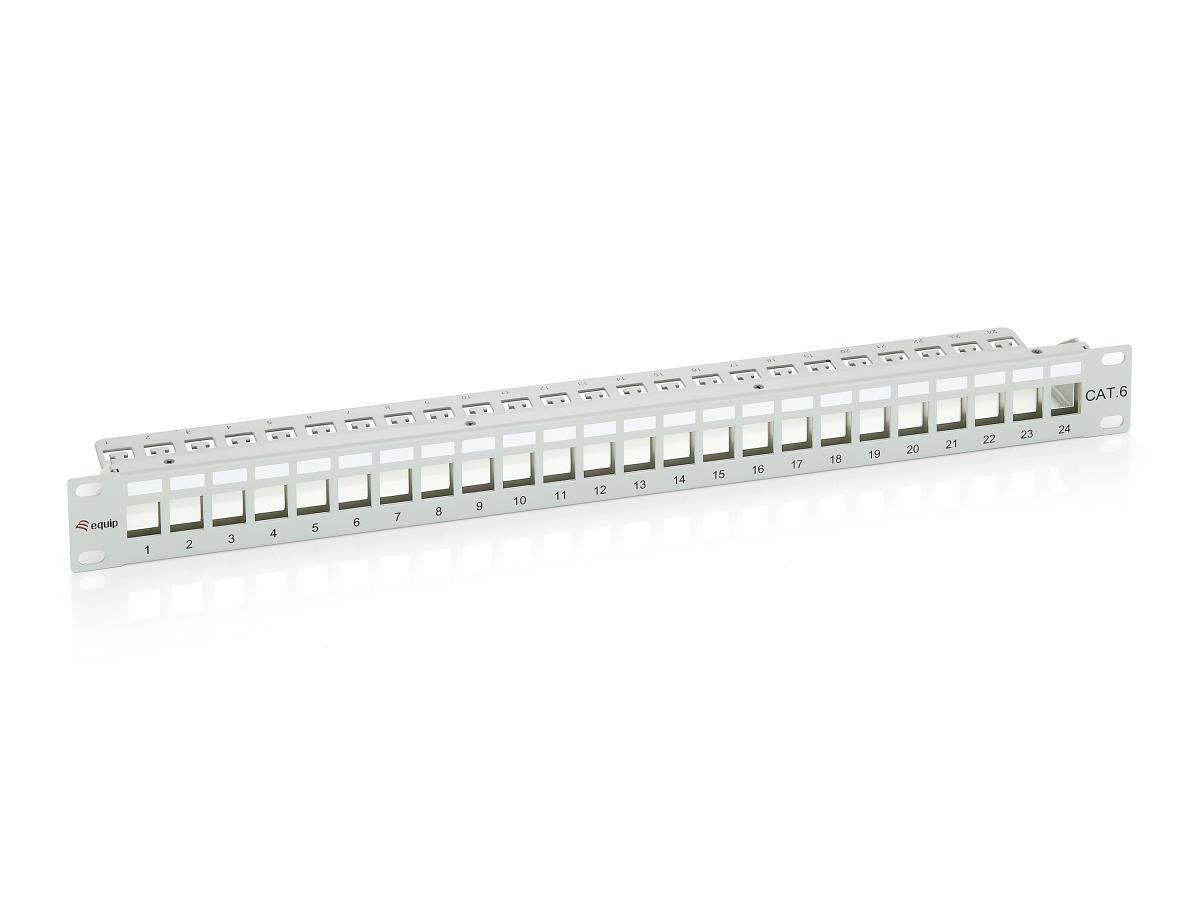

EU Product - 24-Por Keysone C.6
Introduction
The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 24 ports, this patch panel is recommended to connect with equip® shielded keystone jacks and cables to achieve outstanding performance. Moreover, each port is marked with port number for recognition.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat6 |
| AWG wire size | 18 |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Metal |
| Product colour | Grey |
| Technical details | |
| Mounting | Rack mounting |
| Package width | 110 mm |
| Package height | 500 mm |
| Material | Metal |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable management | Yes |
| Material | Metal |
| Product colour | Grey |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 44 mm |
| Weight | 850 g |
| Height | 483 mm |
| Depth | 91.5 mm |
| Package weight | 750 g |
| Package width | 110 mm |
| Package height | 500 mm |
| Packaging data | |
| Package weight | 750 g |
| Package depth | 50 mm |
| Package width | 110 mm |
| Package height | 500 mm |
| Logistics data | |
| Master (outer) case gross weight | 12 kg |
| Products per master (outer) case | 15 pc(s) |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 515 mm |
| Country of origin | China |
