EU Product - 19" Patchpanel 48xKeystones UTP 1U LSA/110 RAL9005
Introduction

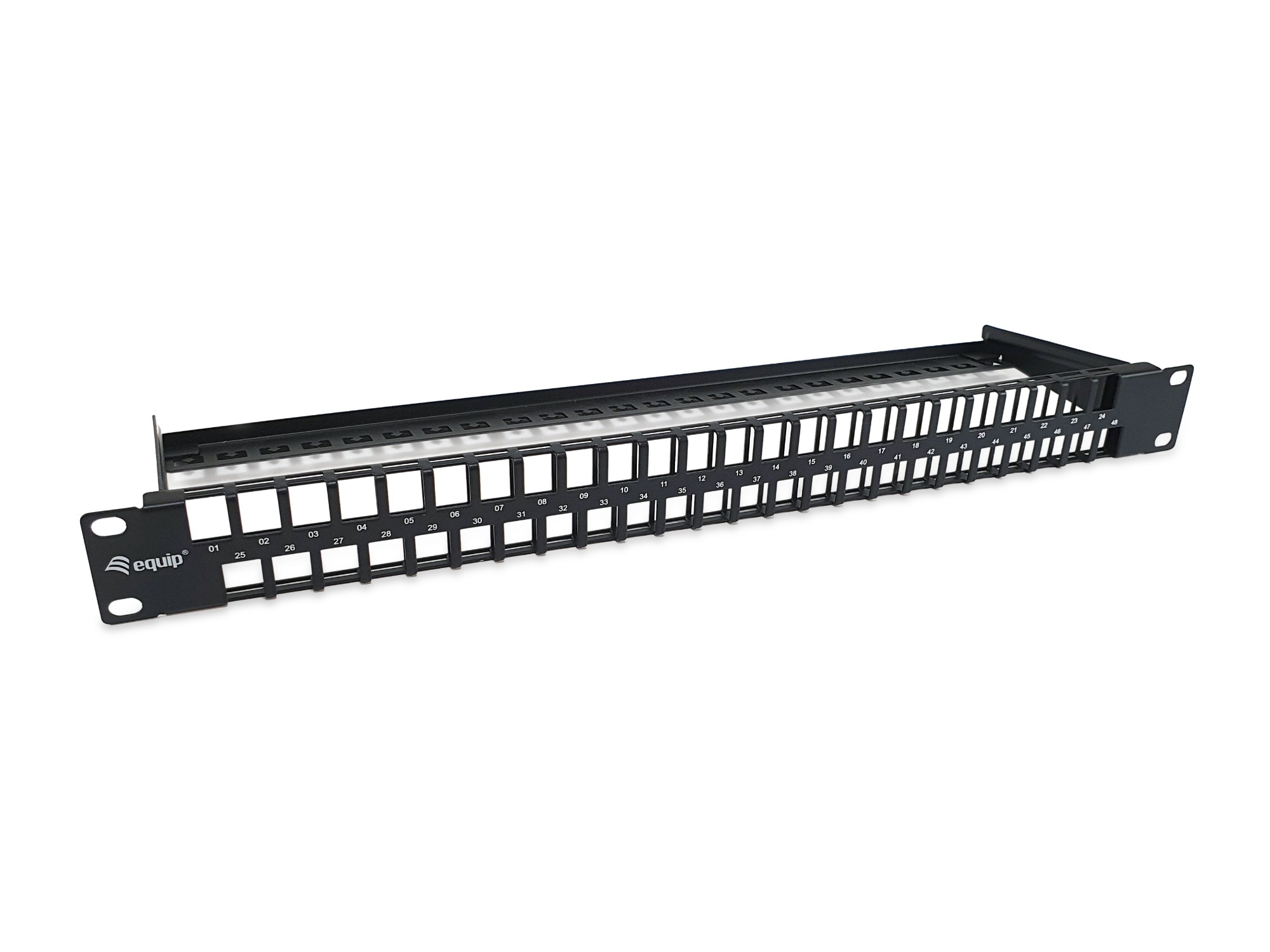

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 48 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat6 |
| Ports quantity | 48 |
| Connector(s) | RJ-45 |
| Design | |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Black |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 482.6 mm |
| Weight | 550 g |
| Height | 126.4 mm |
| Depth | 44.5 mm |
| Package weight | 630 g |
| Package width | 500 mm |
| Package height | 55 mm |
| Packaging data | |
| Package weight | 630 g |
| Package depth | 150 mm |
| Package width | 500 mm |
| Package height | 55 mm |
| Features | |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Package width | 500 mm |
| Package height | 55 mm |
| Material | Steel |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case gross weight | 6.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 320 mm |
| Country of origin | China |
