LEDBDM-5X5
Introduction

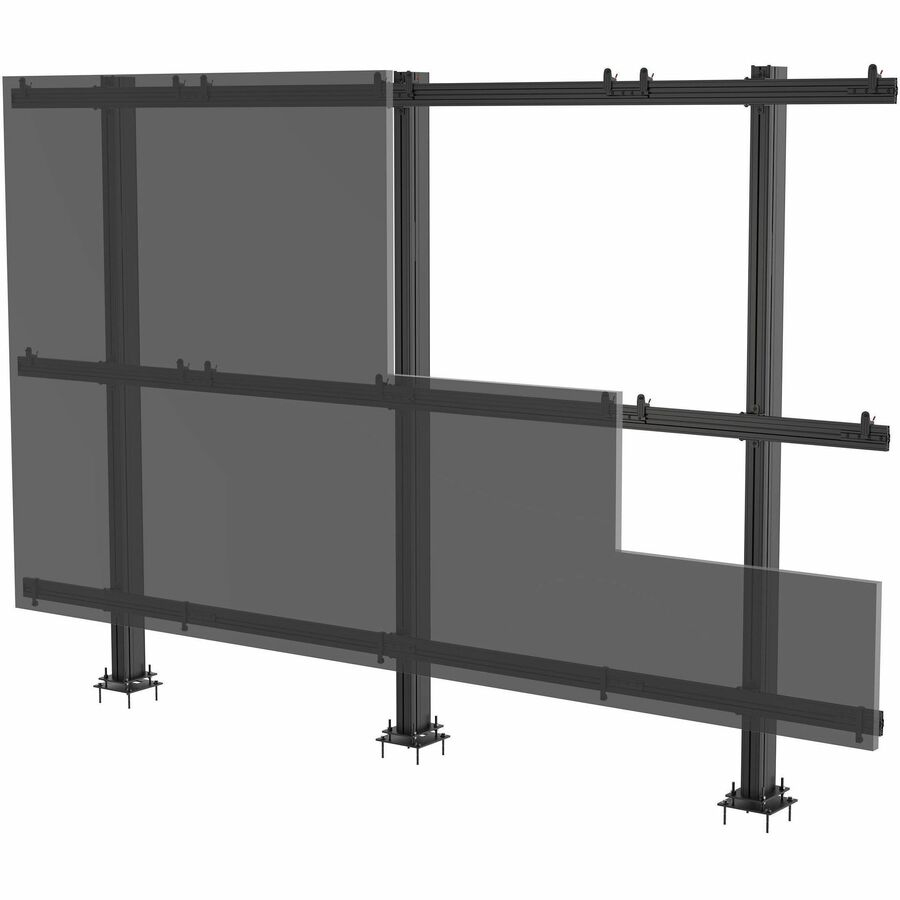

The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Bolt-Down Pedestal solution supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base allows precise micro-adjustments at all four corners to ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity | 396.89 kg |
| Number of displays supported | 25 |
| Mounting type | Floor |
| Maximum screen size | 109.2 cm (43") |
| Ergonomics | |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
| Width | 4799.8 mm |
| Depth | 208 mm |
| Height | 3043.9 mm |
| Weight | 91.6 kg |
| Technical details | |
| Number of displays supported | 25 |
| Mounting type | Floor |
| Orientation | Landscape/Portrait |
| Other features | |
| Depth adjustment range | 39.9 - 80 mm |
