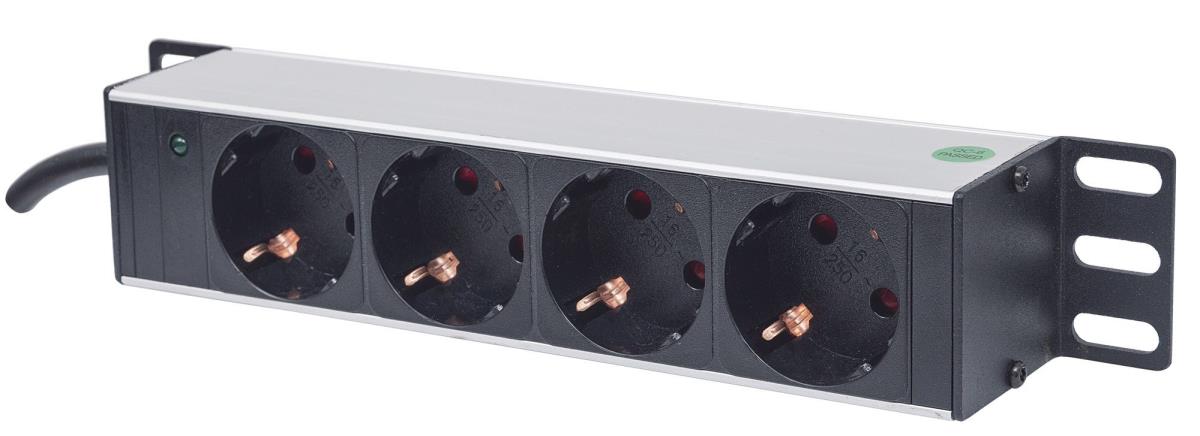

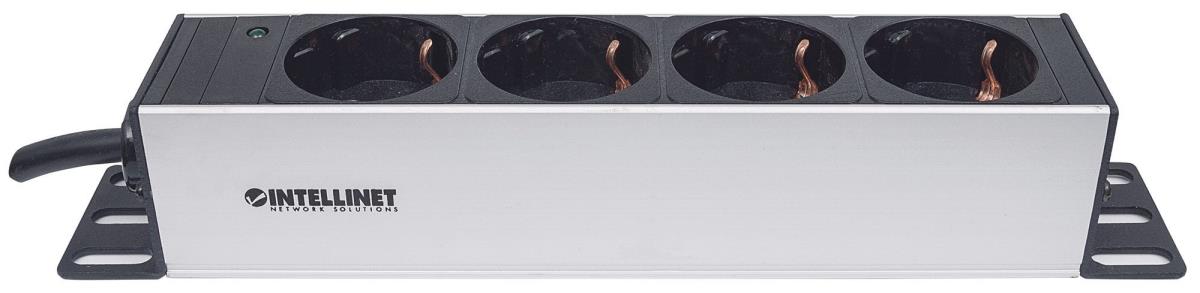

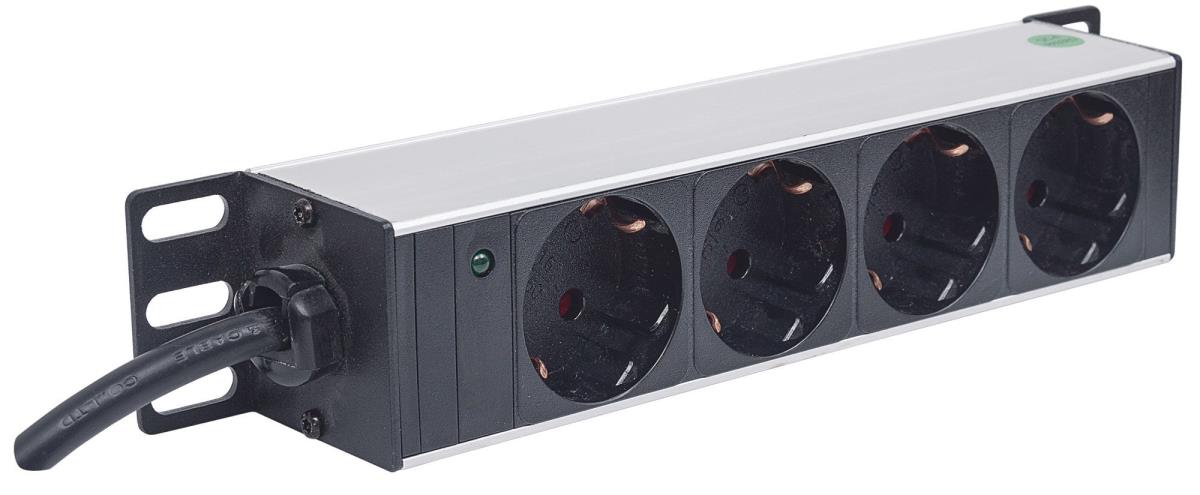

EU Product - 10" 1U Rckmoun 4-Oupu
Introduction
Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.
Specifications
| Design | |
|---|---|
| On/off switch | No |
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Grey |
| Rack capacity | 1U |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | Type F |
| Features | |
| Cable length | 1.8 m |
| Ergonomics | |
| Cable length | 1.8 m |
| Power | |
| Nominal input voltage | 250 V |
| Maximum current | 15 A |
| Certificates | |
| Compliance certificates | UL |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 560 g |
| Size (imperial) | 25.4 cm (10") |
| Width | 44.4 mm |
| Depth | 254 mm |
| Height | 44.4 mm |
| Technical details | |
| Compliance certificates | UL |
