AC/DC POWER ADAPTER/SUPPLY FOR USB HUBS
Introduction
AC/DC Power Adapter for StarTech.com DC Powered Industrial Products

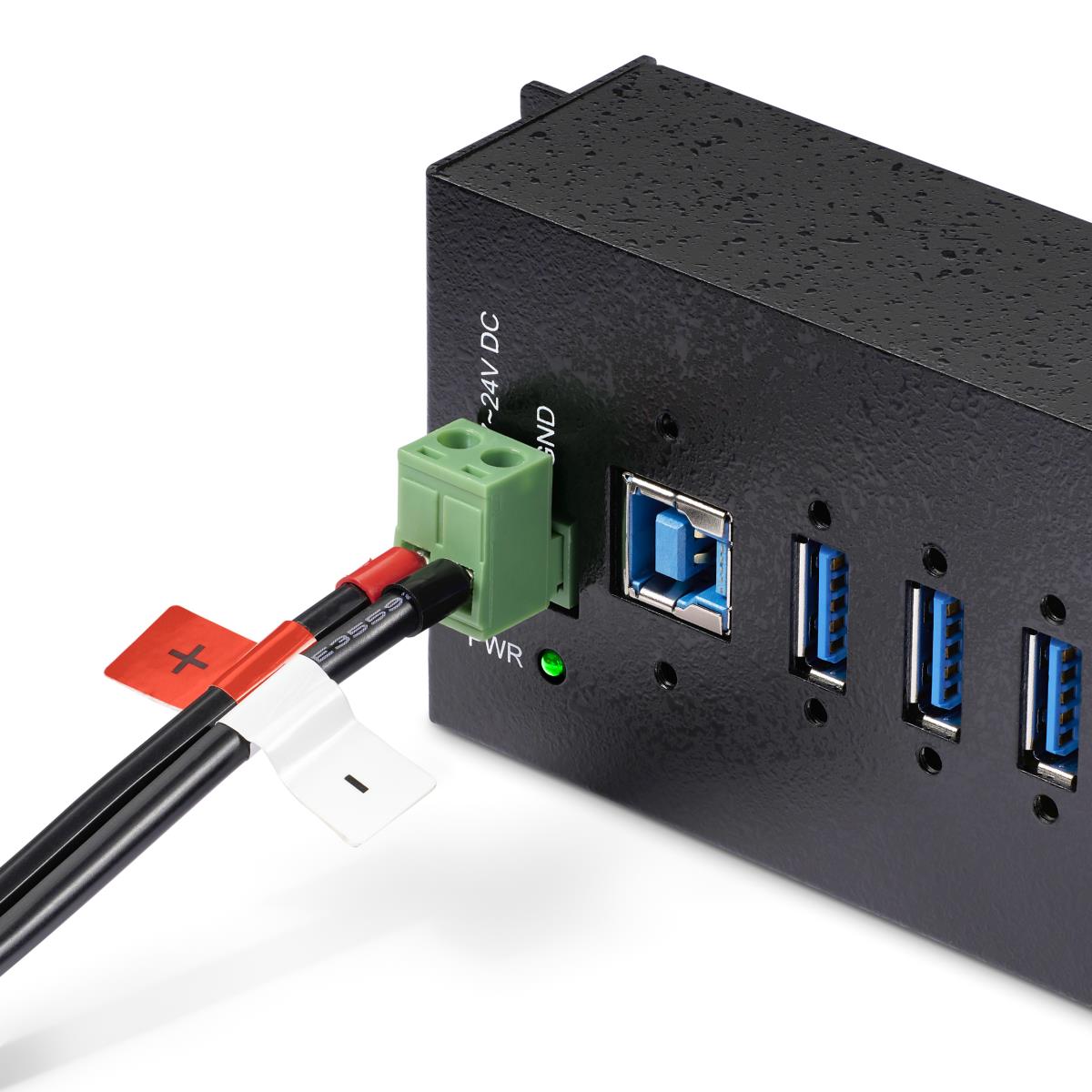

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.
High-Performance Universal Power Adapter

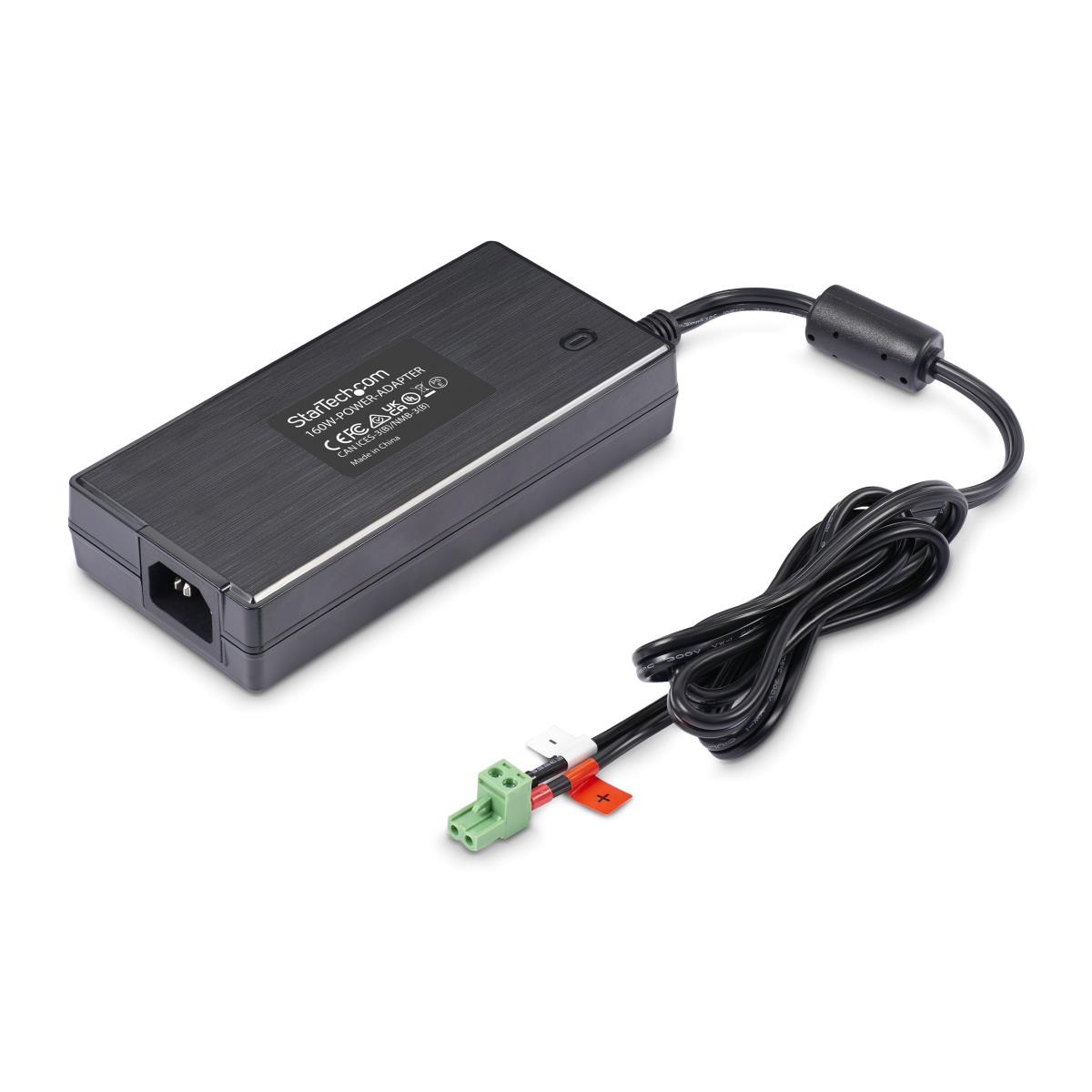

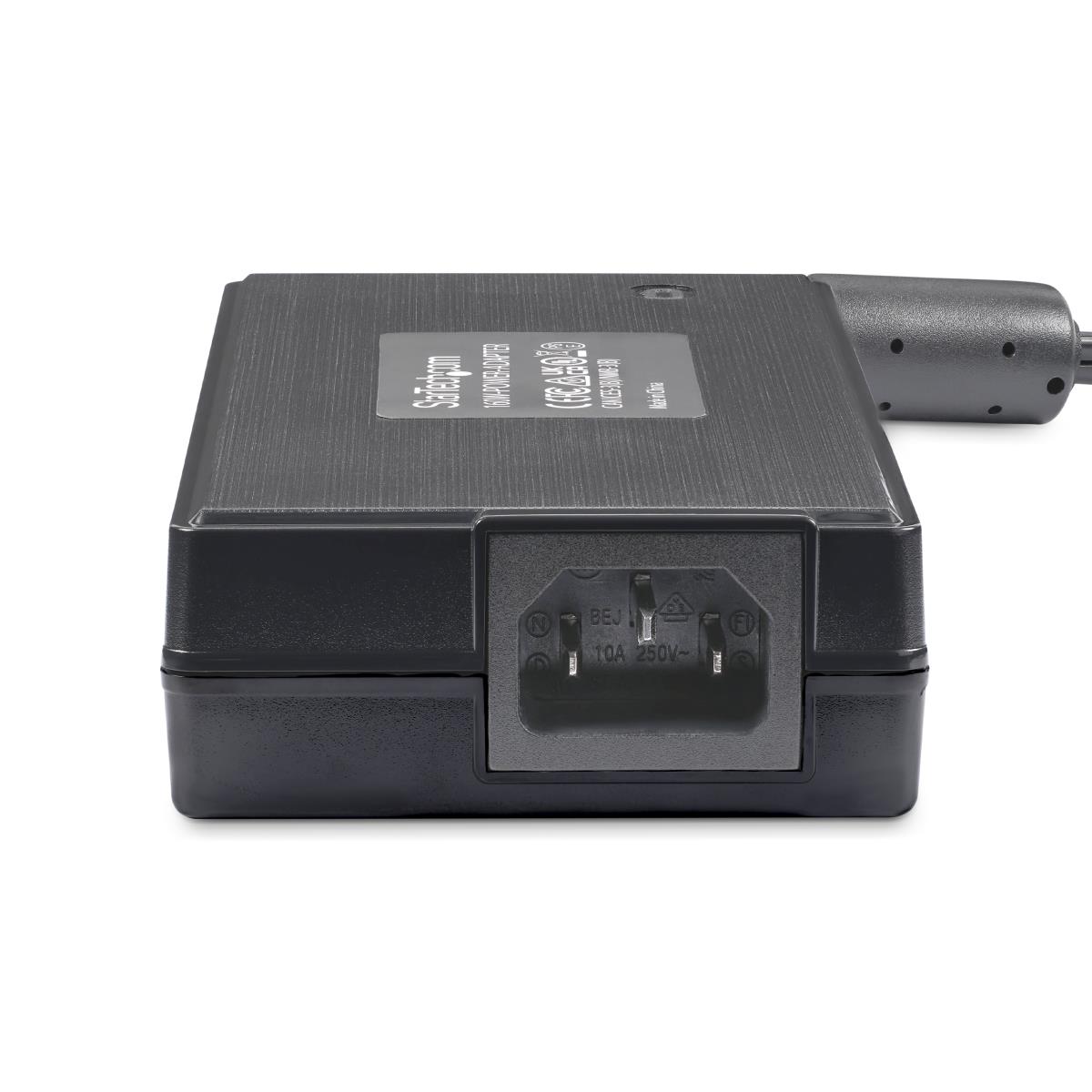

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.
Four 4ft (1.2m) regional power cables are included, to ensure international support:
• North America - Type-A NEMA 1-15
• United Kingdom - Type-G BS 1363
• Europe - CEE 7/7
• Australia/New Zealand - Type-I AS 3112
Device Compatibility

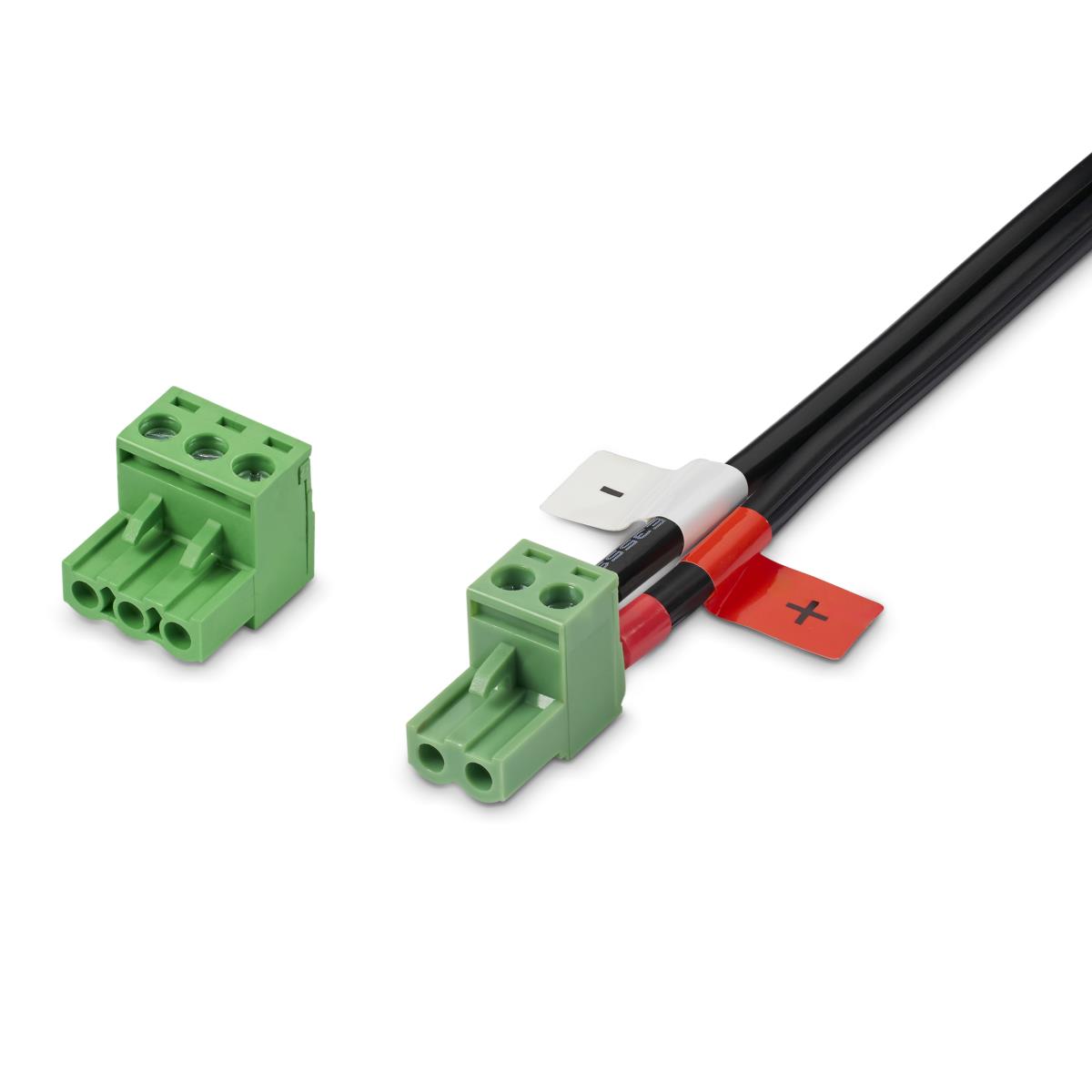

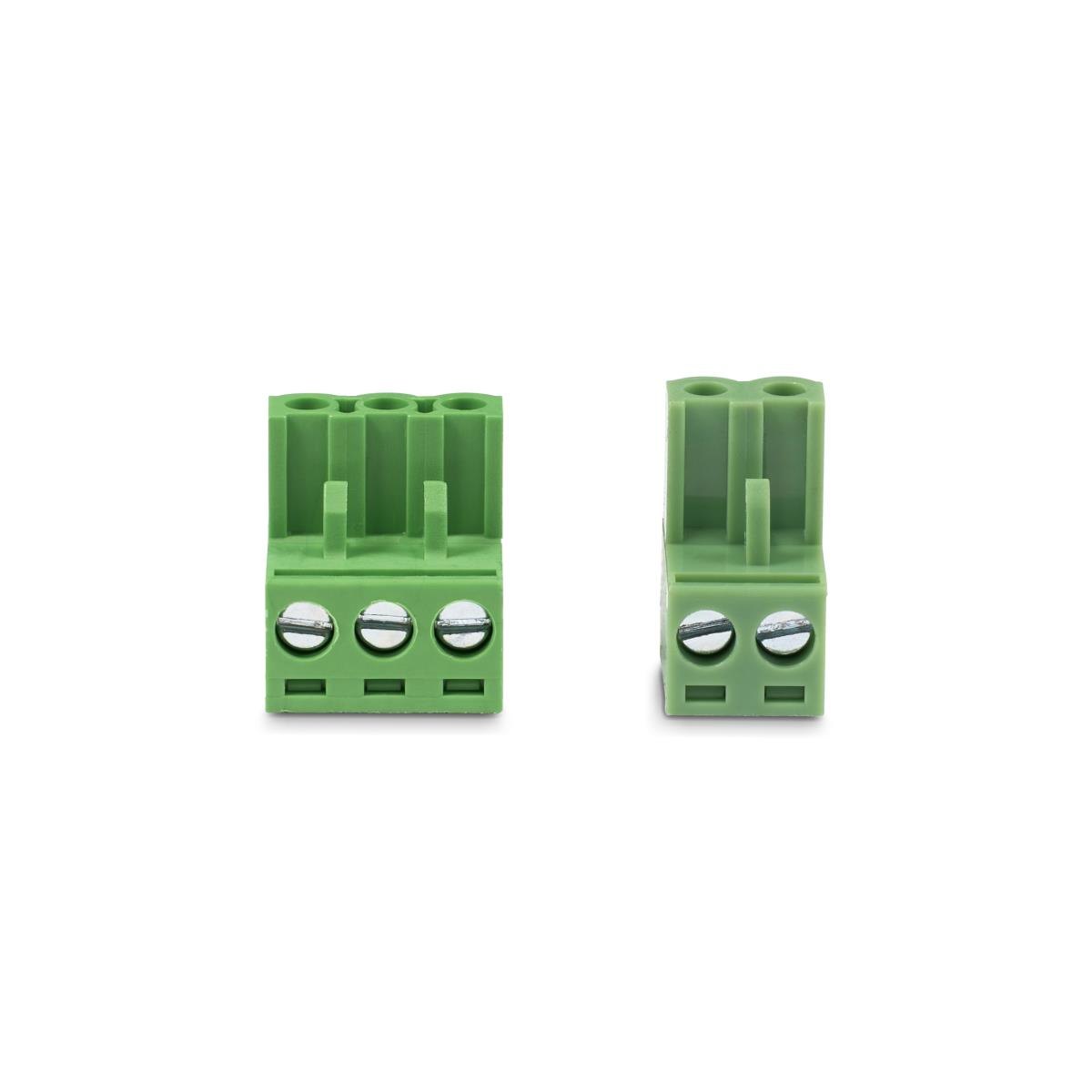

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:
• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:
• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
Specifications
| Features | |
|---|---|
| Brand compatibility | StarTech.com |
| Input current | 3.5 A |
| Input voltage | 100 - 240 V |
| Output power | 158.4 W |
| Output voltage | 24 V |
| Output current | 6.6 A |
| Power supply type | Indoor |
| Purpose | Universal |
| Housing material | Plastic |
| Compatibility | HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB |
| Product colour | Black |
| Power | |
| Input current | 3.5 A |
| Input voltage | 100 - 240 V |
| Output power | 158.4 W |
| Output voltage | 24 V |
| Output current | 6.6 A |
| Performance | |
| Brand compatibility | StarTech.com |
| Power supply type | Indoor |
| Purpose | Universal |
| Compatibility | HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB |
| Design | |
| Cable length | 1.2 m |
| Housing material | Plastic |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Compliance certificates | PSE |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 291 g |
| Width | 53 mm |
| Depth | 115 mm |
| Height | 37 mm |
| Cable length | 1.2 m |
| Packaging data | |
| Package width | 204 mm |
| Package depth | 162 mm |
| Package height | 92 mm |
| Package weight | 350 g |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | PSE |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 230 mm |
| Master (outer) case height | 369 mm |
