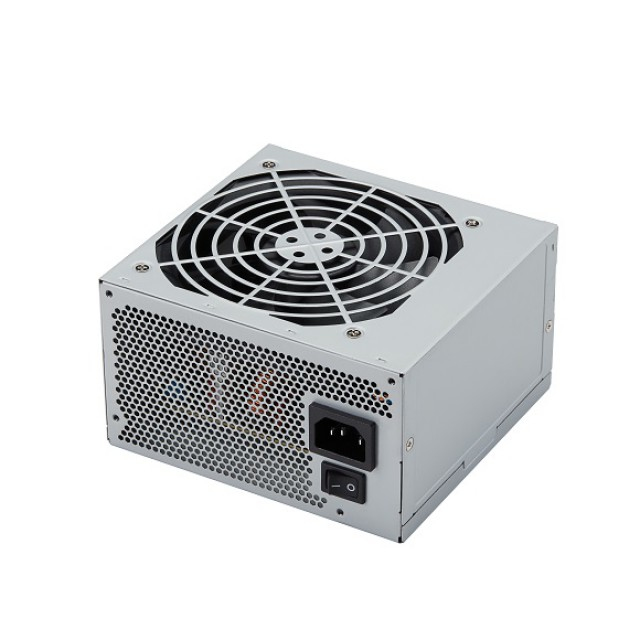

EU Product - 500-50c Power Supply

Introduction

FSP AAC Series features with eco-friendly design, which allows AAC series to reach up to 85% efficiency. AAC series also equipped with complete protection to prevent your system from damage. AAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Design
80 PLUS certification	80 PLUS Bronze
Certification	CB 62368, CB 60950, CE, TUV, CUL
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	500 W
AC input voltage	90 - 264 V
AC input frequency	47 - 63 Hz
Input current	3 - 7 A
Power factor	0.99
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Max output current (+3.3V)	20 A
Max output current (+12V)	41.66 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over voltage, Overheating
Hold time	16 ms
Efficiency	85%
Ports & interfaces
Cabling type	Non-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
ATX version	2.52
Mean time between failures (MTBF)	100000 h
Certification	CB 62368, CB 60950, CE, TUV, CUL
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Bronze
Certification	CB 62368, CB 60950, CE, TUV, CUL
