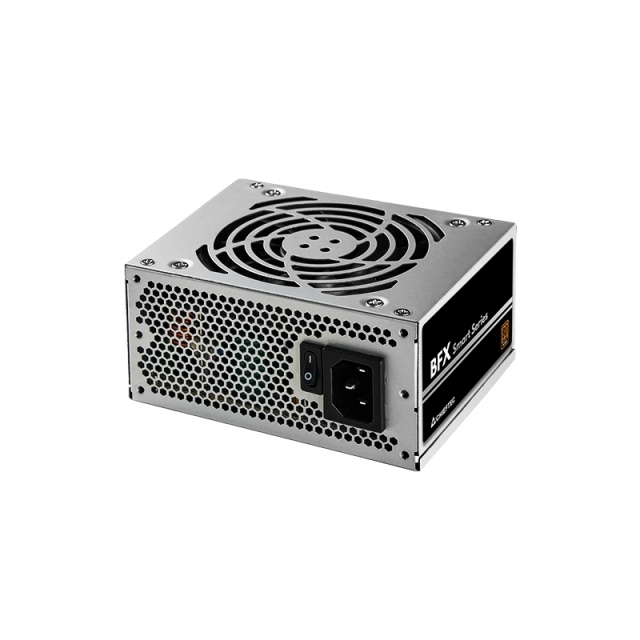

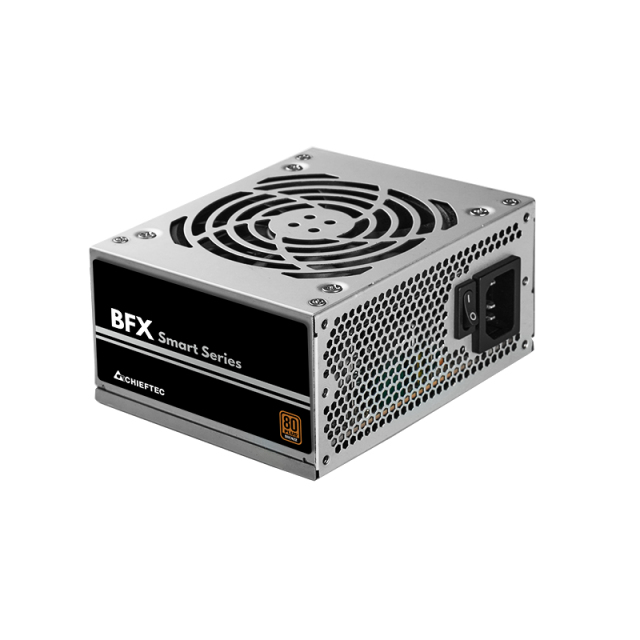

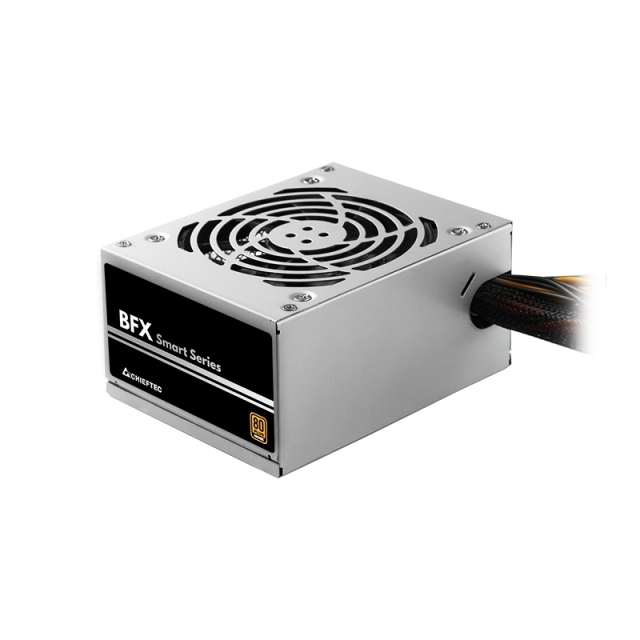

EU Product - Netzteil 350W SFX (80+Bronze) bulk
Introduction
The BFX Series combines an 80PLUS Bronze efciency and a modern technical platform based on DC-DC technology into a compact SFX form factor that ensured reliability and high performance. With the inclusion of a 9cm fan, while keeping the total length of the PSU to 10cm, the BFX Series stays very compact, while beneftting from a quiet fan operation. All modern protection mechanisms are included for peace of mind.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 9 cm |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Product colour | Black, Silver |
| Fan diameter | 9 cm |
| Cooling type | Active |
| Power | |
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 349.92 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 29.16 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power cable length | 35 cm |
| SATA power cable length | 250 mm |
| Peripheral (Molex) power cable length | 150 mm |
| PCI Express power cable length | 35 cm |
| Floppy disk drive cable length | 15 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| ATX version | 2.3 |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 1.3 kg |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Harmonized System (HS) code | 84733020 |
