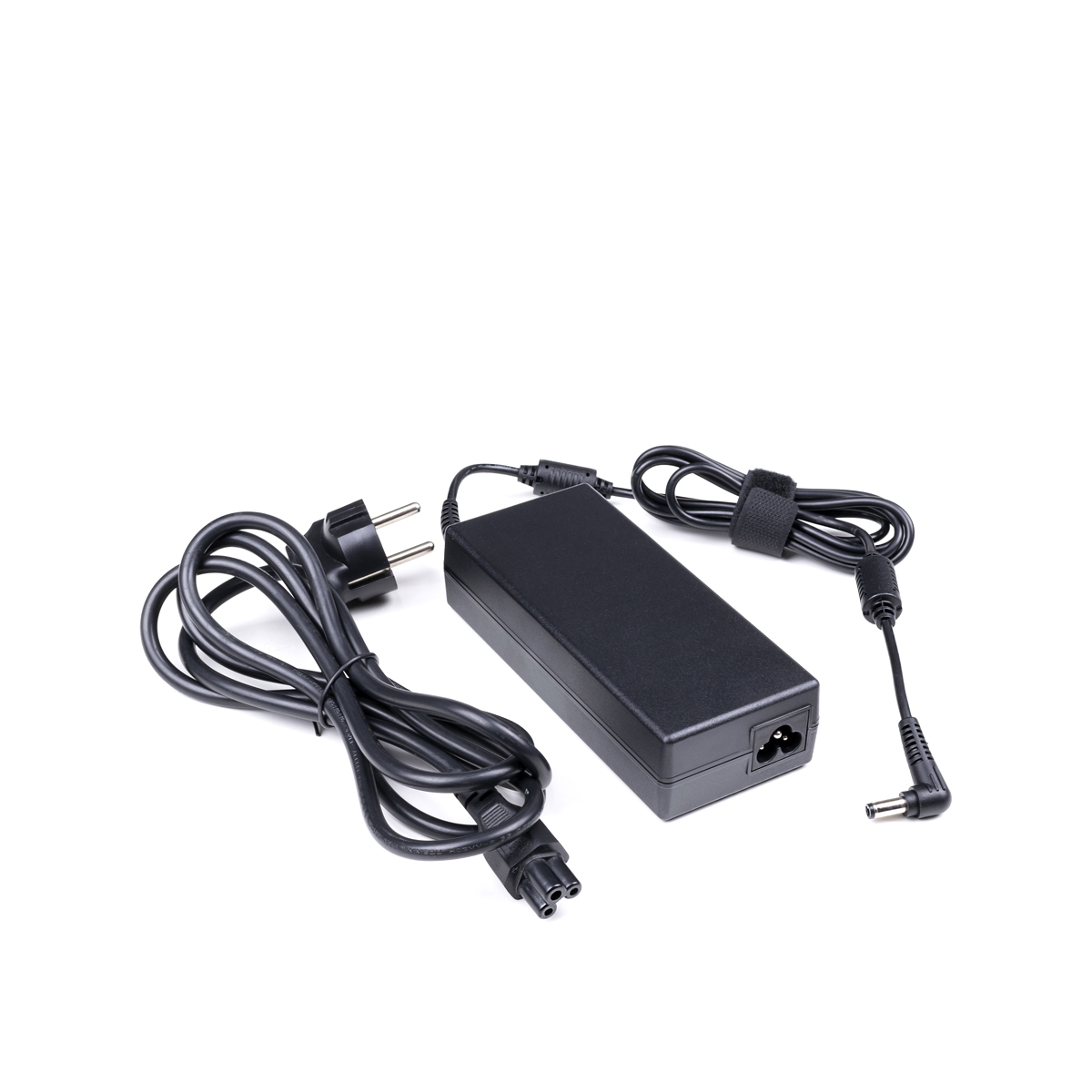

EU Product - XPC-Netzteil PE120 120W

Introduction

The Shuttle Accessory PE120 is an external power adapter which transforms the mains power to a lower 19V DC voltage. It is meant as a replacement device for certain Shuttle products. PE120 provides a maximum output wattage of 120W and can also be used for such devices, whose original power adapter had lower performance (e.g. 40W, 65W or 90W).

Specifications

Features
Input voltage	100 - 240 V
Output power	120 W
Output voltage	19 V
Output current	6.32 A
Power supply type	Indoor
Purpose	PC
Power current type	AC-to-DC
Efficiency	89%
Product colour	Black
Input frequency	50/60 Hz
Maximum input voltage	240 V
AC port type	C5
Power
Input voltage	100 - 240 V
Output power	120 W
Output voltage	19 V
Output current	6.32 A
Efficiency	89%
Performance
Power supply type	Indoor
Purpose	PC
Power current type	AC-to-DC
Design
Cable length	1.8 m
Product colour	Black
Cooling type	Passive
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	600 g
Width	150 mm
Depth	65 mm
Height	36 mm
Cable length	1.8 m
Packaging data
Quick installation guide	Yes
Cables included	AC
Power adapter included	Yes
Quantity per pack	1 pc(s)
Packaging content
Quick installation guide	Yes
Cables included	AC
Technical details
Power adapter included	Yes
Sustainability compliance	Yes
Compliance certificates	CB, CCC, CE, UKCA
Logistics data
Harmonized System (HS) code	85044083
