EU Product - LevelOne Industrie Netzteil 24VDC/ 60W+DIN-Schiene schwarz
Introduction

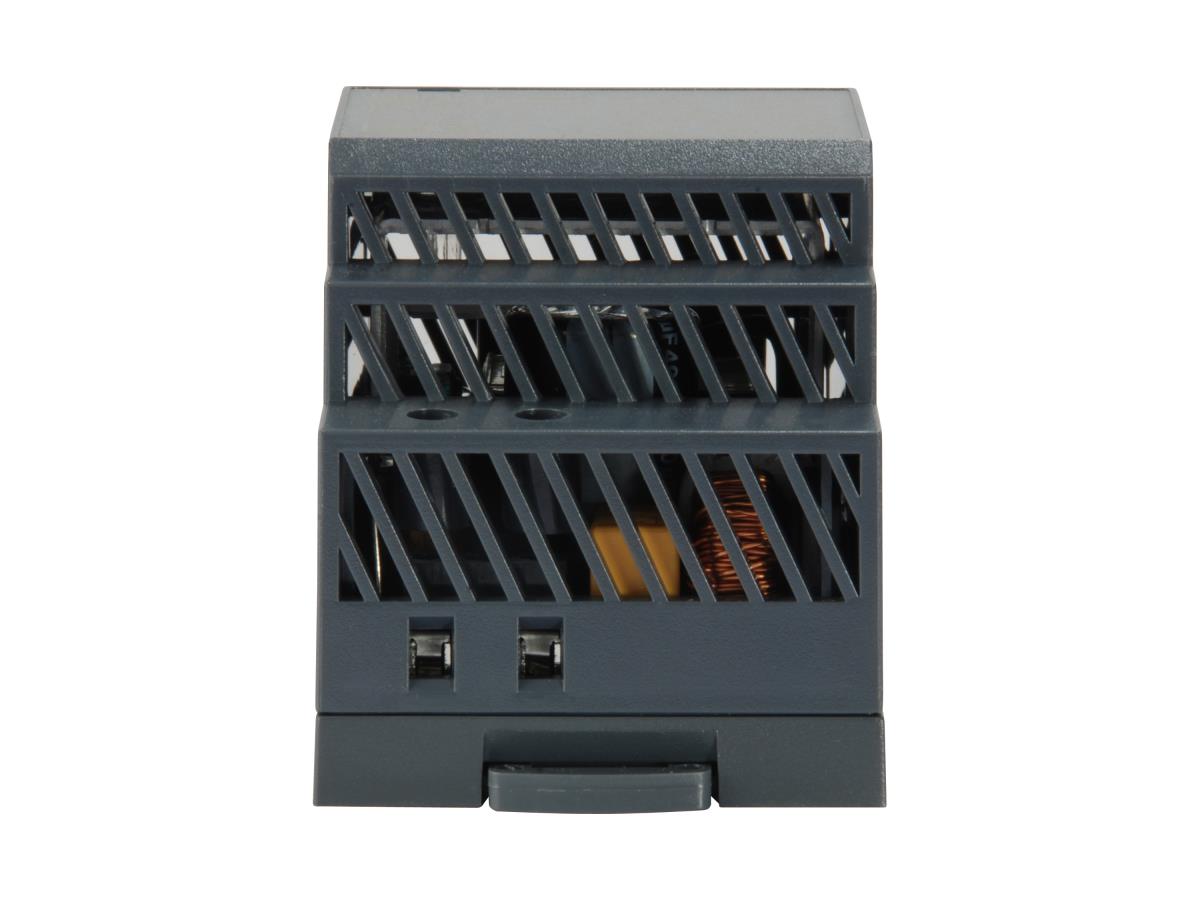

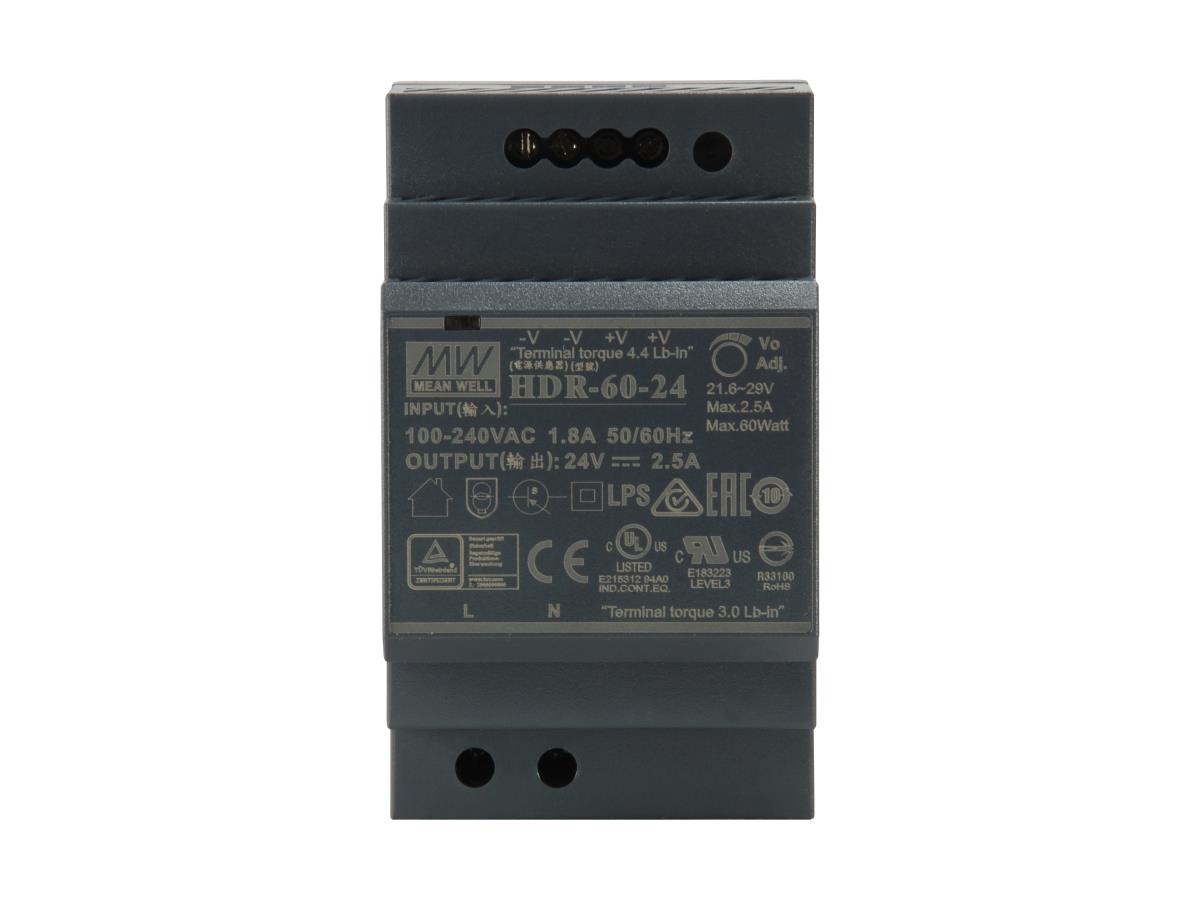

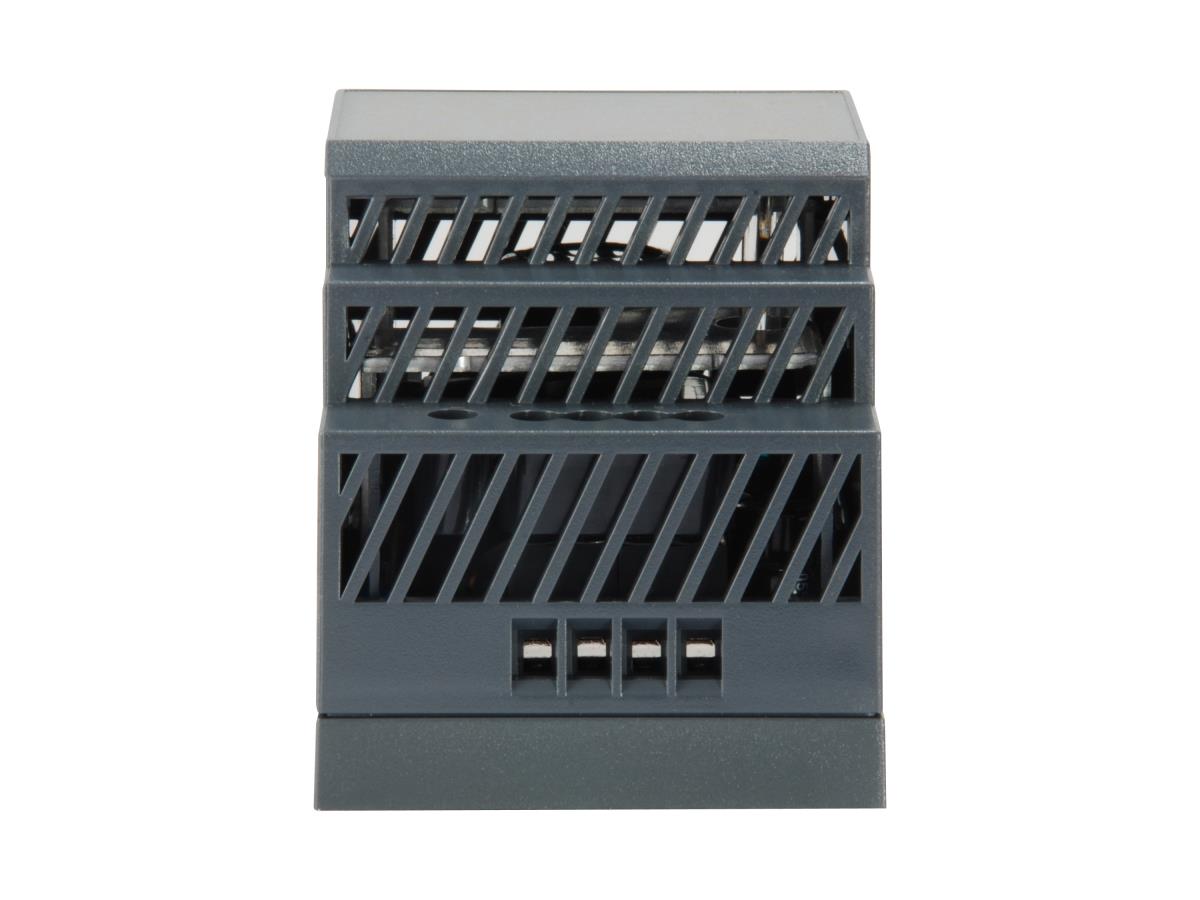

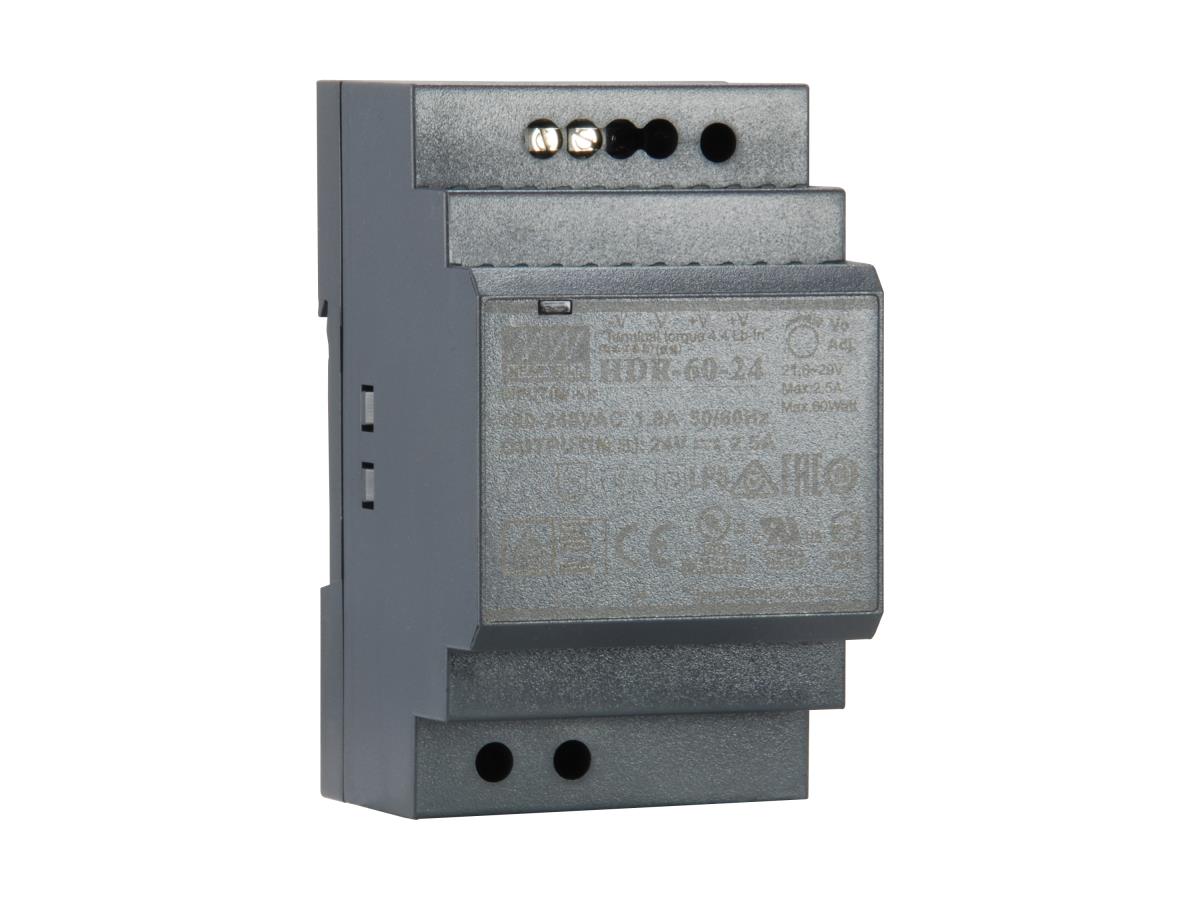

The POW-2421 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -30 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment.
Specifications
| Design | |
|---|---|
| Safety | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design refer to TUV EN60950-1 |
| Product colour | Black |
| Country of origin | China |
| Power | |
| Total power | 60 W |
| Peak power | 60 W |
| AC input voltage | 85 - 264 V |
| Power protection features | Over voltage, Overload, Short circuit |
| Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| Performance | |
| Safety | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design refer to TUV EN60950-1 |
| Mean time between failures (MTBF) | 927600 h |
| Country of origin | China |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Technical features | 24V DC Out |
| Safety regulation & standards | |
| Safety | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design refer to TUV EN60950-1 |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 54.5 mm |
| Height | 52.5 mm |
| Weight | 60 kg |
| Packaging data | |
| Package depth | 54.5 mm |
| Package width | 90 mm |
| Package height | 52.5 mm |
| Package weight | 60 kg |
| Certificates | |
| Safety | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design refer to TUV EN60950-1 |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Maximum current | 2.5 A |
| Technical features | 24V DC Out |
| Harmonized System (HS) code | 84733020 |
