Part No:V11H740041
Stock:7 In Stock
EAN Code:8715946605142

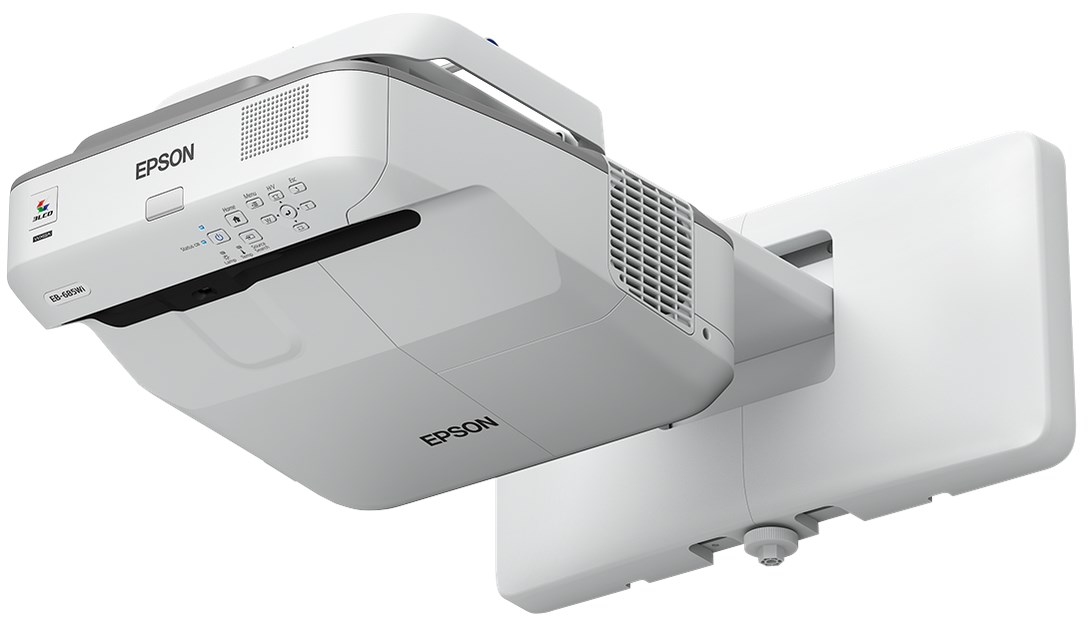

With a brightness of 3,500 lumens and HD-readyWXGA resolution, the EB-695Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. This projector offers ultimate interactivity by combining finger-touch with dual pen capability. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images. High brightness and image quality Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality. Finger-touch and dual pen Use your fingers to annotate directly onto the screen. Epson's interactive pens are now even more responsive and easy to use. With the new dual pens, teacher and student or two students can work simultaneously using different attributes. Highly reliable Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode. Interact and enhance learning Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera. Optional wireless capability Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Projector | |
---|---|
Number of colours | 1.073 billion colours |
White light output | 3500 ANSI lumens |
Colour light output | 3500 ANSI lumens |
Projector native resolution | WXGA (1280x800) |
Projection distance (wide) | 0 - 0.4 m |
Projection distance (tele) | 0 - 0.6 m |
Native aspect ratio | 16:10 |
Supported aspect ratios | 16:10 |
Screen size compatibility | 1524 - 2540 mm (60 - 100") |
Contrast ratio (typical) | 300:1 |
Contrast ratio (dynamic) | 14000:1 |
Zoom ratio | 1.35:1 |
Projector brightness (economic mode) | 2900 ANSI lumens |
Vertical synchronization (min) | 0.1 kHz |
Vertical synchronization (max) | 0.12 kHz |
Matrix size | 1.5 cm (0.59") |
Keystone correction, vertical | ±3° |
Projection technology | 3LCD |
Projector brightness | 3500 ANSI lumens |
Lamps | |
Lamp power | 250 W |
Light source type | Lamp |
Service life of light source | 5000 h |
Service life of light source (economic mode) | 10000 h |
Light source | |
Lamp power | 250 W |
Light source type | Lamp |
Service life of light source | 5000 h |
Service life of light source (economic mode) | 10000 h |
Lens system | |
Zoom ratio | 1.35:1 |
Focus | Manual |
Throw ratio | 0.28:1 |
Digital zoom | 1.35x |
Video | |
Video processing | 10 bit |
Full HD | No |
3D | No |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 16 W |
Ports & interfaces | |
RS-232C | Yes |
VGA (D-Sub) ports quantity | 3 |
HDMI ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 3 |
Composite video in | 1 |
Audio (L/R) in | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
S-Video inputs quantity | 1 |
Serial interface type | RS-232C |
RS-232 ports | 1 |
DVI port | No |
AC (power) in | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Storage | |
Card reader integrated | No |
Technical details | |
Product colour | Grey, White |
RS-232C | Yes |
Lamp power | 250 W |
Products per pallet | 12 pc(s) |
Quantity per pack | 1 pc(s) |
Pallet gross width | 80 cm |
Pallet gross length | 120 cm |
Pallet gross height | 15 cm |
Products per pallet layer (UK) | 2 pc(s) |
Products per pallet layer | 2 pc(s) |
Products per pallet (UK) | 12 pc(s) |
Pallet width (UK) | 100 cm |
Pallet length (UK) | 120 cm |
Pallet height (UK) | 15 cm |
Performance | |
Mac compatibility | Yes |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Linux operating systems supported | Yes |
Features | |
Country of origin | Philippines |
Multimedia | |
Built-in speaker(s) | Yes |
RMS rated power | 16 W |
Design | |
Product type | Ultra short throw projector |
Cable lock slot type | Kensington |
Product colour | Grey, White |
LED indicators | Yes |
Cable lock slot | Yes |
Placement | Wall |
Display | |
Built-in display | No |
Power | |
AC input voltage | 220 - 240 V |
AC input frequency | 50 - 60 Hz |
Power source | AC |
Power consumption (typical) | 356 W |
Power consumption (standby) | 0.39 W |
Power consumption (economy mode) | 312 W |
Packaging data | |
Package width | 490 mm |
Package depth | 740 mm |
Package height | 335 mm |
Package weight | 21.6 kg |
Security | |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Indication | |
LED indicators | Yes |
Software | |
Mac compatibility | Yes |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Linux operating systems supported | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -10 - 60 °C |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions | |
Package width | 490 mm |
Package depth | 740 mm |
Package height | 335 mm |
Weight | 5.8 kg |
Width | 367 mm |
Depth | 400 mm |
Height | 187 mm |
Package weight | 21.6 kg |
Packaging content | |
Remote control included | No |
Manual | Yes |
Logistics data | |
Products per pallet | 12 pc(s) |
Quantity per pack | 1 pc(s) |
Pallet gross width | 80 cm |
Pallet gross length | 120 cm |
Pallet gross height | 15 cm |
Products per pallet layer (UK) | 2 pc(s) |
Products per pallet layer | 2 pc(s) |
Products per pallet (UK) | 12 pc(s) |
Pallet width (UK) | 100 cm |
Pallet length (UK) | 120 cm |
Pallet height (UK) | 15 cm |
Other features | |
RS-232C | Yes |
RS-232 ports | 1 |
Power consumption (economy mode) | 312 W |
