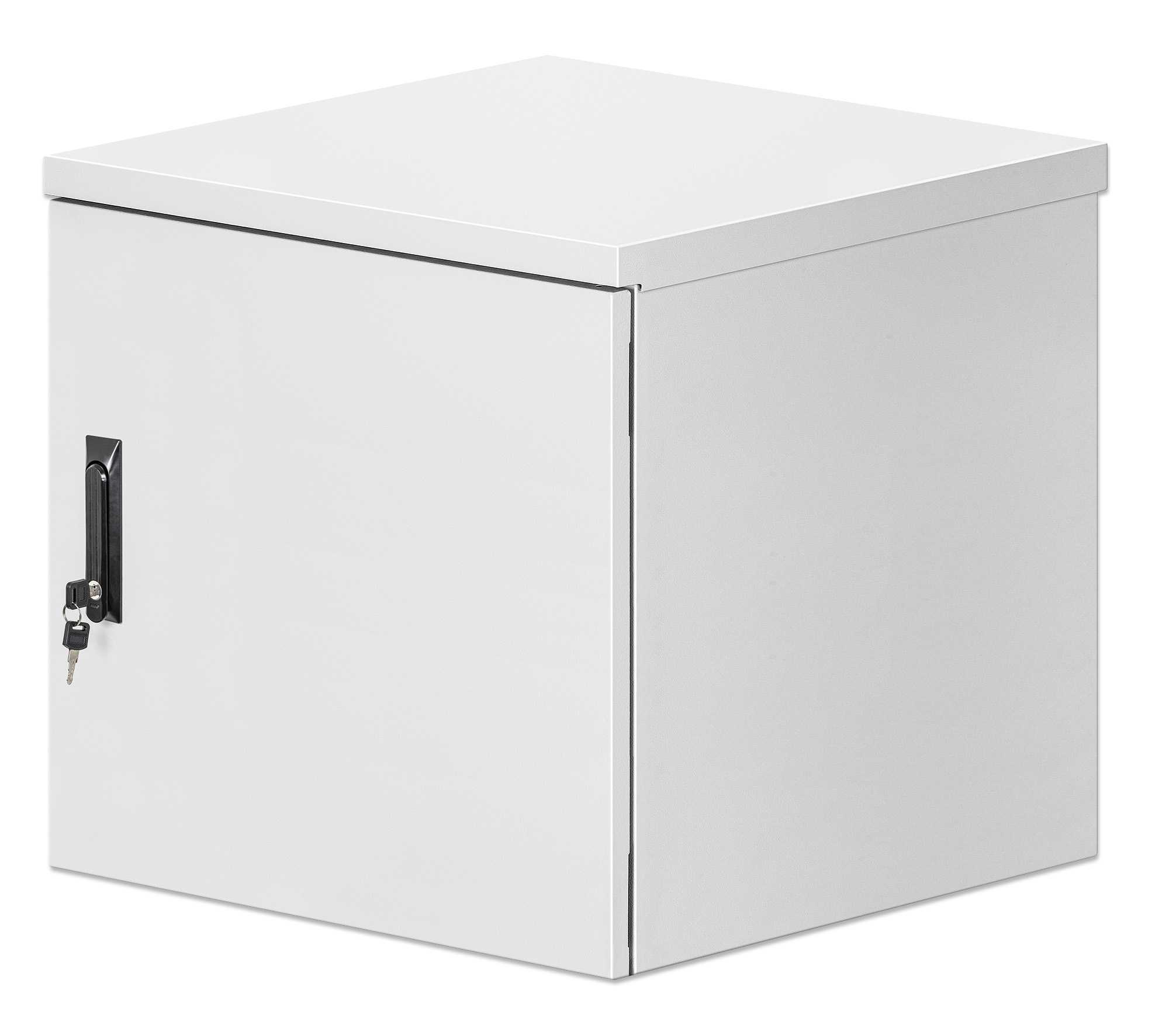

EU Product - IP55 19" Wandverteiler 12 HE 600mm tief grau (Speditionsversand)
Introduction
Network Cabinet Wall Mount with IP55 Rating for Industrial Applications - sealed protection against dust and water
The IP55 Wall Mount Cabinet from Intellinet Network Solutions is equipped to handle challenging environment conditions. The cabinet's powder-coated steel housing is compliant with IEC standard EN 60529 for safe protection against dust ingress and water jets from any direction. Four sealed cable glands with PVC blind caps on the bottom panel allow for cable entry. To ensure the neatly sealed design, the cabinet comes fully assembled, which also makes your installation quick and convenient. The sturdy 19” steel construction carries heavy rackmounted equipment up to 100 kg (220 lbs.) and can be securely locked with a 3-point door lock on the swing handle. This IP55 wall mount enclosure line is available in 6, 9, 12 and 18U sizes.
Includes two-fan ventilation unit for efficient cooling
To keep your network equipment cool, this cabinet has a built-in roof-mounted two-fan ventilation unit. It provides improved performance and longer life to your networking components through reliable cooling and ideal air circulation.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Number of fans | 2 fan(s) |
| Noise level | 24.9 dB |
| Key lock | Yes |
| Fan performance | 85 cfm |
| Rack capacity | 9U |
| International Protection (IP) code | IP55 |
| Cable management | Yes |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Maximum weight capacity | 100 kg |
| Material | Steel |
| Cooling type | Active |
| Product colour | Grey |
| Door opening angle | 190° |
| Weight & dimensions | |
| Package weight | 37.5 kg |
| Width | 615 mm |
| Depth | 600 mm |
| Height | 635 mm |
| Weight | 36 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 100 kg |
| Packaging content | |
| Nuts included | Yes |
| Number of nuts | 10 |
| Screws included | Yes |
| Number of screws | 10 |
| Power | |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Rated current | 10 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 10 |
| Package weight | 37.5 kg |
| Screws included | Yes |
| Number of screws | 10 |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Rated current | 10 A |
| Cooling type | Active |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Rack capacity | 9U |
| International Protection (IP) code | IP55 |
| Colour | |
| Product colour | Grey |
| Material | |
| Material | Steel |
