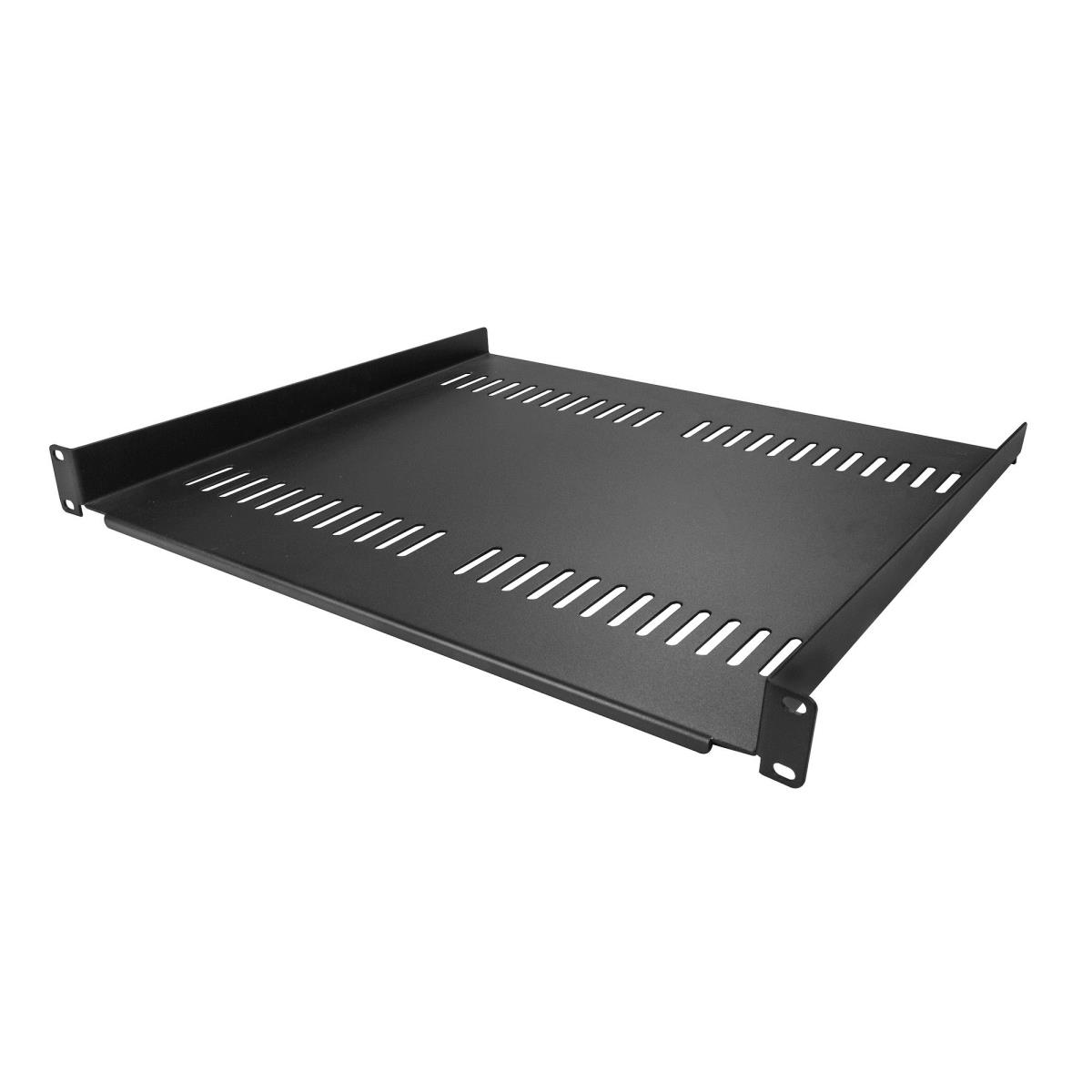

2-PACK 1U RACK SHELF VENTED
Introduction

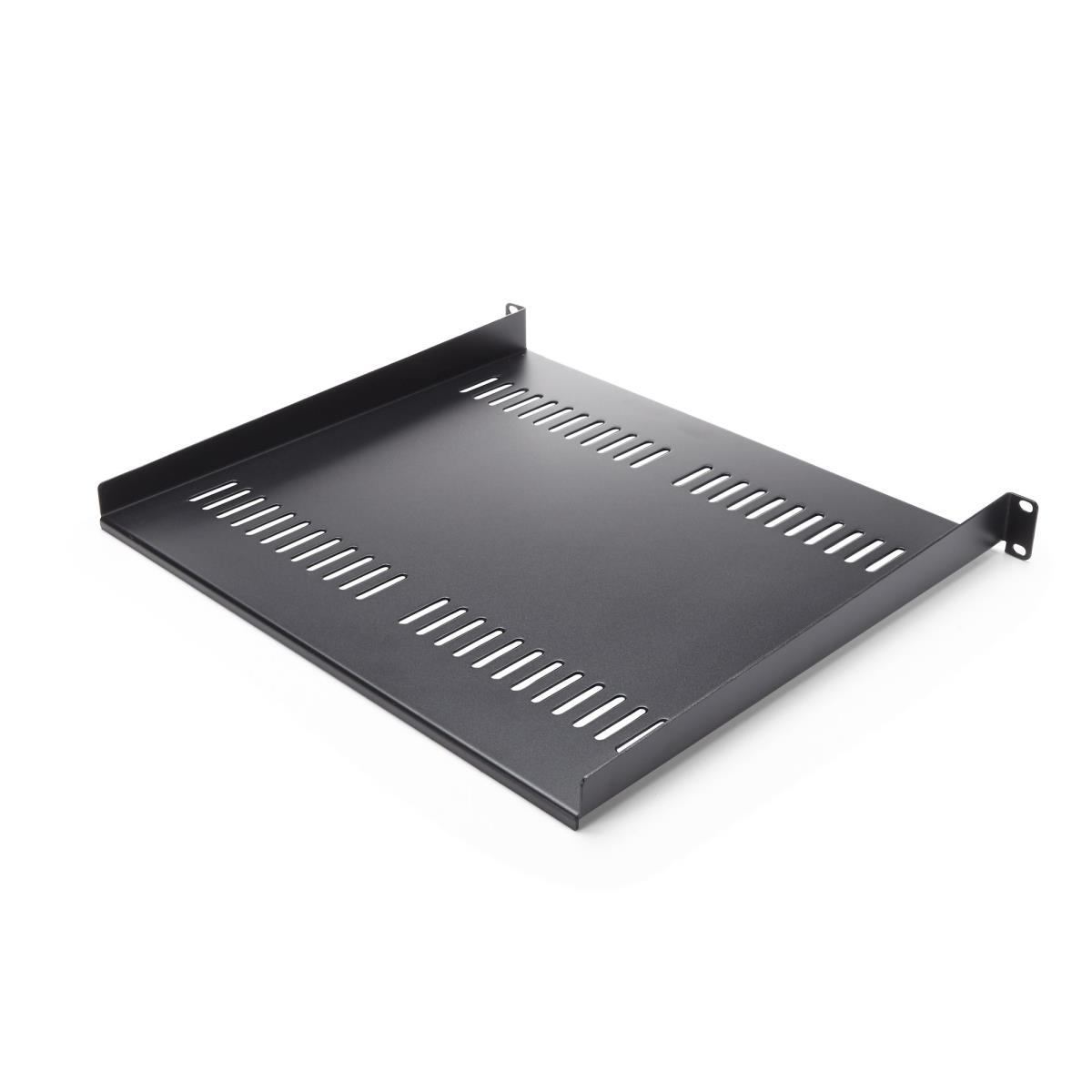

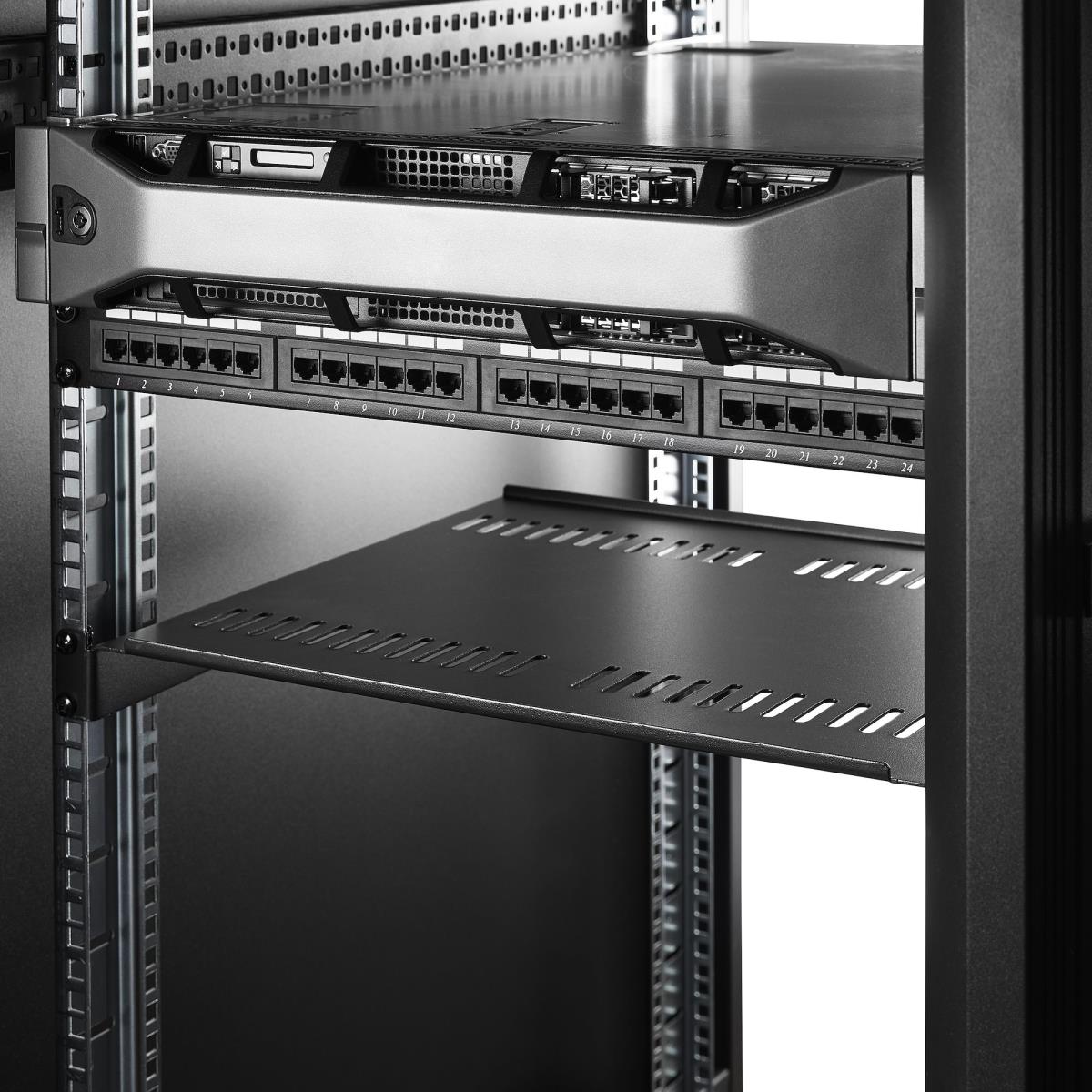

Add a sturdy vented shelf into a 19-inch server rack or cabinet

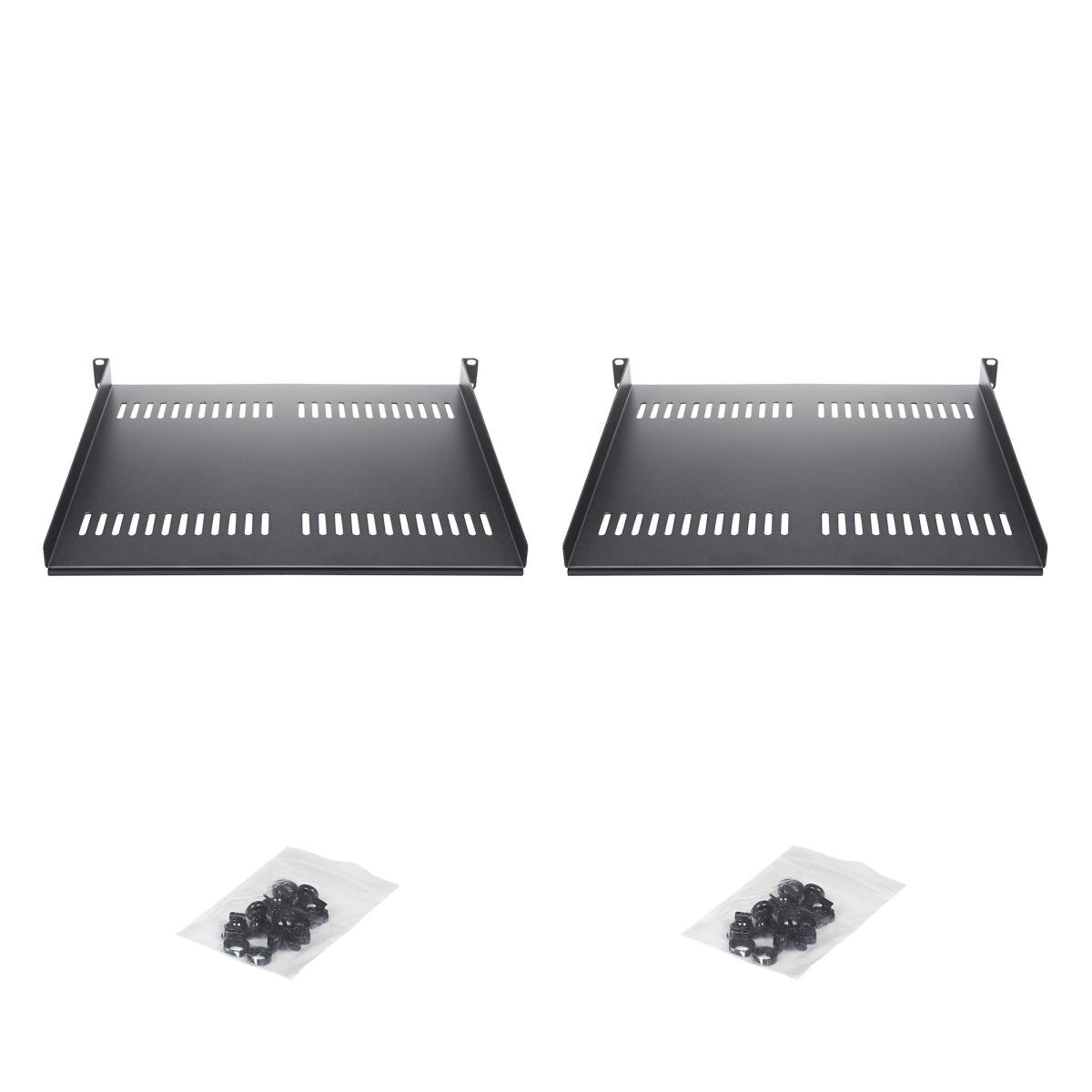

This 2-pack of 1U rack shelves adds low-profile storage to any EIA-310-compliant 19-inch server rack or cabinet. The shelf is vented to improve airflow to mission-critical equipment. Cage nuts, screws, and washers are included for installation.
Robust Shelf

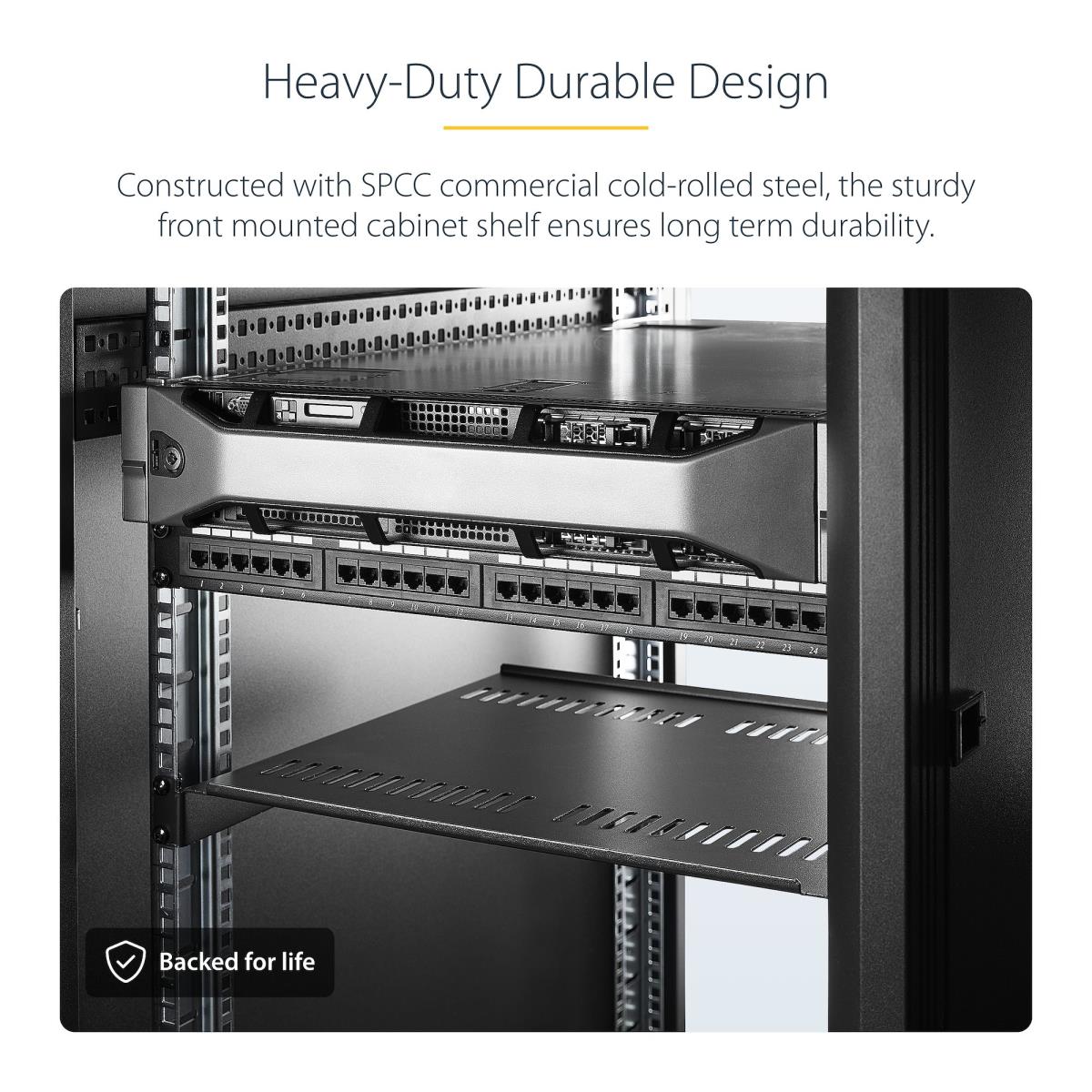

This 16-gauge SPCC steel server rack shelf features a maximum weight capacity of 44lb (20kg).
Efficient Use of Space

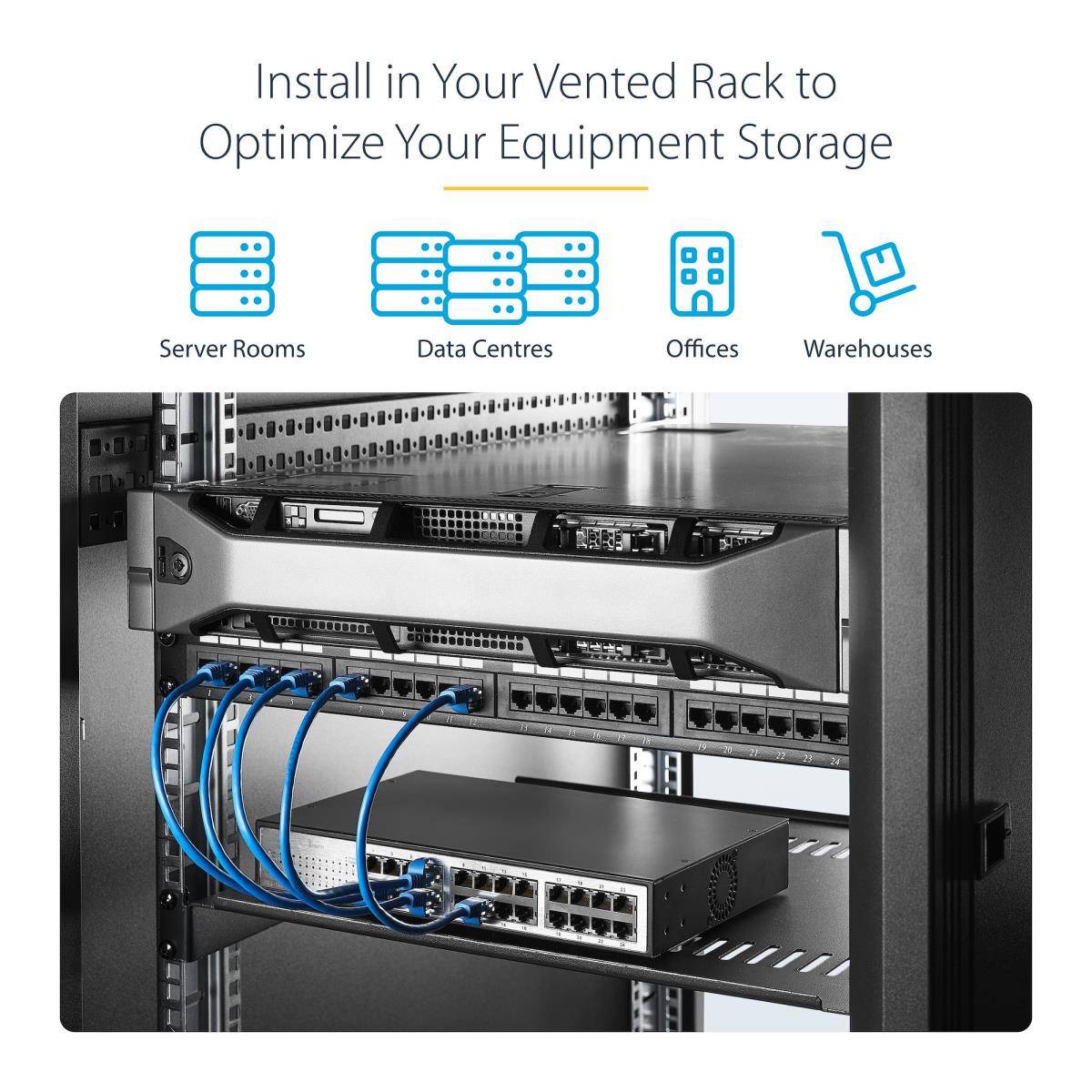

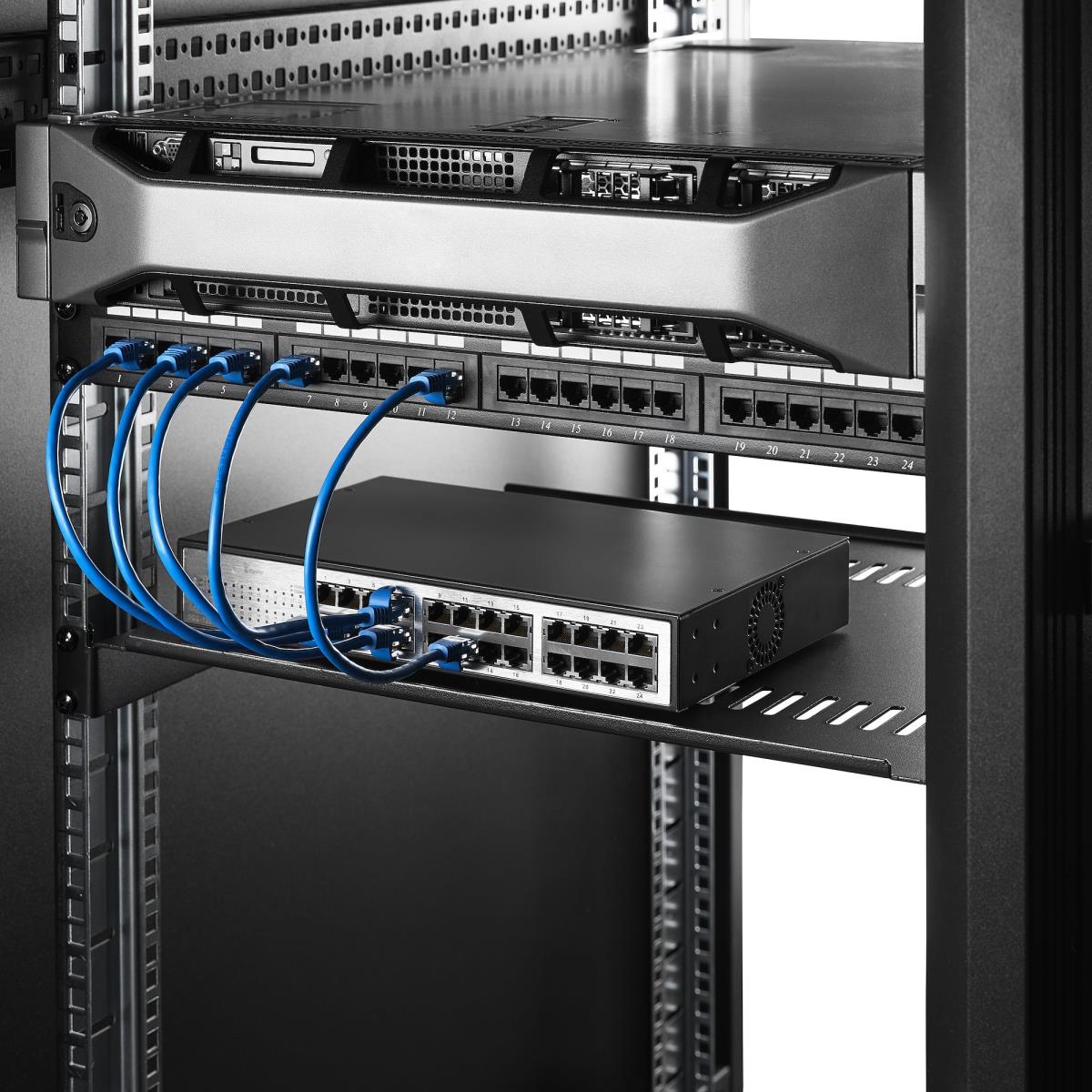

The 1U cantilever shelf optimizes the workspace by storing tools, peripherals, or non-rackmount equipment, saving desk or floor space. Ideal for SOHO environments, server rooms, and other space-constrained locations.

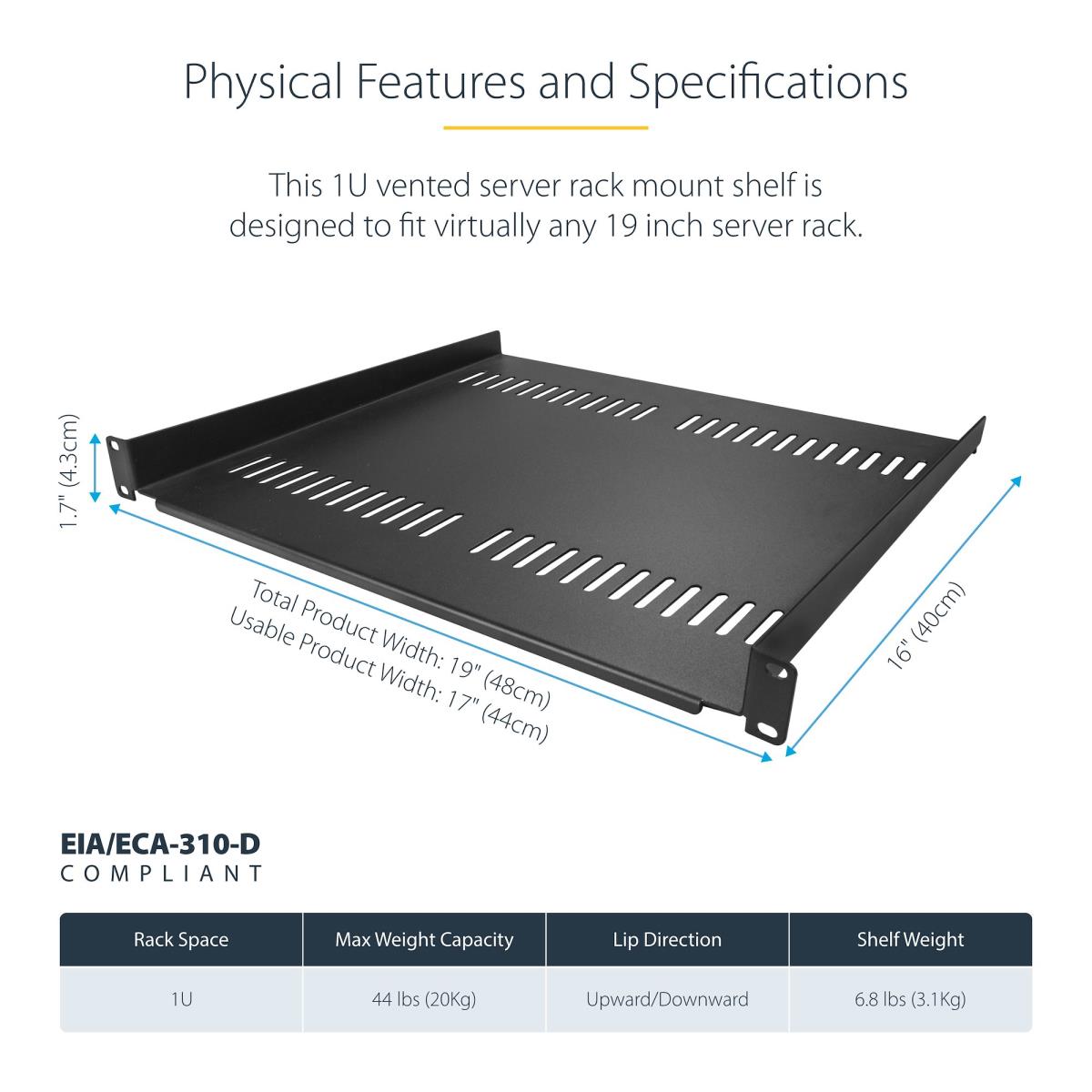

Specifications
| Features | |
|---|---|
| Type | Rack shelf |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Compliance industry standards | EIA/ECA-310-E |
| Wall mountable | No |
| Housing material | SPCC |
| Weight & dimensions | |
| Package width | 579 mm |
| Package height | 129 mm |
| Package depth | 514 mm |
| Package weight | 7.1 kg |

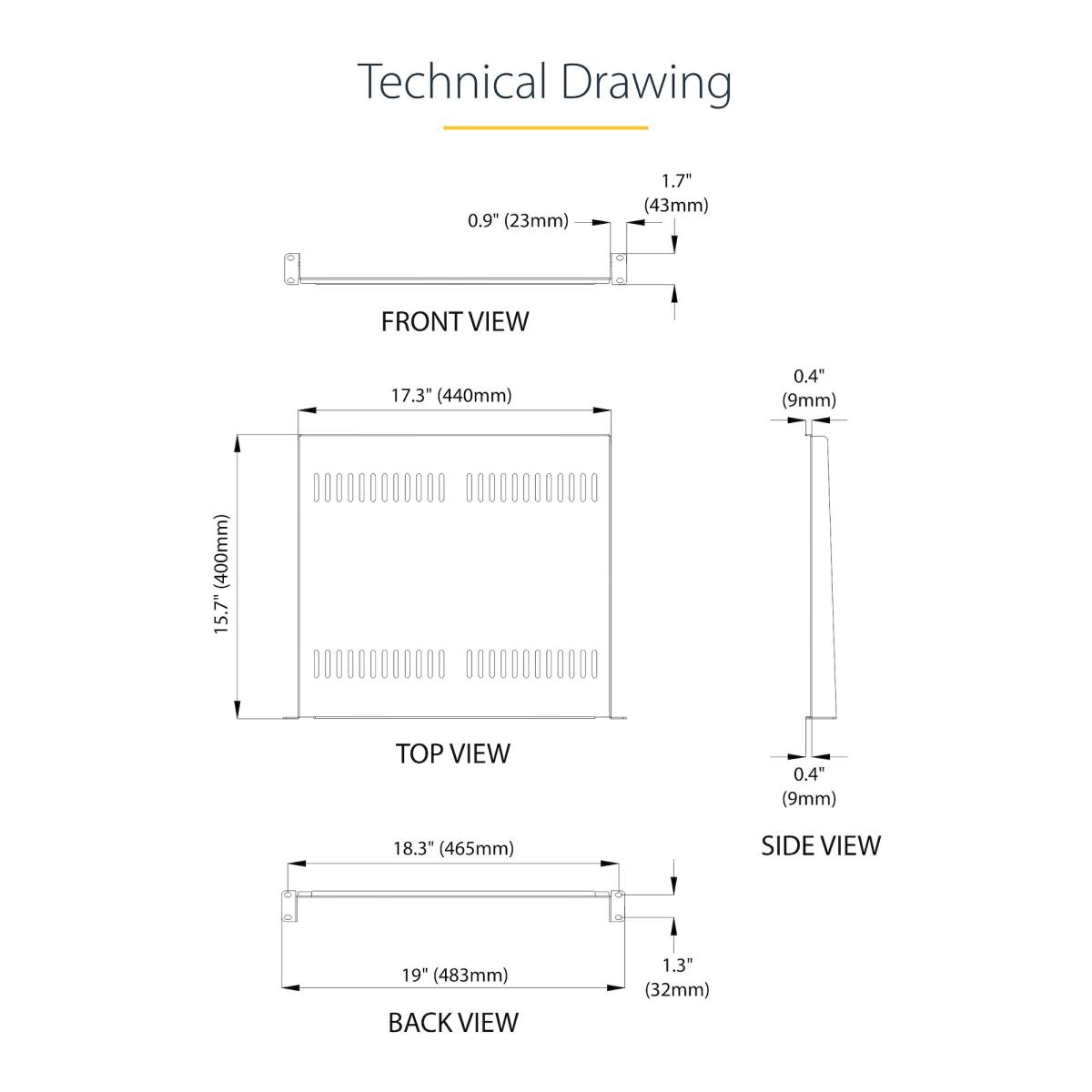

| Depth (max) | 40 cm |
| Material thickness | 2 mm |
| Width | 483 mm |
| Weight | 3.1 kg |
| Height | 43 mm |
| Depth | 400 mm |
| Maximum weight capacity | 20 kg |
| Packaging data | |
| Package width | 579 mm |
| Package height | 129 mm |
| Package depth | 514 mm |
| Package weight | 7.1 kg |
| Quantity per pack | 2 pc(s) |

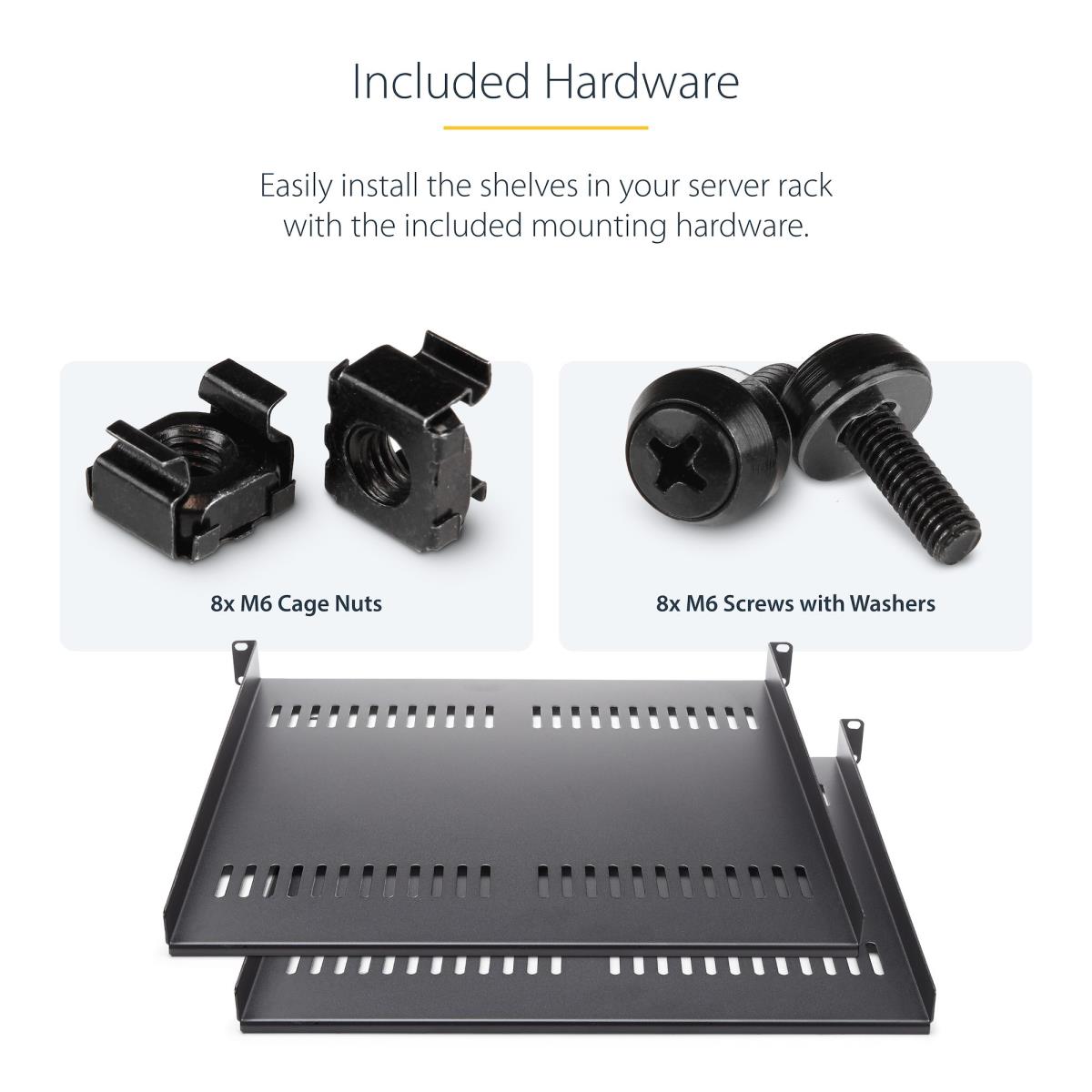

| Packaging content | |
| Screws included | Yes |
| Number of screws | 8 |
| Quick installation guide | Yes |
| Washers included | Yes |
| Number of washers included | 8 |
| Number of cage nuts | 8 |
| Cage nuts included | Yes |
| Technical details | |
| Type | Rack shelf |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 586 mm |
| Master (outer) case length | 535 mm |
| Master (outer) case height | 551 mm |
| Products per master (outer) case | 4 pc(s) |
