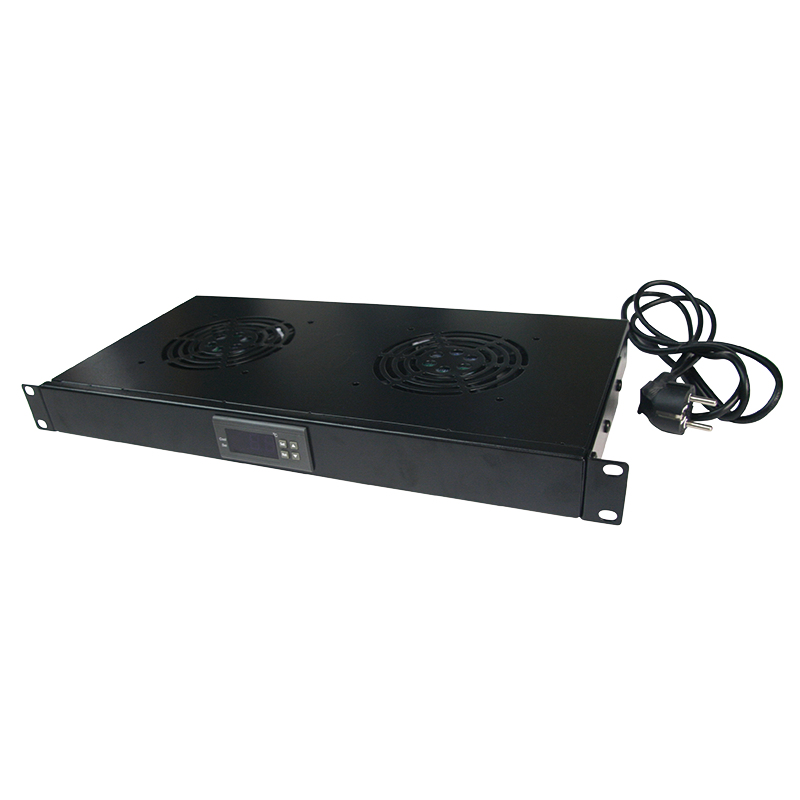

EU Product - 19"Lüftereinschub mit 2 Lüftern, schwarz
Introduction
LogiLinks universal rack-mountable cooling units help to remove ambient heat that active components inside the rack emit. Circulating new air into the cabinet helps maintain the optimum temperature for the active components inside the free standing cabinet or wall mount box. These cost-effective fan units are suitable for all rack with standard 19 rack mount profiles.
- Fan unit with 2 fans
- Horizontal 19" installation, 1U
- Noise Level: 25 dBA at 1600 RPM
- Fan Speed: 1600 RPM ħ25%
- Operating Voltage: 187-231/50 VAC/Hz
- Air Flow: 49.8 CFM
- With thermostat and 1.8m power cable
- Material: 1.5 mm Steel
Specifications
| Features | |
|---|---|
| Type | Fan panel |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Housing material | Steel |
| Weight & dimensions | |
| Package width | 505 mm |
| Package height | 55 mm |
| Package depth | 230 mm |
| Width | 482.6 mm |
| Size (imperial) | 48.3 cm (19") |
| Height | 44 mm |
| Depth | 220 mm |
| Packaging data | |
| Package width | 505 mm |
| Package height | 55 mm |
| Package depth | 230 mm |
| Technical details | |
| Type | Fan panel |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
