WALL MOUNT PATCH PANEL BRACKET
Introduction
Mount equipment that is up to 14 inches deep, such as patch panels or network switches, to your wall

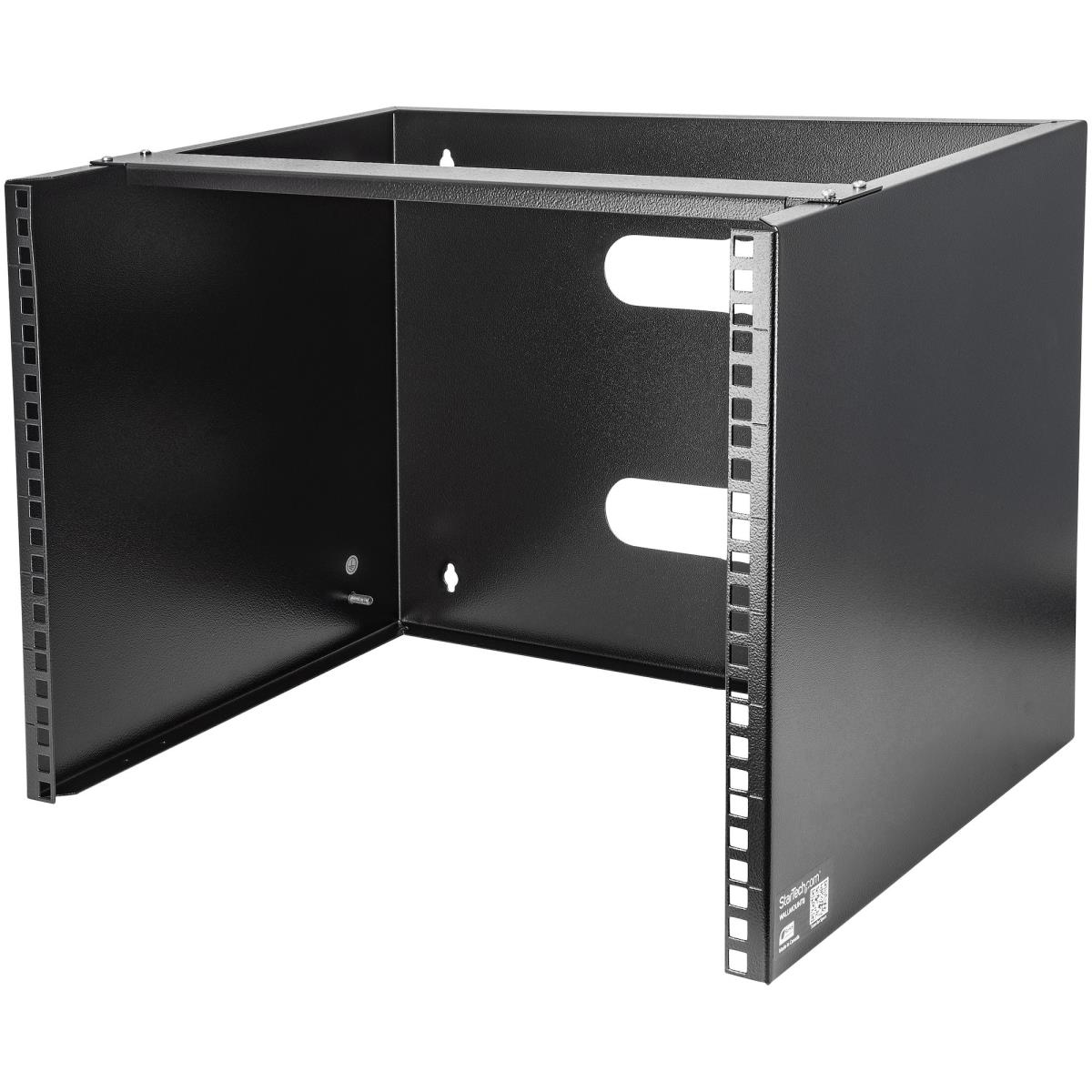

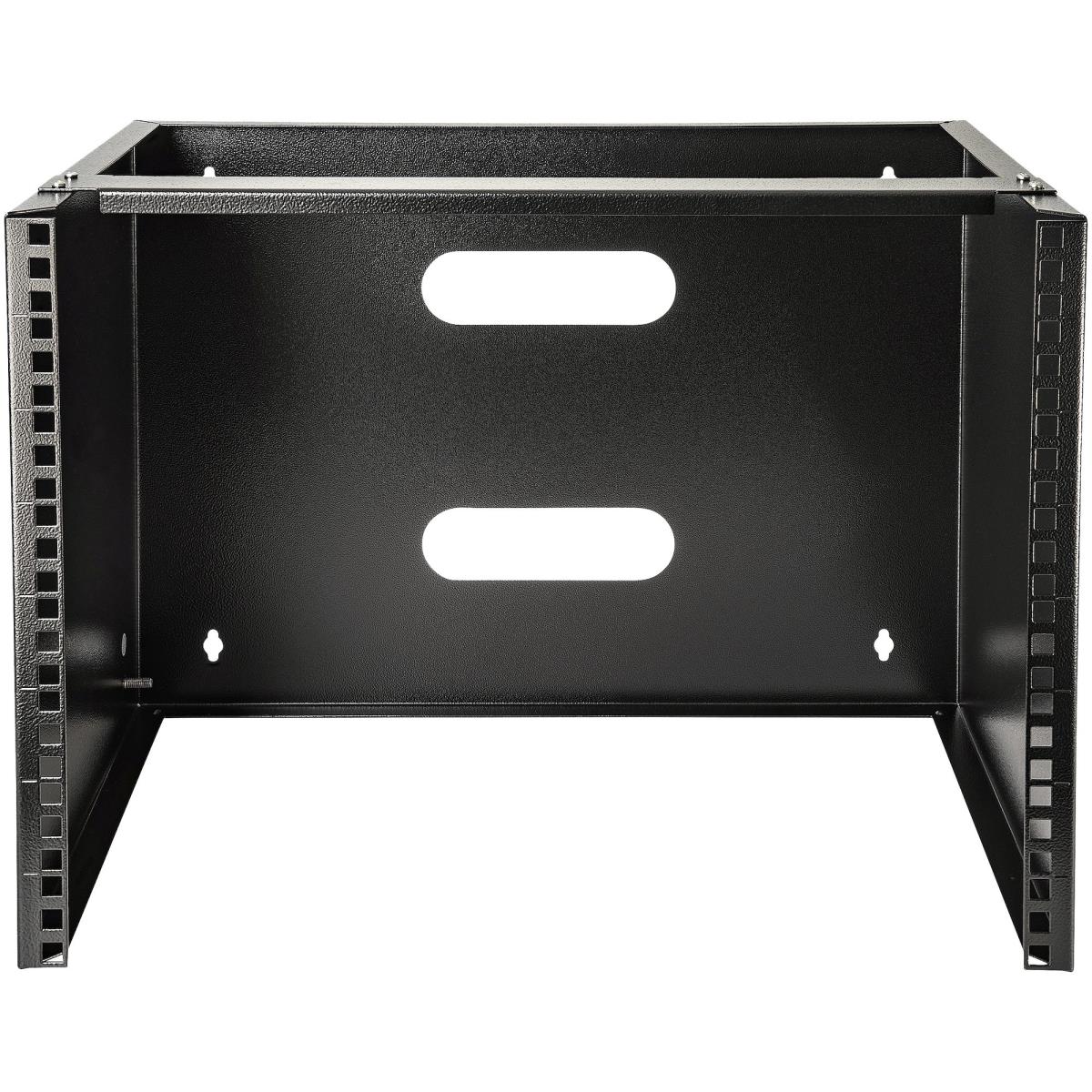

This wall-mount bracket provides 8U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 8U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation

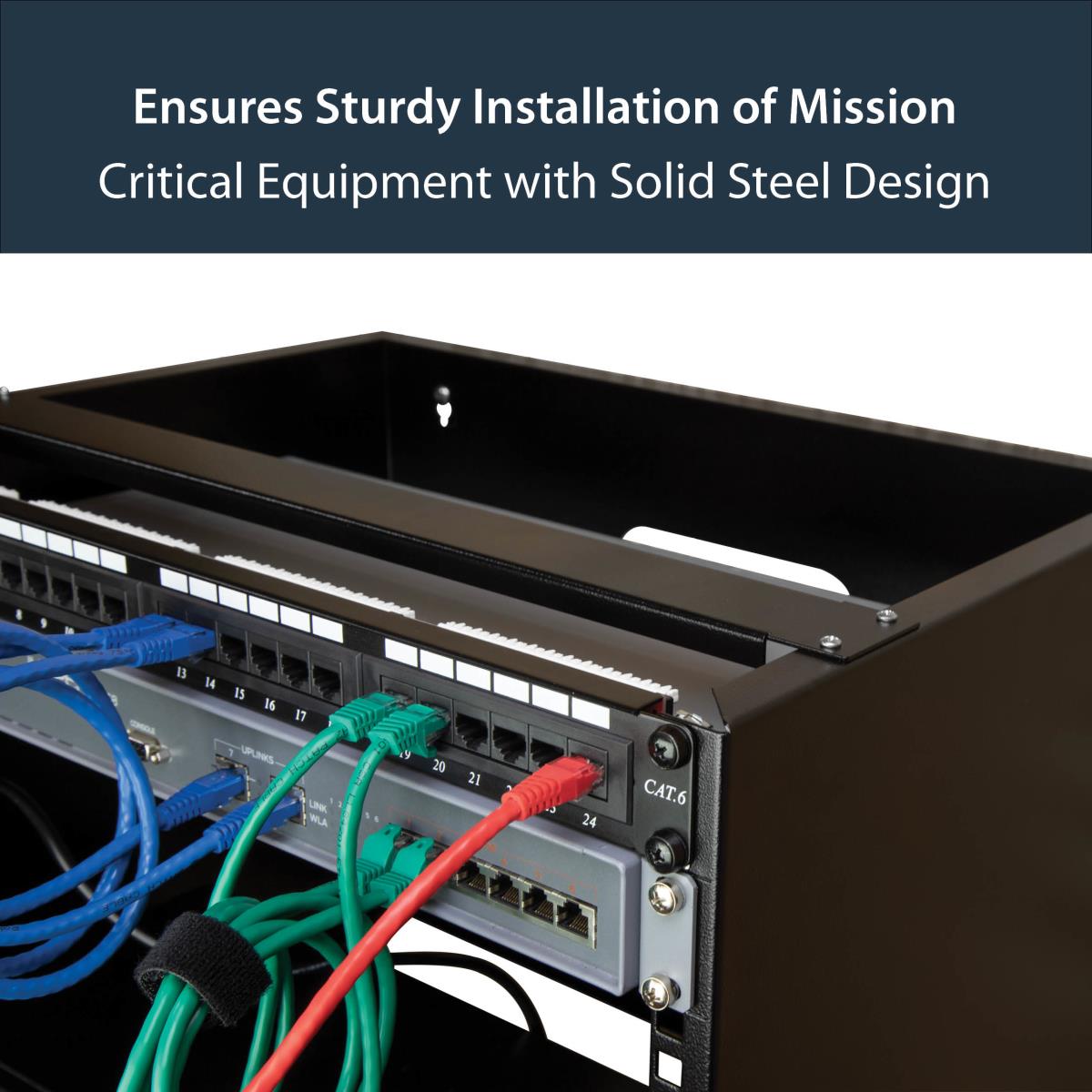

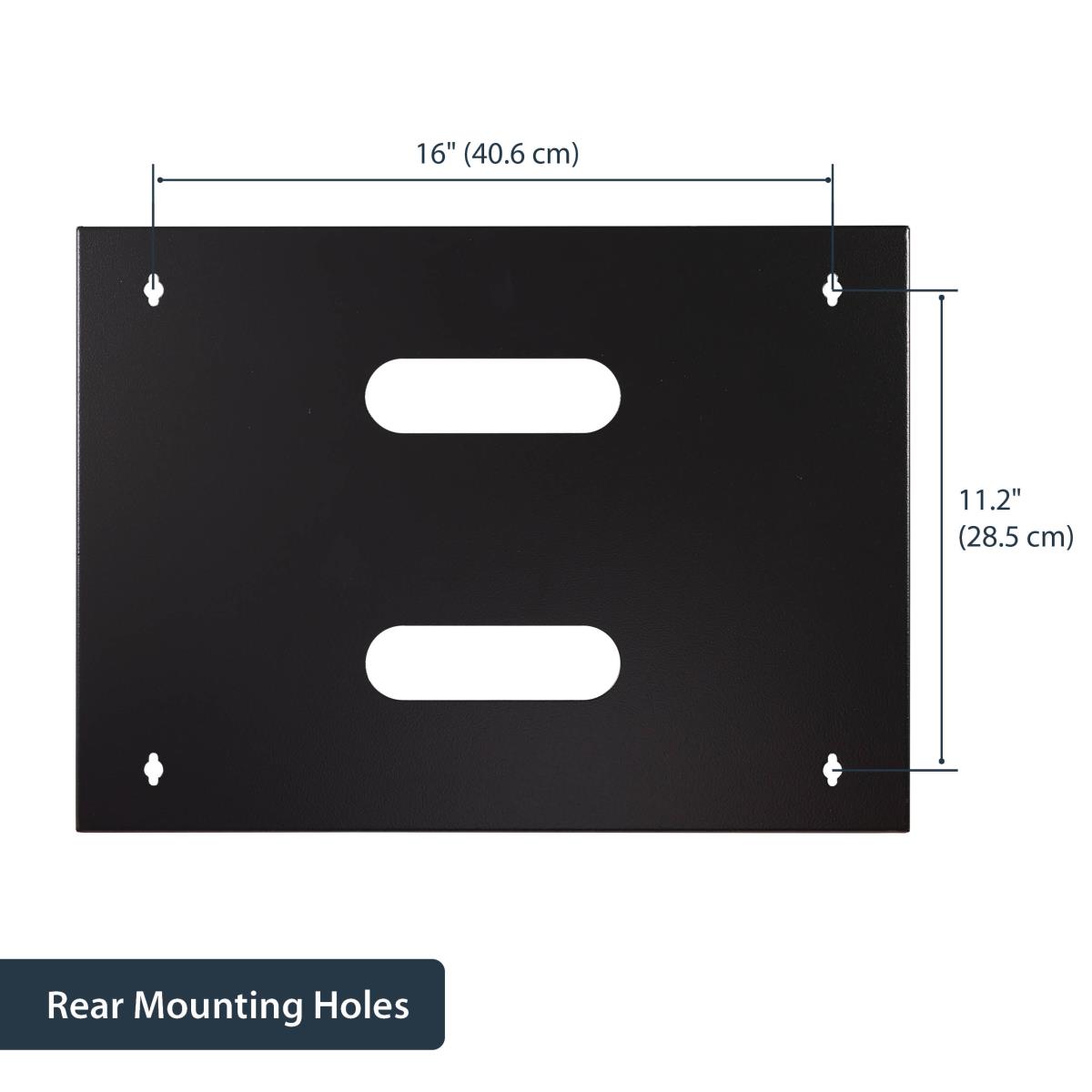

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring.

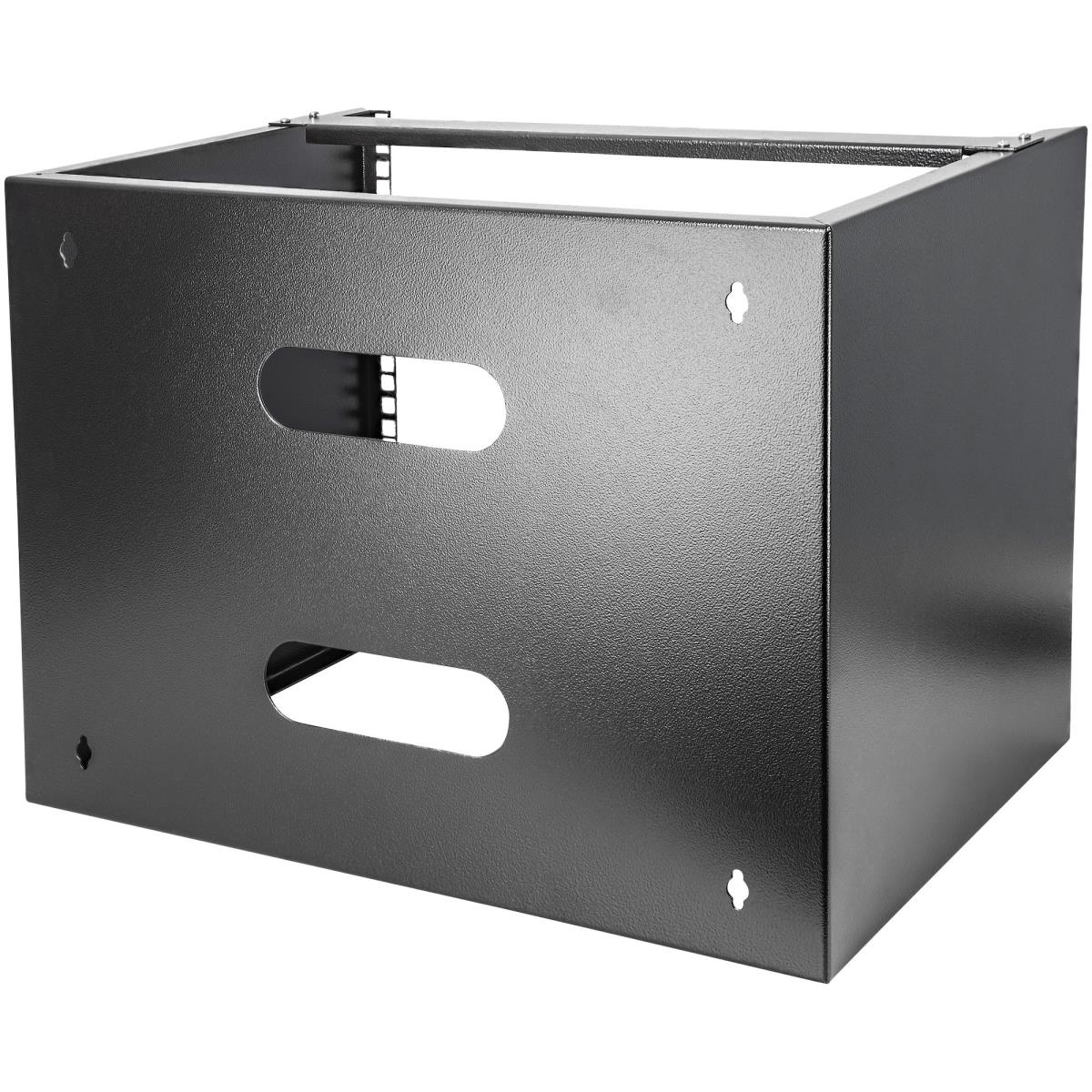

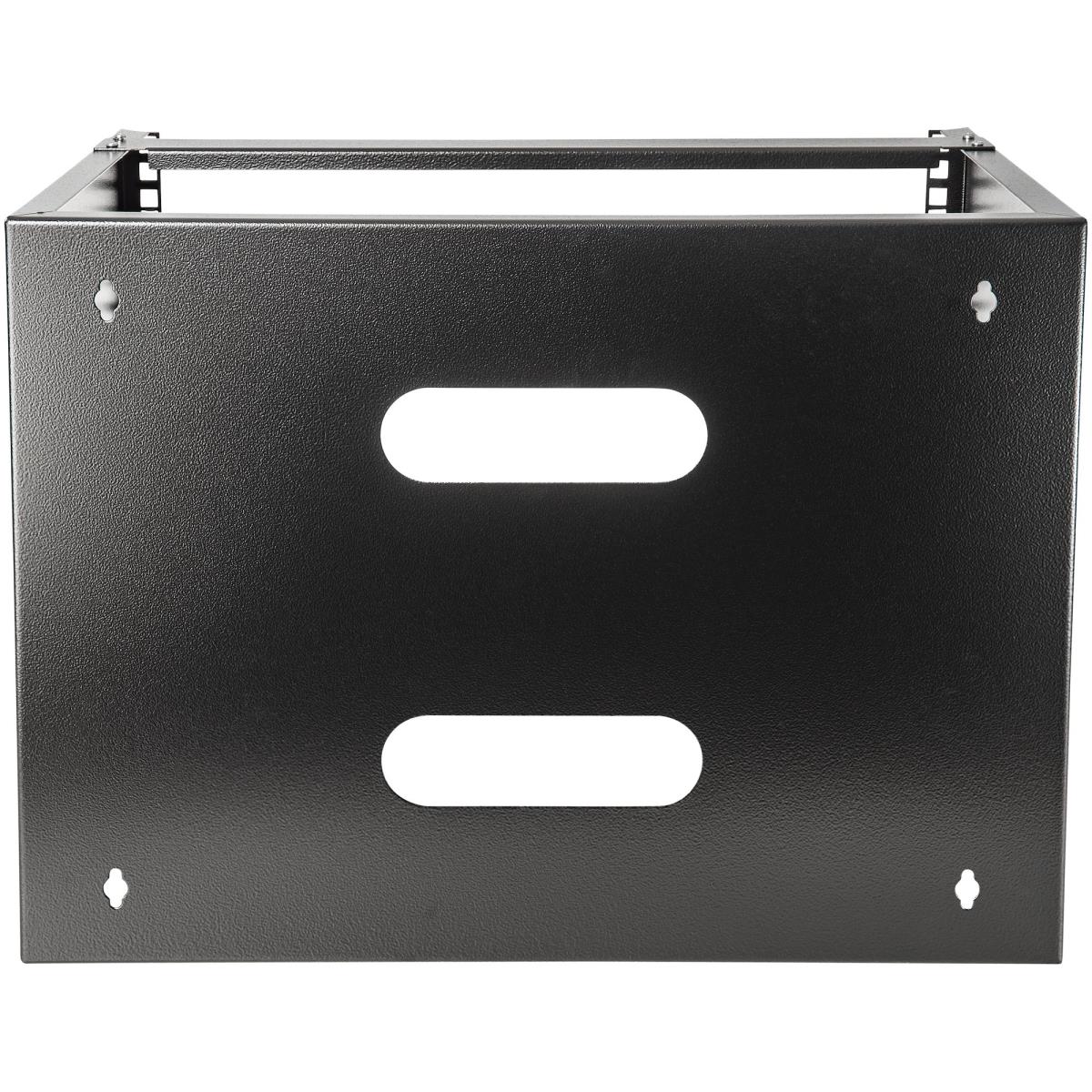

The rack also features a rear access panel that can be used to easily run cabling into the rack.
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer or more rack units, StarTech.com also offers a 6U wall-mount bracket, and a 12U wall-mount bracket.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 390 mm |
| Package width | 550 mm |
| Package height | 416 mm |
| Package weight | 7.6 kg |
| Mounting depth (max) | 30.5 cm |

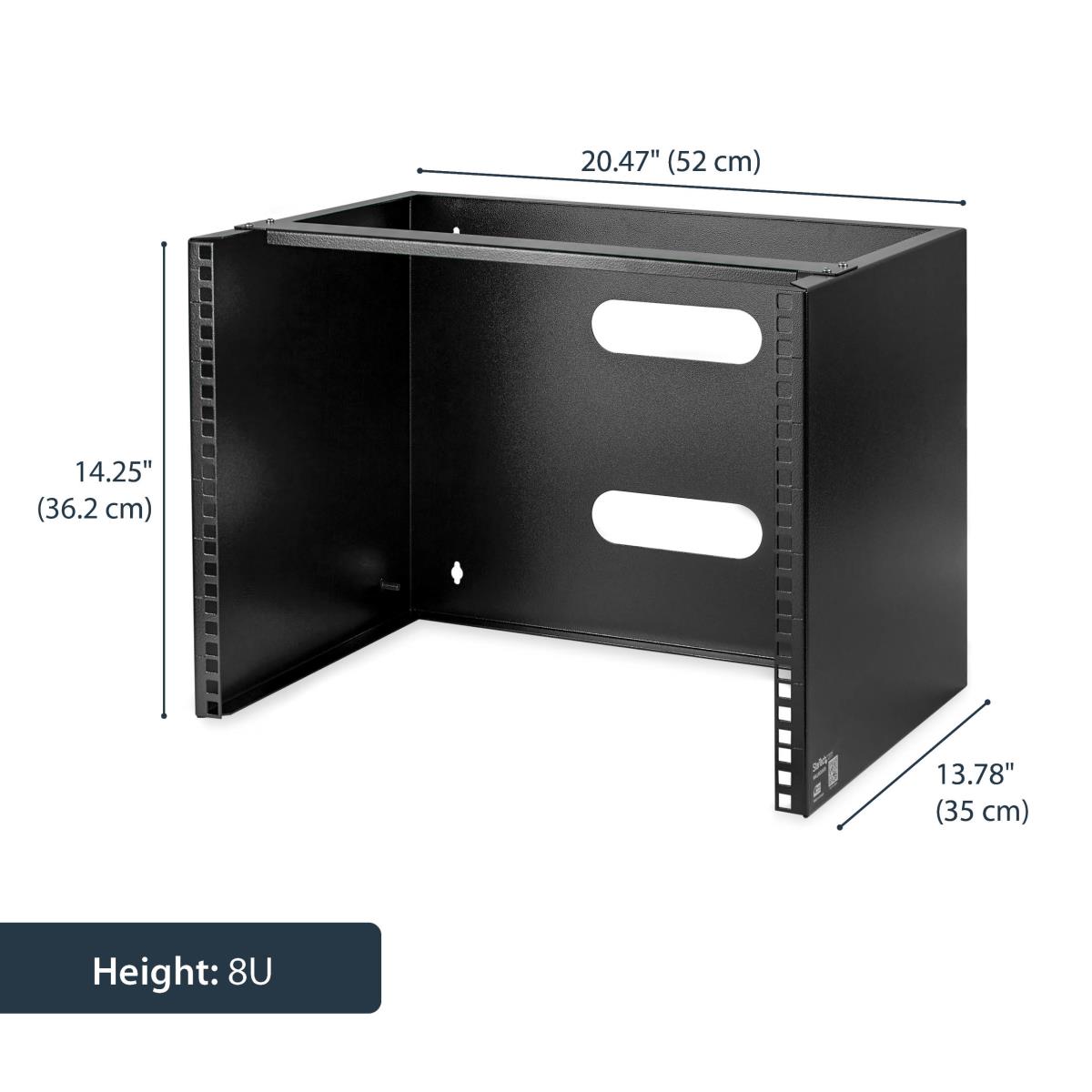

| Width | 500 mm |
| Depth | 349 mm |
| Height | 362 mm |
| Weight | 5.7 kg |
| Maximum weight capacity | 36.3 kg |
| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 25 |
| Screws included | Yes |
| Number of screws | 30 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 8U |
| Type | Wall mounted rack |
| Maximum weight capacity | 36.3 kg |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 25 |
| Package depth | 390 mm |
| Package width | 550 mm |
| Package height | 416 mm |
| Package weight | 7.6 kg |
| Screws included | Yes |
| Number of screws | 30 |
| Technical details | |
| Package width | 550 mm |
| Package height | 416 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | CE, RoHS |
| Rack capacity | 8U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 382 mm |
| Master (outer) case length | 522 mm |
| Master (outer) case height | 392 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
