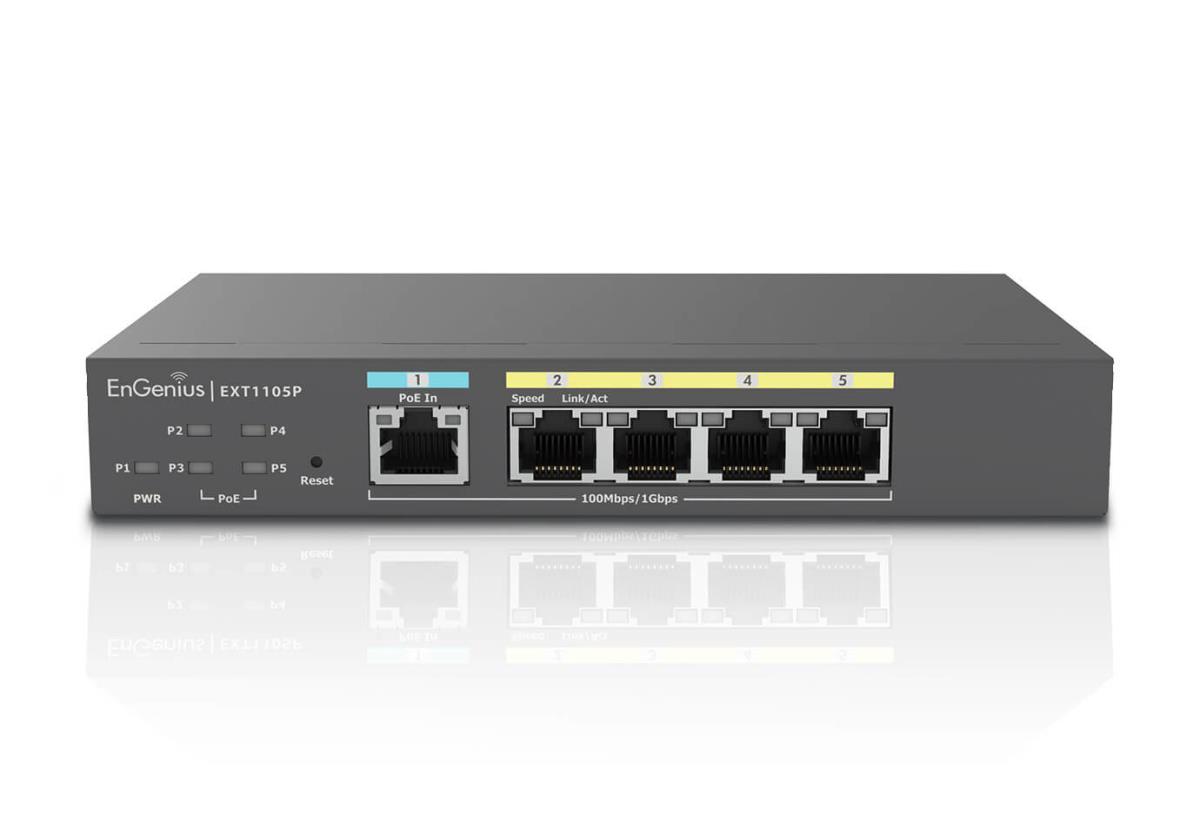

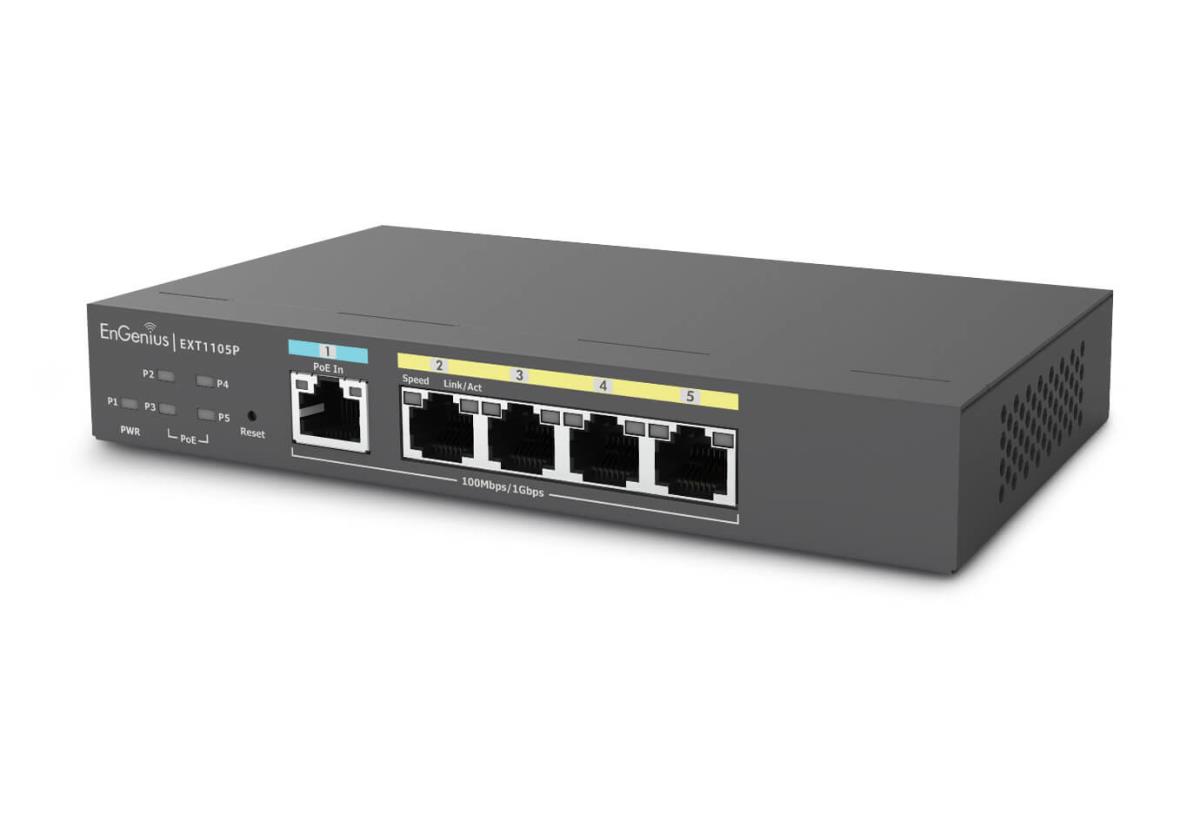

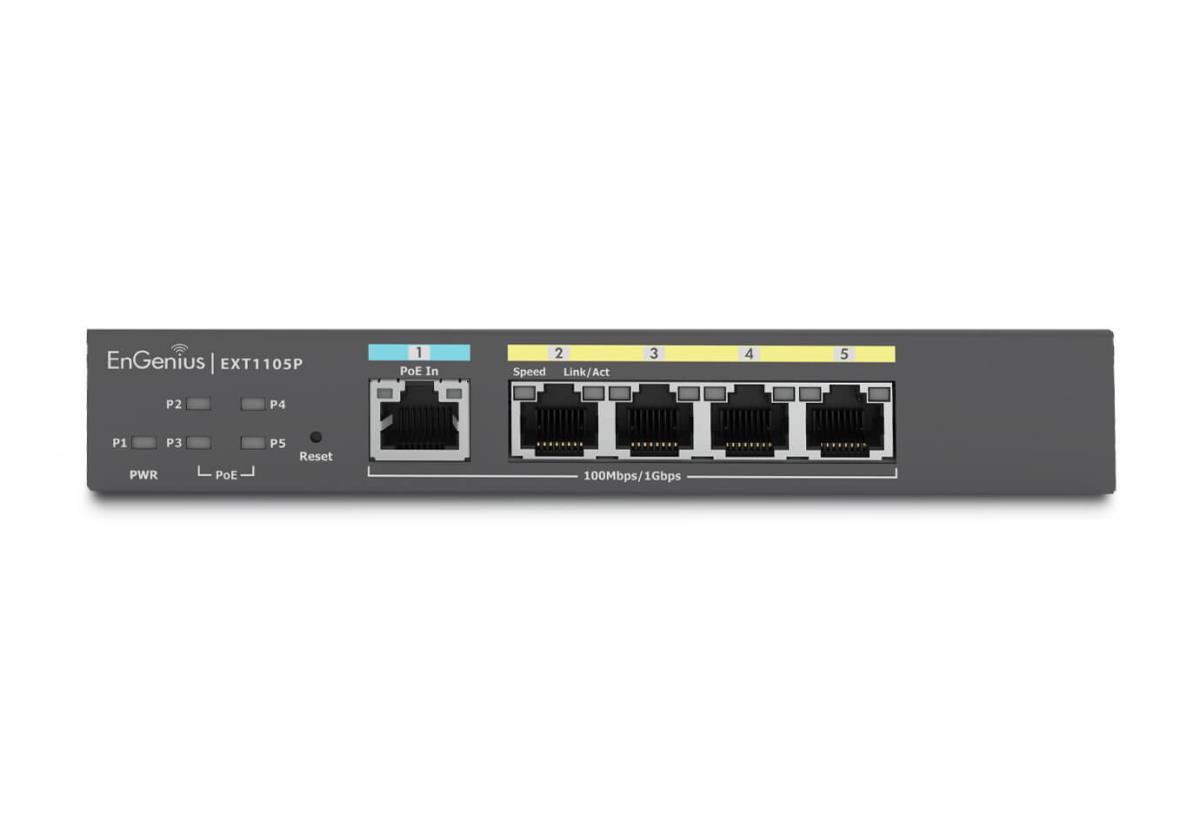

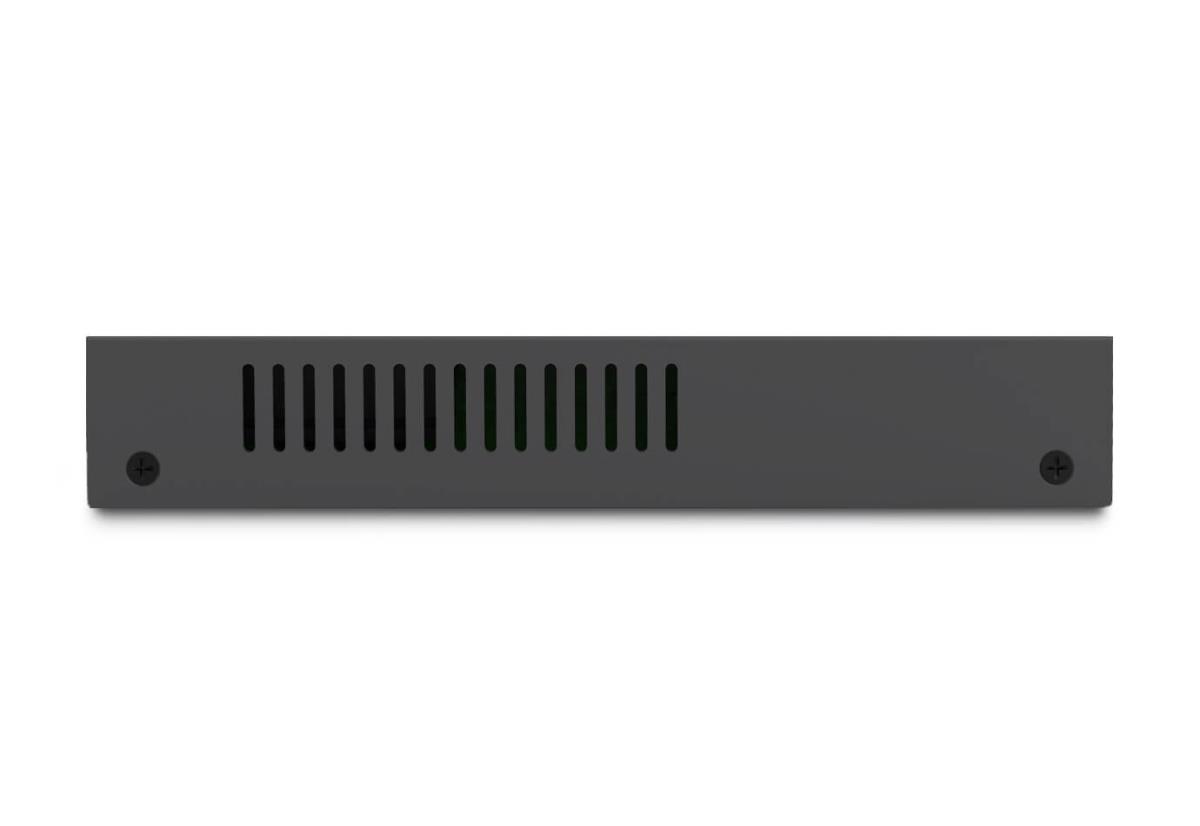

EU Product - Switch full managed Extender 5 Port 4x 1 GbE PoE at EXT1105P
Introduction
EnGenius Switch Extender, EXT1105P is a reliable 4-Port GE PoE and 1-Port GE PD PoE switch that takes your network efficiency to the next level. With its optimized Voice-VLAN feature, this switch is perfect for small businesses looking to enhance network performance while reducing expenses. The zero-touch provisioning and easy-to-use cloud-based management provide SMBs with a hassle-free network solution.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u |
| VLAN support | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 8 |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Number of multicast groups filtered | 8 |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Power |
| Performance | |
| Flash memory | 32 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 170 mm |
| Height | 27 mm |
| Weight | 450 g |
| Packaging data | |
| Package width | 226 mm |
| Package depth | 112 mm |
| Package height | 36 mm |
| Package weight | 528 g |
| Technical details | |
| Product colour | Black |
| Memory | |
| Flash memory | 32 MB |
| Indication | |
| LED indicators | Power |
| Logistics data | |
| Master (outer) case width | 238 mm |
| Master (outer) case length | 468 mm |
| Master (outer) case height | 245 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 12.7 kg |
