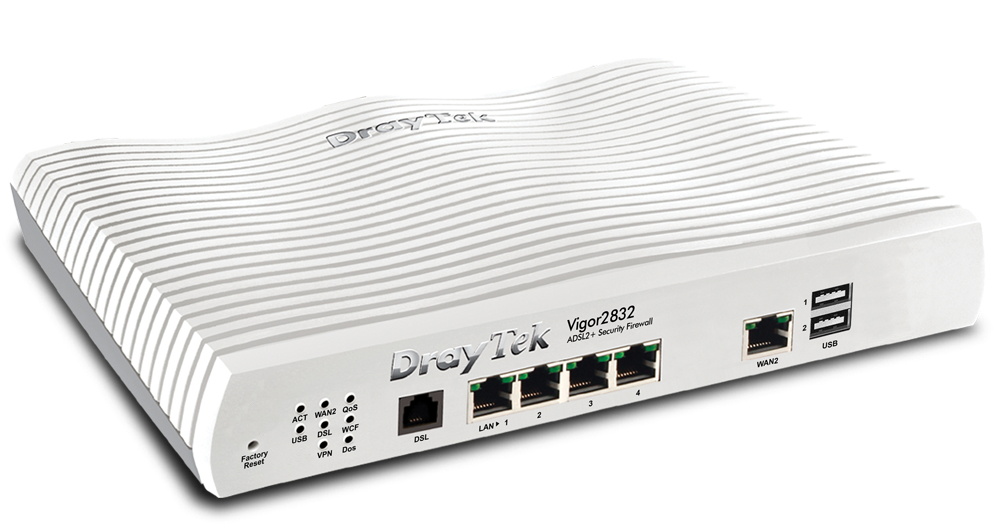

Draytek Vigor 2832 wired router Gigabit Ethernet White
Introduction
The Vigor 2832 series (including the Vigor 2832n) is our new router/firewall for ADSL lines. Alternative WAN ports can insead provide connectivity to Ethenet feeds, secondary xDSL modems or a 3G/4G cellular service using a supported USB adaptor.
Features
- 4-WAN Simultaneous : ADSL, Ethernet and USB 3G/4G
- Up to two 3G/4G/LTE USB modems can be used
- IPv6 Ready
- 802.11n 2.4GHz Wireless LAN (on Vigor 2832n)
- DrayTek Firewall with huge flexibility
- Temperature Monitoring (optional Thermometer)
- Wireless Guest Portal
- Multiple Private LAN Subnets
- SMS (Text Message) Alert via 3rd party server
- VLANs (Port, 802.1q based & Wireless)
- Supports DrayTek SmartMonitor software (30 users)
- Content Filtering (by keyword, data type or category)
- LDAP Integration for VPN and user access
- QoS (Layer 2&3, 802.1p & TOS/DCSP)
- Up to 32 VPN tunnels for LAN-to-LAN or teleworkers (PPTP/L2TP/IPsec)
- Up to 10 SSL VPN Tunnels
- VPN Trunk/Backup to remote sites
- USB Port for Printer, Logs or 3G/4G Modem
- Optional VigorCare Available
Specifications
Physical Interfaces
- LAN Ports (Switch)
- 4 X Gigabit Ethernet (1000Mb/s) Ports
- Port-Based VLAN (Inclusive/Exclusive Groups)
- 802.1q VLAN Tagging
- USB Ports:
- 2x USB 2.0 ports for 3G/4G Modem, Printer, USB storage or USB temperature sensor
- WAN Ports:
- WAN1 : ADSL, RJ11
- WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet
- WAN3 : USB Port for 3G/4G Cellular Modem
- WAN4 : USB Port for 3G/4G Cellular Modem
Performance
- Firewall: Up to 300Mb/s
- IPSec VPN: Up to 50Mb/s
Operating Requirements
- Rack Mountable (Optional Vigor RM1 mounting bracket required)
- Wall Mountable
- Temperature Operating : 0 °C ~ 45 °C
- Storage : -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 18 Watt Max.
- Dimensions: L240.96 * W165.07 * H43.96 ( mm )
- Operating Power: DC 12V (via external PSU, supplied)
- Power Requirements : 220-240VAC
