EU Product - M1200 AC1200 Wi-Fi Mesh Solution 1er-Pack - Router - WLAN
Introduction
A mesh Wi-Fi system built to provide a reliable network for large homes, Installation is easy—set up one unit and auto-sync the rest. Suitable for 100 Mbps internet access.
Fast and Reliable AC1200
Get speeds up to 300Mbps (2.4GHz) and 867 Mbps (5GHz) with MU-MIMO and beamforming enhance performance, delivering smooth streaming and gaming for multiple devices at once.
Small Size. Big Coverage.
Compact and elegant design fits naturally into any room while delivering seamless whole-home coverage.
Always Connected to the Best Signal
Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.
Wired Power Meets Whole-Home Performance
Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 100 Mbps per port, M1200 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.
Privacy Protected, Access Secured
Whole-Home VPN Protection
Compatible with mainstream VPN services for secure browsing and remote access across your network. Set up VPN directly on the router and automatically secure every connected device in your home.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | System |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | FCC, CE |
| Antenna direction type | Omni-directional |
| Maximum coverage | 70 m² |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11ac |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Features | |
| DHCP client | Yes |
| Processor cores | 1 |
| Bluetooth | No |
| Port forwarding | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Parental control | Yes |
| Built-in processor | Yes |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Protocols | |
| DHCP client | Yes |

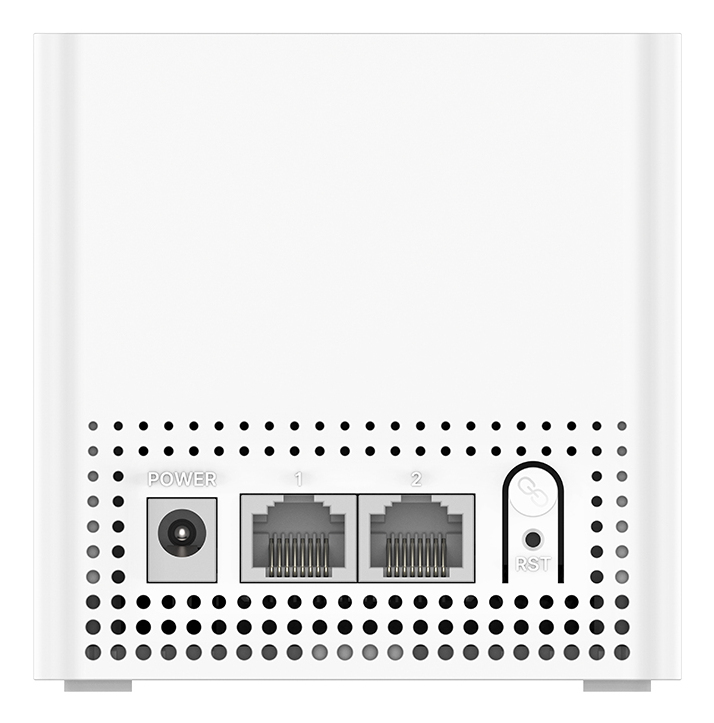

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Certificates | |
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 85 mm |
| Height | 86.5 mm |
| Weight | 336.6 g |
| Package width | 94 mm |
| Package depth | 90 mm |
| Package height | 147 mm |

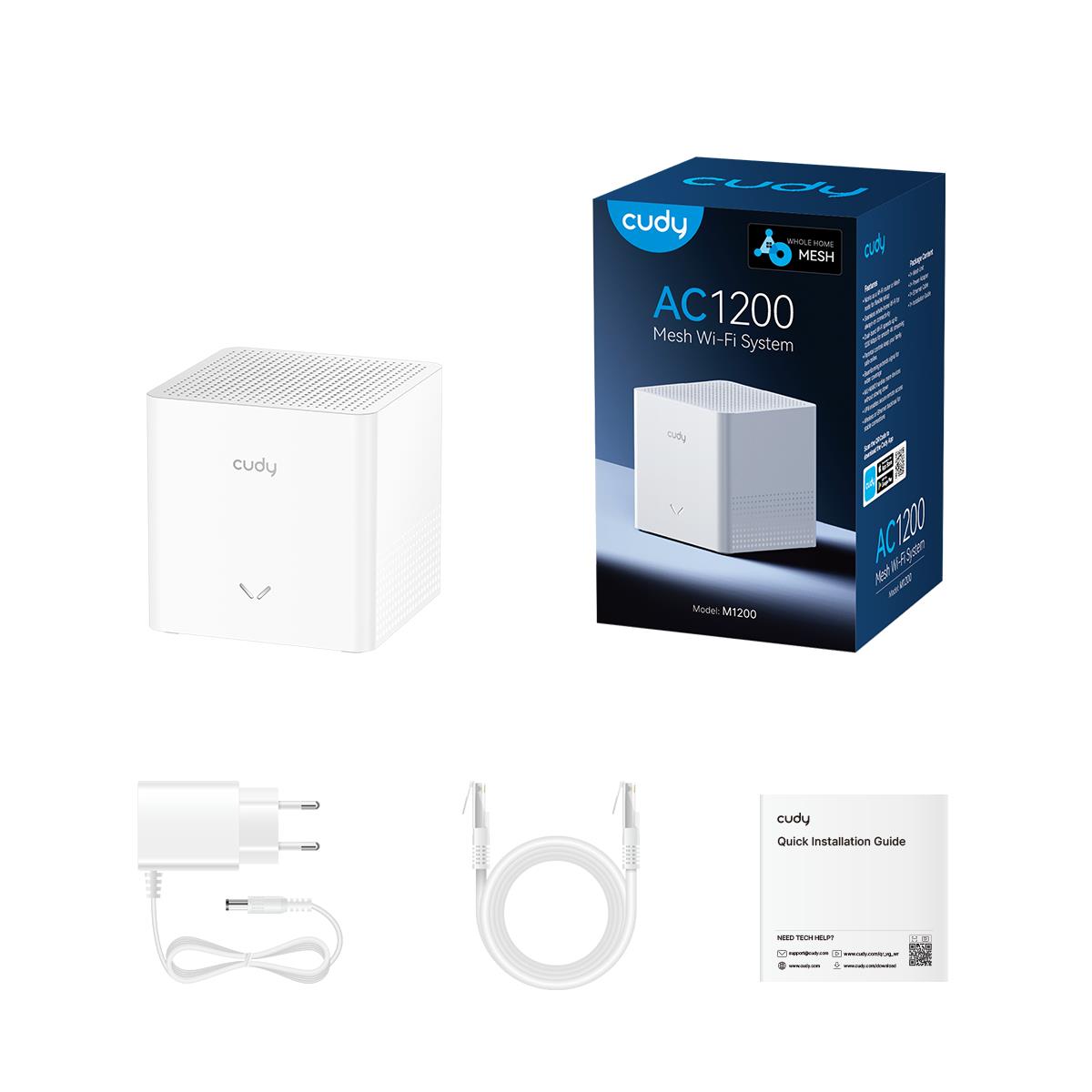

| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
| Number of units included | 1 pc(s) |
| Packaging data | |
| Package width | 94 mm |
| Package depth | 90 mm |
| Package height | 147 mm |
