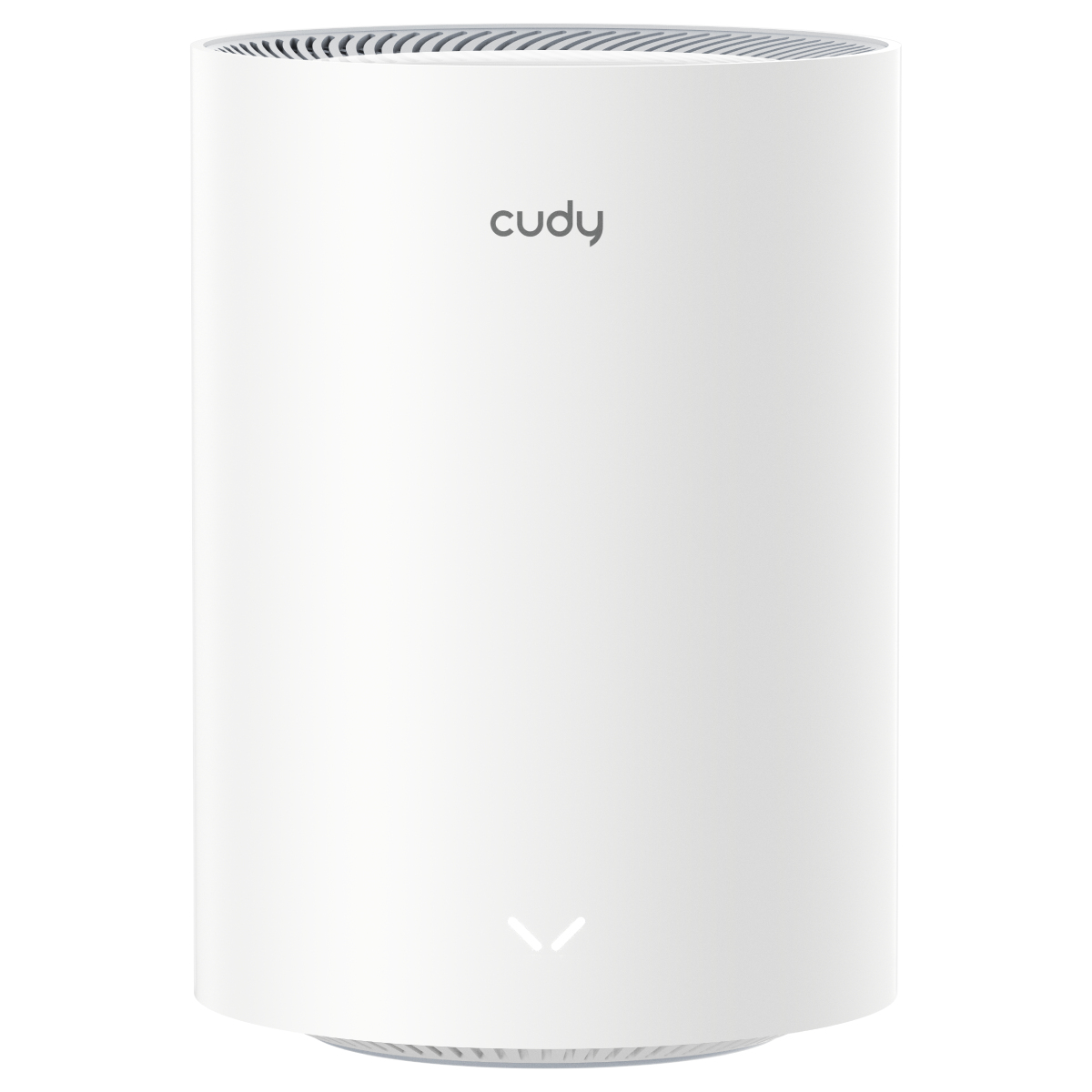

EU Product - M3600 - 1.0 - WLAN-System - 3 Router - Router - WLAN
Introduction
Create Seamless and Everywhere Wi-Fi
Easily Set Up the First Unit with Cudy App
Pick one Mesh unit and set it up on your phone via the Cudy App. The elegent cylinder design compliments your home in any style.
Power Up the Remaining Units for More Coverage
Mesh units in one package are pre-paired. Power on the remaining units between the first unit and Wi-Fi dead zones — they’ll form a seamless network once powered up.
Cudy Mesh
Super-Fast Roaming in Milliseconds
Create same-name Wi-Fi coverage throughout your home. The auto Wi-Fi switching is so fast that your gaming and streaming stay responsive while moving between Wi-Fi zones.
Parental Control
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Status, System |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Number of devices supported | 200 |
| Maximum coverage | 270 m² |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Guest access | Yes |
| VPN support | VPN Server VPN Client WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
| Tagged VLAN | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| Features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Processor cores | 4 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| BeamForming | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Parental control | Yes |
| Firmware upgradeable via | Network |
| Universal Plug and Play (UPnP) | Yes |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| MIMO | Yes |
| Processor frequency | 2 GHz |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 154.5 mm |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
