EU Product - AX3000 Wi-Fi 6 5G Router P5 - Router
Introduction
Cudy P5 adopts upgraded 3GPP Rel.16 standard and supports both 5G NSA and SA modes to work with all the mainstream carriers worldwide.
Qualcomm X62 5G modem, enabled by Advanced AI features and a 4nm process chip, provides data downlink speed up to 3.4 Gbps.
Dual SIM Slots
Dual SIM slots provide redundancy and keep the device always online.
Backup and Detachable Antennas
WAN/Cellular1/Cellular2 give you triple backups for a reliable network. To enhance signal quality, you may replace cellular antennas with extension antennas.
Online Redundancy
Dual SIM slot redundancy and WAN/Cellular backup provide high redundancy for the network.
Band Lock
4G/5G band lock makes it possible to lock the 4G working frequency to one or several bands to maintain operation stability.
TTL Settings
Support manual sets TTL values to meet ISP's requirements. Support set IPv4 TTL and IPv6 HL Values.
Advanced DNS Security
Encrypt your web browsing lookup with trustful partners, preventing eavesdropping and manipulation of DNS data via a man-in-the-middle attack.
A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features complete Qualcomm solutions, dual SIM slots, and a high-capacity AX3000 WiFi 6.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
| Mobile network | |
| SIM card slot | Yes |
| Mobile network generation | 5G |
| Short Message Service (SMS) | Yes |
| 3G standards | WCDMA |
| 4G standard | LTE-FDD |
| Dual SIM support | Yes |
| SIM card type | NanoSIM |
| 5G standard | Sub6 SA/NSA |
| 5G bands supported | 6000 MHz |
| Network | |
| Short Message Service (SMS) | Yes |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
| Port forwarding | Yes |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| VPN server | PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security | |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
| URL filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Network address translation (NAT) | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Guest access | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| IGMP snooping | Yes |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista |
| Processor frequency | 1000 MHz |
| Processor cores | 2 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Weight & dimensions | |
| Package width | 393 mm |
| Package weight | 1.23 kg |
| Package height | 60 mm |
| Package depth | 250 mm |
| Width | 152.5 mm |
| Weight | 670 g |
| Height | 48.2 mm |
| Depth | 253 mm |

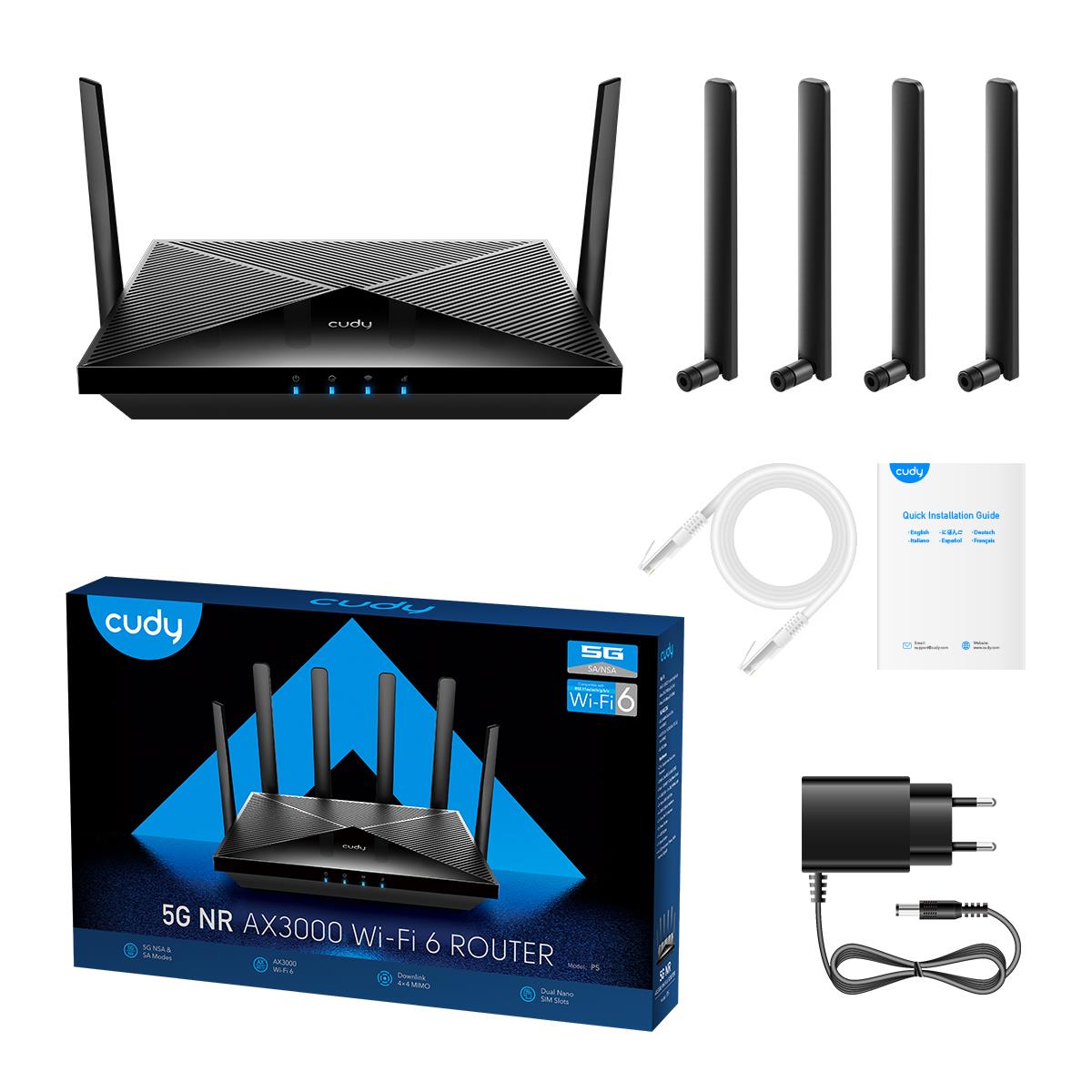

| Packaging content | |
| Package type | Box |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| Dual SIM support | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | 1024-QAM |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |

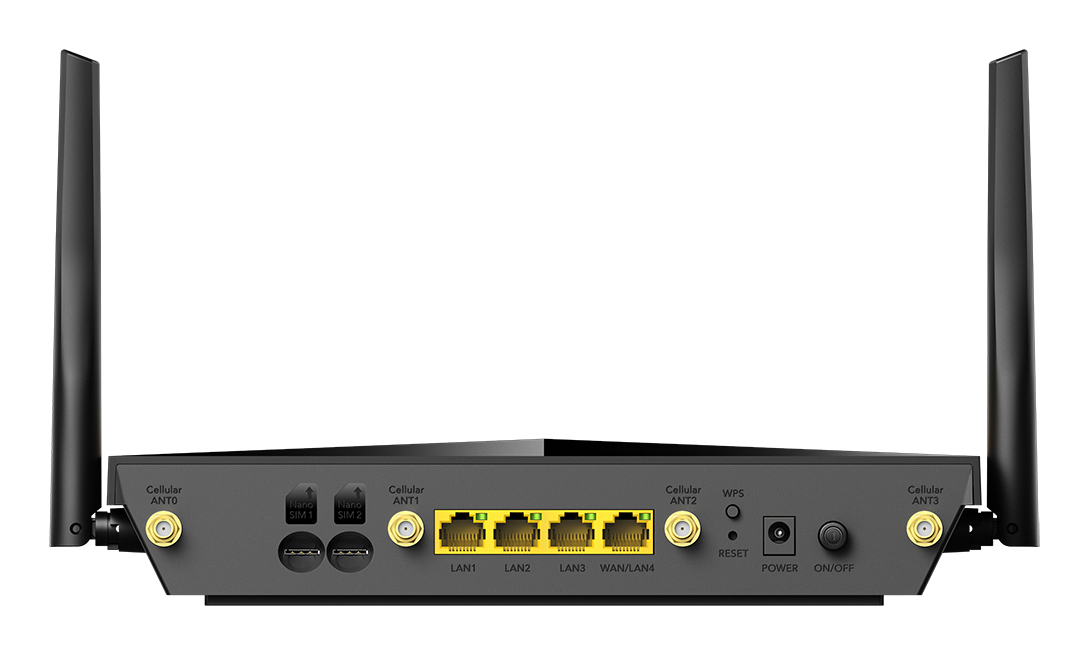

| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Design | |
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Other features | |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Antenna | |
| Antenna design | External |
| Detachable antenna(s) | Yes |
| Antennas quantity | 6 |
| Features | |
| Processor frequency | 1000 MHz |
| Processor cores | 2 |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Processor manufacturer | Qualcomm |
| Internal memory type | DDR3 |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 2.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| External power adapter | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Browser supported | Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Packaging data | |
| Package width | 393 mm |
| Package weight | 1.23 kg |
| Package type | Box |
| Package height | 60 mm |
| Package depth | 250 mm |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna included | Yes |
