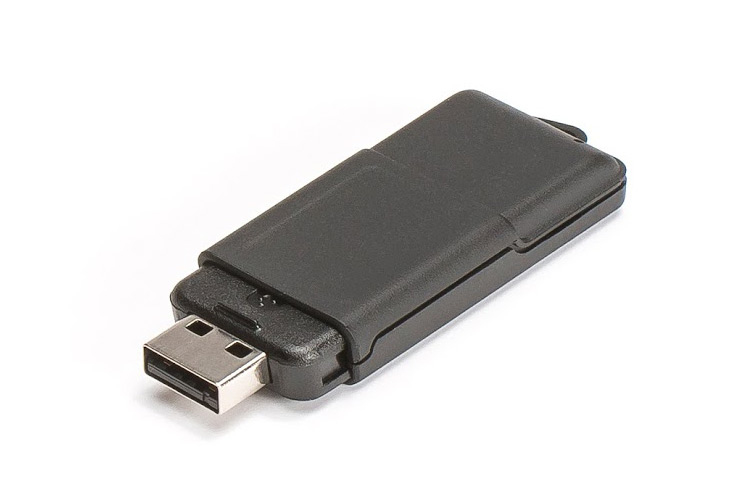

Identive SCL3711 smart card reader Indoor USB USB 1.1
Introduction
Identiv's SCL3711 Contactless Smart Card Reader is perfect for mobile users, featuring a solid, functional mechanical design that has no removable easy-to-lose parts. Although slim, the dimensions of this reader have been optimized to ensure the best radio frequency (RF) performance possible.
Specifications
| Interface | USB 2.0 full speed (12 Mbps) PC/SC v2.01 or libNFC Hardware abstraction layer (HAL) that sits on top of PC/SC API |
| Supported Standards | ISO/IEC 14443-3 Type A ISO/IEC 14443-3 Type B ISO/IEC 14443-4 MIFARE Classic 1K and 4K, MIFARE plus, DESFire, and Ultralight my-d NFC FeliCa NFC forum tag type 1, 2, 3, and 4 ISO/IEC 18092 peer-to-peer protocol up to 412 Kbps |
| Baud Rate (to Transponder) | Up to 848 Kbps |
| Power Supply | USB high bus powered |
| Antenna | ISO/IEC 14443 compliant design |
| Indicator | LED for connection status |
| Dimensions | 66 x 24 x 8 mm (2.60 x 0.94 x 0.31 in) |
| Weight | 10 g ( 0.35 oz) |
| Supported Operating Systems | Windows® 10, 8.x, 7, Vista, XP, 2000, and
Server 2003 Mac OS X, Linux Windows CE upon demand |
