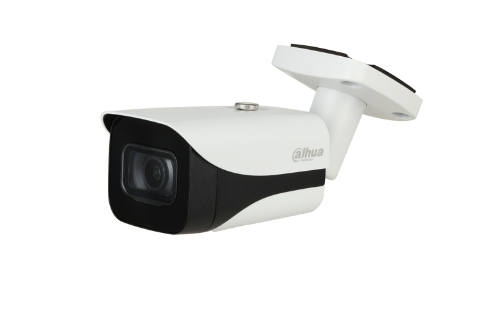

2MP WDR IR Bullet AI Network Camera

Introduction

Pro AI series contains Face Detection, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence algo-
rithms, significantly improved accuracy. Meanwhile, the series features
starlight and smart IR technology. This series fully protected from dust
and water, certified to IP67 standard.

Face Detection
Face Detection is a software application that automatically captures
faces from within a digital image or a video frame from a video source.
Dahua cameras use advanced deep learning algorithms and are trained
by a large number of face data sources, enabling the camera to locate
faces quickly and accurately from the video source and capture facial
images

Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accu-
racy. Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.

People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs this
information with deep learning algorithms to analyze and detect human
bodies and track target objects in real time. The camera provides statis-
tics for separate individuals’ entrance and exit with up to 95% counting
accuracy.

Protection(IP67, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) , the camera is the choice for installation in even the
most unforgiving environments.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Fog proof	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE-LVD:EN60950-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
People counting function	Yes
Design
Weatherproof	Yes
IK code	IK10
Fog proof	Yes
Form factor	Bullet
Product colour	White
Mounting type	Ceiling/wall
Protection features	Vandal proof, Water resistant
International Protection (IP) code	IP67
Housing material	Metal, Plastic
Camera
Adjustment shutter speed	Auto/Manual
Minimum illumination	0.0028 lx
Tilt angle range	0 - 90°
Pan range	0 - 360°
White balance	Auto, Lamp, Manual, Natural, Outdoor
Angle of rotation	360°
Camera shutter speed	1/3~1/100000 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	109°
Lens viewing angle, vertical	57°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Maximum aperture number	1.5
Recognize distance (wide)	9 m
Recognize distance (tele)	29 m
Observe distance (wide)	18 m
Observe distance (tele)	58 m
Identify distance (wide)	4 m
Identify distance (tele)	15 m
Detect distance (wide)	44 m
Detect distance (tele)	146 m
Closest focusing distance	0.8 m
Focus	Motorized
Optical zoom	5x
Focal length range	2.7 - 13.5 mm
Night vision
Night vision	Yes
Night vision distance	50 m
LED type	IR
Number of illumination LEDs	4
Video
Noise reduction	Yes
Privacy masking	Yes
Flip & mirror	Yes
Image stabilizer	Yes
Gain control type	Auto/Manual
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate	H.264: 32~8192Kbps; H.265: 19~7424Kbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
Analog signal format system	PAL
Frame rate	25 fps
Video streaming	Yes
Total megapixels	2 MP
Audio
Voice codecs	AAC, G.711Mu, G.711a, G.723, G.726
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Network
Networking standards	IEEE 802.3af
Quality of Service (QoS) support	Yes
Number of users	20 user(s)
Ethernet LAN	Yes
Supported network protocols	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Storage
ROM capacity	128 MB
Maximum memory card size	256 GB
Compatible memory cards	MicroSD (TransFlash)
Internal memory	512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Abandoned object
Video motion detection	Yes
Active tampering alarm	Yes
Management features
Web-based management	Yes
Power
Power source type	DC, PoE
Power consumption (max)	9.4 W
Power consumption (Power over Ethernet (PoE))	10.3 W
DC output voltage	12
Certificates
Certification	CE-LVD:EN60950-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%
System requirements
Mobile operating systems supported	Android, iOS
Weight & dimensions
Width	273.2 mm
Depth	95 mm
Height	95 mm
Weight	1.11 kg
Package weight	1.51 kg
Packaging data
Package weight	1.51 kg
Packaging content
Number of cameras	1
Other features
Focus	Motorized
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
