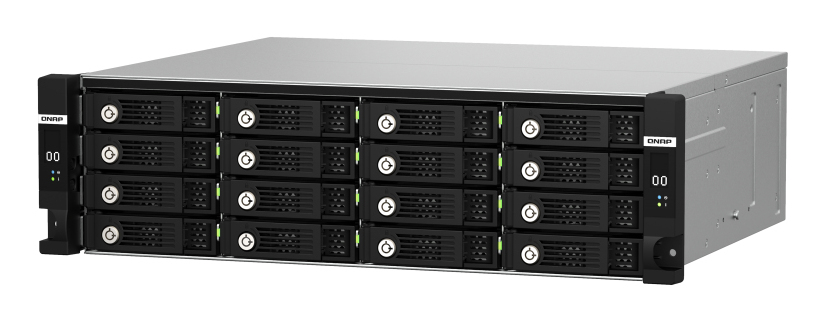

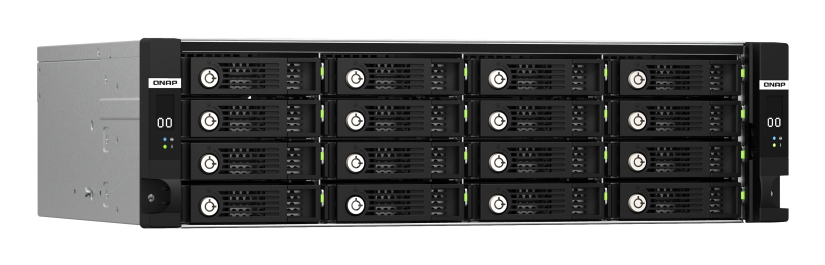

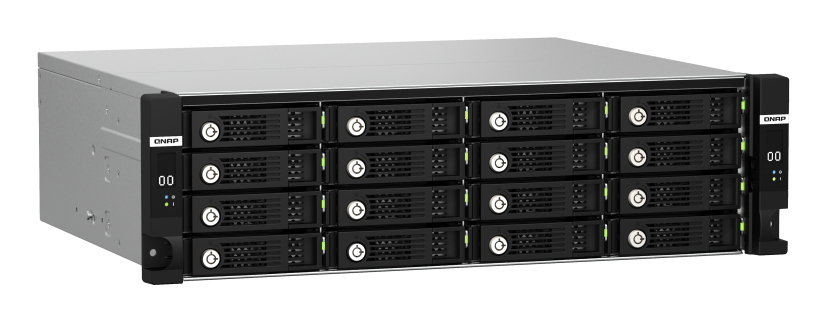

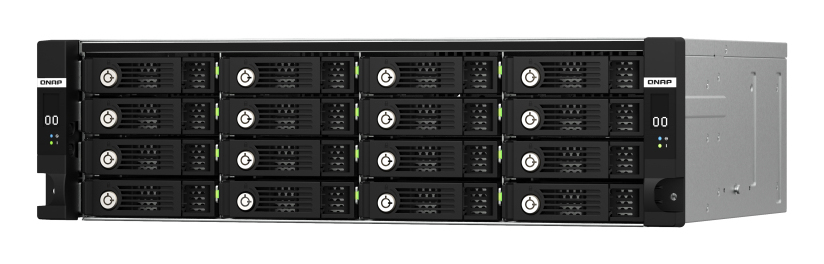

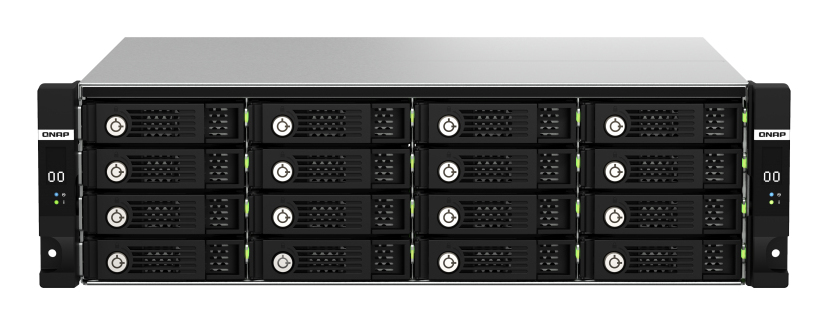

QNAP SYSTEMS TL-R1620SDC QNAP SYSTEMS 16-bay 3U rackmount SAS 12Gbps JBOD dual controller expansion enclosure with SAS expander 2.5in/3.5in SAS 12Gbps drives (2.5in SATA 6Gbps drives w/optional QDA-SA2 accessory) 3 x SFF-8644 Mini-SAS HD SAS 12Gbps ports per controller redundant PSU

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

TL-R1620SDC QNAP SYSTEMS 16-bay 3U rackmount SAS 12Gbps JBOD dual controller expansion enclosure with SAS expander 2.5in/3.5in SAS 12Gbps drives (2.5in SATA 6Gbps drives w/optional QDA-SA2 accessory) 3 x SFF-8644 Mini-SAS HD SAS 12Gbps ports per controller redundant PSU

Part No:TL-R1620SDC

Stock:1 In Stock

EAN Code:4713213519240

£2,684.78 Excl. VAT

£3,221.74 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

16-bay 3U rackmount SAS 12Gbps JBOD dual controller expansion enclosure with SAS expander 2.5in/3.5in SAS 12Gbps drives (2.5in SATA 6Gbps drives w/optional QDA-SA2 accessory) 3 x SFF-8644 Mini-SAS HD SAS 12Gbps ports per controller redundant PSU

Introduction

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

Failure-resistant with a dual-controller, dual-path design
Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks.

Connect up to 7 expansion units for petabyte-level storage capacity
The base NAS requires QES 2.1.1 (or later) and either Mini-SAS HD (SAS 12Gb/s SFF-8644), Mini-SAS (SAS 6Gb/s SFF-8088) ports or a PCIe-based SAS expansion card.

Highly efficient, reliable and scalable

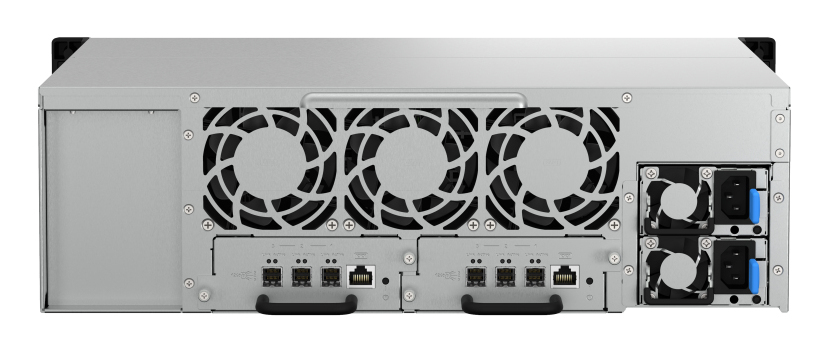

The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Both controllers have three Mini-SAS HD (SFF-8644) ports, and each SAS wide port combines four SAS 12Gb/s channels for up to 48Gbps bandwidth.

Supports SAS DataBolt technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sdc has an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sdc uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sdc at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Storage Management
Simply connect a TL-R1620Sdc to a dual-controller QNAP NAS and power it on. The NAS will detect the drives in the TL-R1620Sdc as newly-installed local drives. By using the Storage Manager app on the host NAS, you can configure and manage the TL-R1620Sdc’s storage space by setting RAID groups, storage pools and snapshots. The TL-R1620Sdc can also be configured as the storage volume of the host NAS, allowing you to easily expand NAS storage to accommodate massive data or backup files.

Leverage the 6Gbps SAS to SATA drive adapter to install 2.5-inch SATA SSDs
While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA2 adapter allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA2 into the dual-controller TL-R1620Sdc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.

Specifications

Storage
Number of storage drives supported16
Storage drive size2.5/3.5"
Supported storage drive interfacesSAS-2, SAS-3
Hot-swapYes
Ports & interfaces
USB connectivityNo
Technical details
Rack mountingYes
Rack capacity3U
Number of fans3 fan(s)
LED indicatorsYes
Hot-swapYes
Host interface3 x 12Gb/s SAS 3.0 wide ports / SFF-8644
Fan diameter8 cm
Data transfer rate12 Gbit/s
Product colourBlack
Harmonized System (HS) code84733080
Design
Product typeHDD/SSD enclosure
On/off switchYes
Rack mountingYes
Rack capacity3U
Number of fans3 fan(s)
LED indicatorsYes
Fan diameter8 cm
Product colourBlack
Performance
Data transfer rate12 Gbit/s
Power
Power source typeAC
AC adapter input voltage100-240 V
Packaging data
Package weight18 kg
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Weight12.3 kg
Width482.2 mm
Depth425.3 mm
Height131.3 mm
Package weight18 kg
Packaging content
Screws includedYes
ManualYes
Cables includedAC, SAS
Other features
Host interface3 x 12Gb/s SAS 3.0 wide ports / SFF-8644
Logistics data
Harmonized System (HS) code84733080
