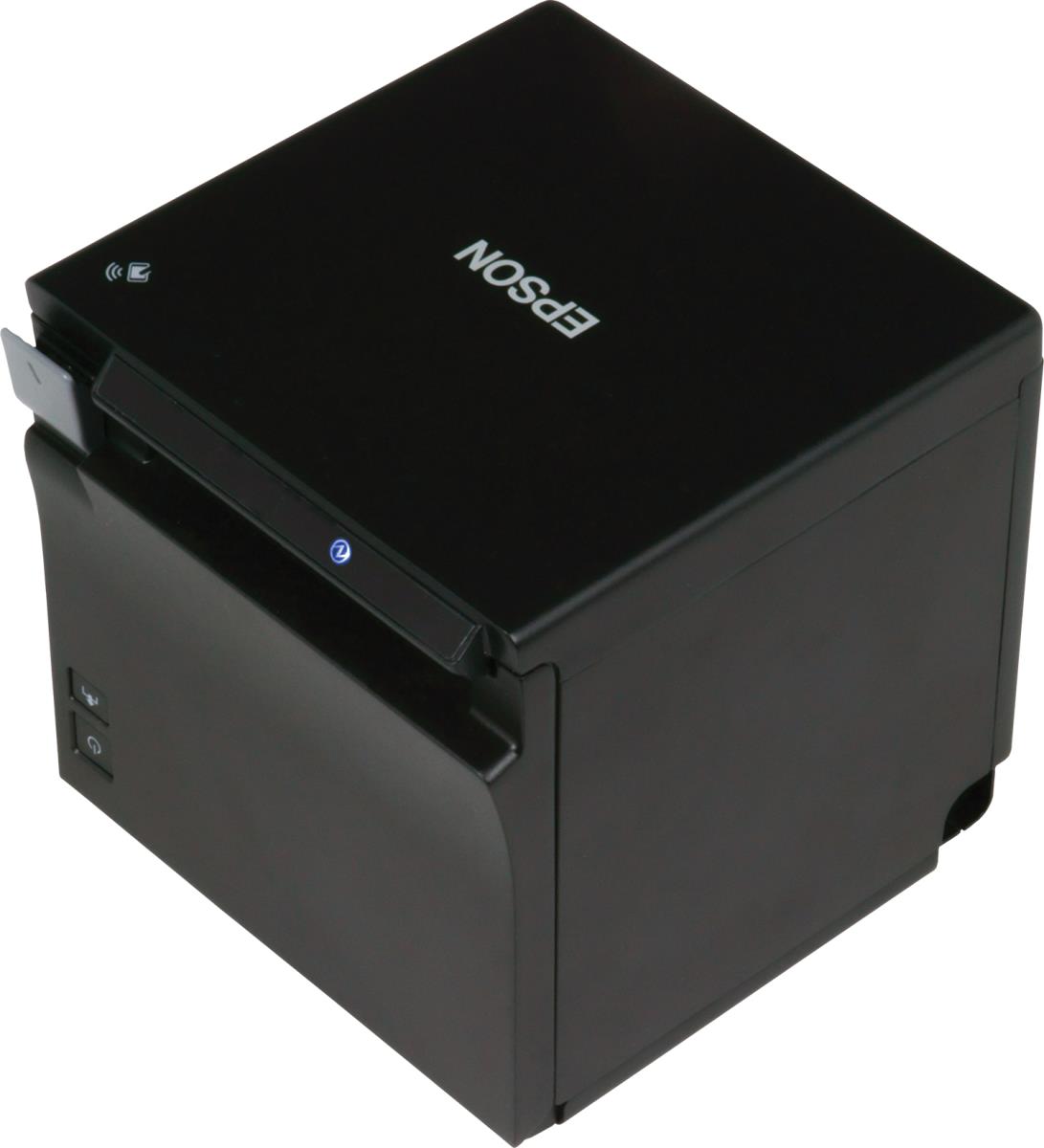

EU Product - TM-m50, USB, RS232, Ethernet, ePOS, black
Introduction
Legacy POS receipt printer
The TM-m50 provides similar capabilities to a traditional ‘legacy’ POS printer including a serial connection port, USB-A connection and 180dpi. High volume POS customers will benefit from fast print speeds of up to 350mm/s, and be confident that the printer is supported by Epson’s proven quality and reliability.
Compact cube design
The cube design, available in white or black, means it will complement the aesthetics of any modern retail store, and the small footprint means it can fit easily on the counter-top or underneath on the shelf edge. Users of the TM-m50 will also benefit from easy paper loading and advanced paper saving options.
Reliable and easy to use
Epson is the market leader in POS printing{s1 with a heritage of producing high-quality and reliable systems. The TM-m50 is a highly intuitive out-of-the-box solution that features: fast print speeds of up to 350mm/s, enhanced printhead and auto-cutter, and flexible drop-in paper loading (front or top).
Legacy print features
The TM-m50 is a feature packed, high performance solution with the legacy features required to allow customers seamless integration into their current systems.
Enhanced connectivity
Flexible connectivity options include serial port and USB-A.
Specifications
| Printing | |
|---|---|
| Character sets | ANK |
| Type | POS printer |
| Print technology | Direct thermal |
| Print speed | 350 mm/sec |
| Maximum resolution | 180 x 180 DPI |
| Print speed (receipt) | 350 mm/sec |
| Printing characters | Text, Graphic, Barcode |
| Performance | |
| Character sets | ANK |
| Type | POS printer |
| Print technology | Direct thermal |
| Print speed | 350 mm/sec |
| Maximum resolution | 180 x 180 DPI |
| Paper handling | |
| Supported paper width | 58 mm - 80 mm (Breite) |
| Maximum roll diameter | 8.3 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232C |
| Near Field Communication (NFC) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Print technology | |
| Type | POS printer |
| Print technology | Direct thermal |
| Print speed | 350 mm/sec |
| Column capacity | 48/57 |
| Print quality | |
| Maximum resolution | 180 x 180 DPI |
| Technical details | |
| Mean cycles between failures (MCBF) | 70000000 |
| Character sets | ANK |
| Built-in sensors details | Paper End Sensor, Papier-Sensor |
| Product colour | White |
| Buffer size | 12 KB |
| Autocutter durability | 2.2 million cuts |
| Products per pallet | 128 pc(s) |
| Cutter | Yes |
| Print head life | 200.000.000 Impulse |
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Master (outer) case width | 400 mm |
| Master (outer) case gross weight | 0 g |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Country of origin | China |
| Products per pallet (UK) | 192 pc(s) |
| Products per master (outer) case | 4 pc(s) |
| Pallet weight (UK) | 0 g |
| Lifetime | 20000000 lines |
| Font styles | ANK |
| Harmonized System (HS) code | 84433210 |
| Features | |
| Mean cycles between failures (MCBF) | 70000000 |
| Character sets | ANK |
| Built-in sensors details | Paper End Sensor, Papier-Sensor |
| Mean time between failures (MTBF) | 360000 h |
| Product colour | White |
| Autocutter durability | 2.2 million cuts |
| Sound pressure level (printing) | 55 dB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Cutter | Yes |
| Print head life | 200 km |
| Country of origin | China |
| Wall mountable | Yes |
| Mounting position | Horizontal/Vertical |
| Half-cutter | Yes |
| Tablet charge & sync | No |
| Design | |
| Product colour | White |
| Memory | |
| Buffer size | 12 KB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Endurance | |
| Mean time between failures (MTBF) | 360000 h |
| Power | |
| Power source type | AC |
| Power plug type | Type C |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 127 mm |
| Depth | 127 mm |
| Height | 127 mm |
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 230 mm |
| Package weight | 2.37 kg |
| Weight | 1.3 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 230 mm |
| Package weight | 2.37 kg |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per pallet | 128 pc(s) |
| Pallet gross weight | 0 g |
| Master (outer) case width | 400 mm |
| Master (outer) case gross weight | 0 g |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Products per pallet (UK) | 192 pc(s) |
| Products per master (outer) case | 4 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| Mean cycles between failures (MCBF) | 70000000 |
| Buffer size | 12 KB |
| Print head life | 200.000.000 Impulse |
| Print head life | 200 km |
