IiYAMA OPC51204BC-1 IiYAMA OPC51204BC-1

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

OPC51204BC-1 IiYAMA OPC51204BC-1

Part No:OPC51204BC-1

Stock:17 In Stock

EAN Code:4948570033331

£463.99 Excl. VAT

£556.79 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

OPC51204BC-1

Introduction

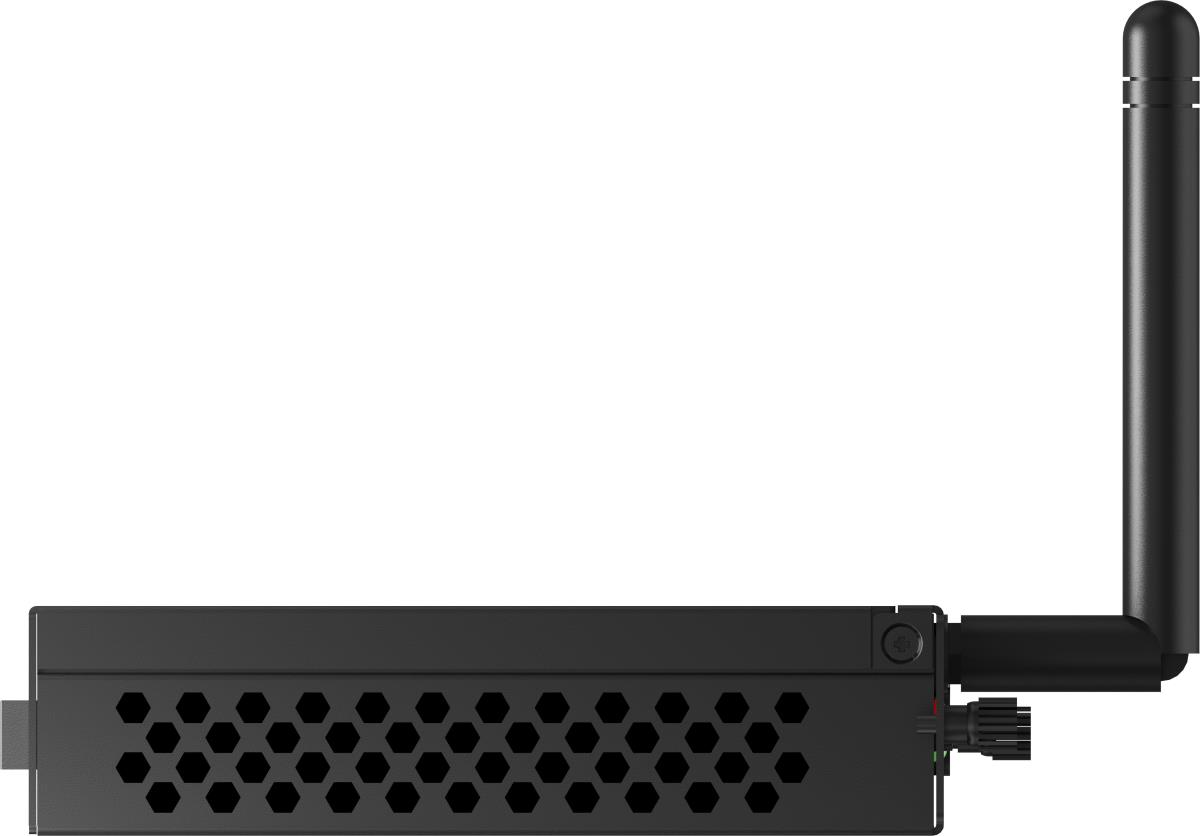

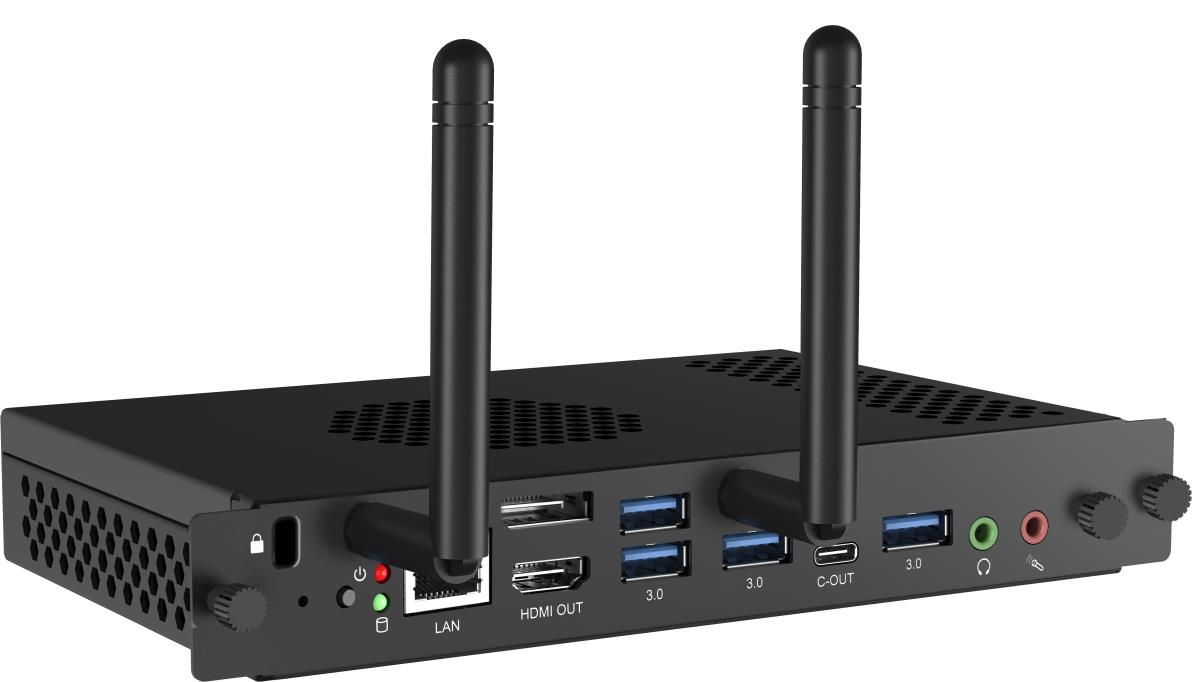

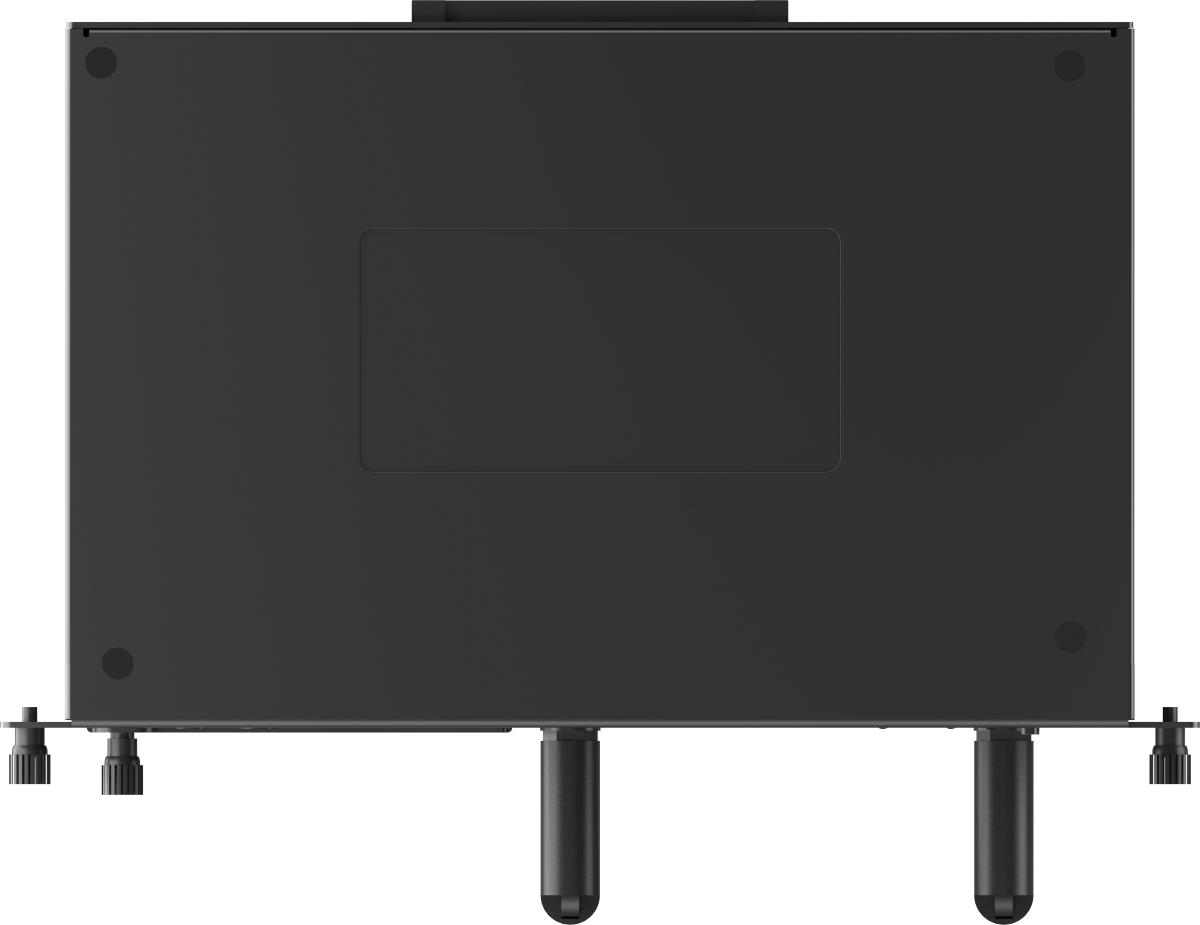

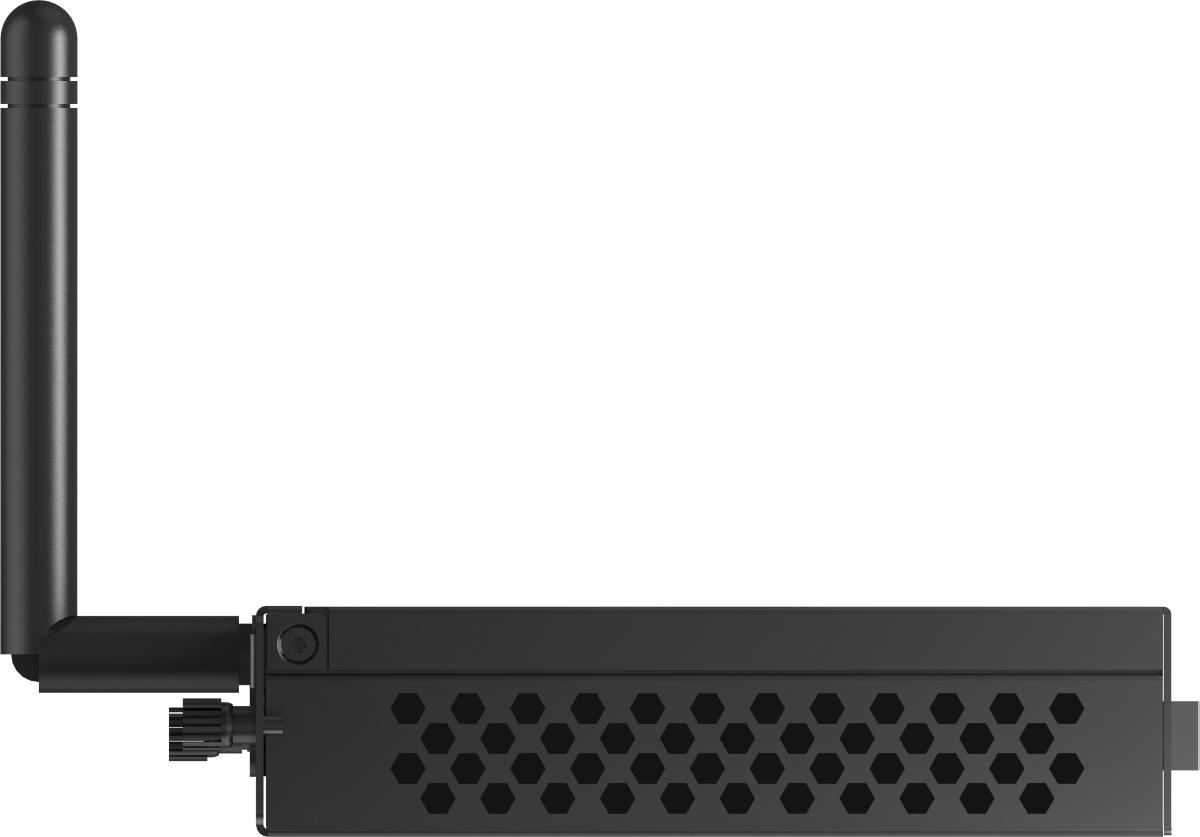

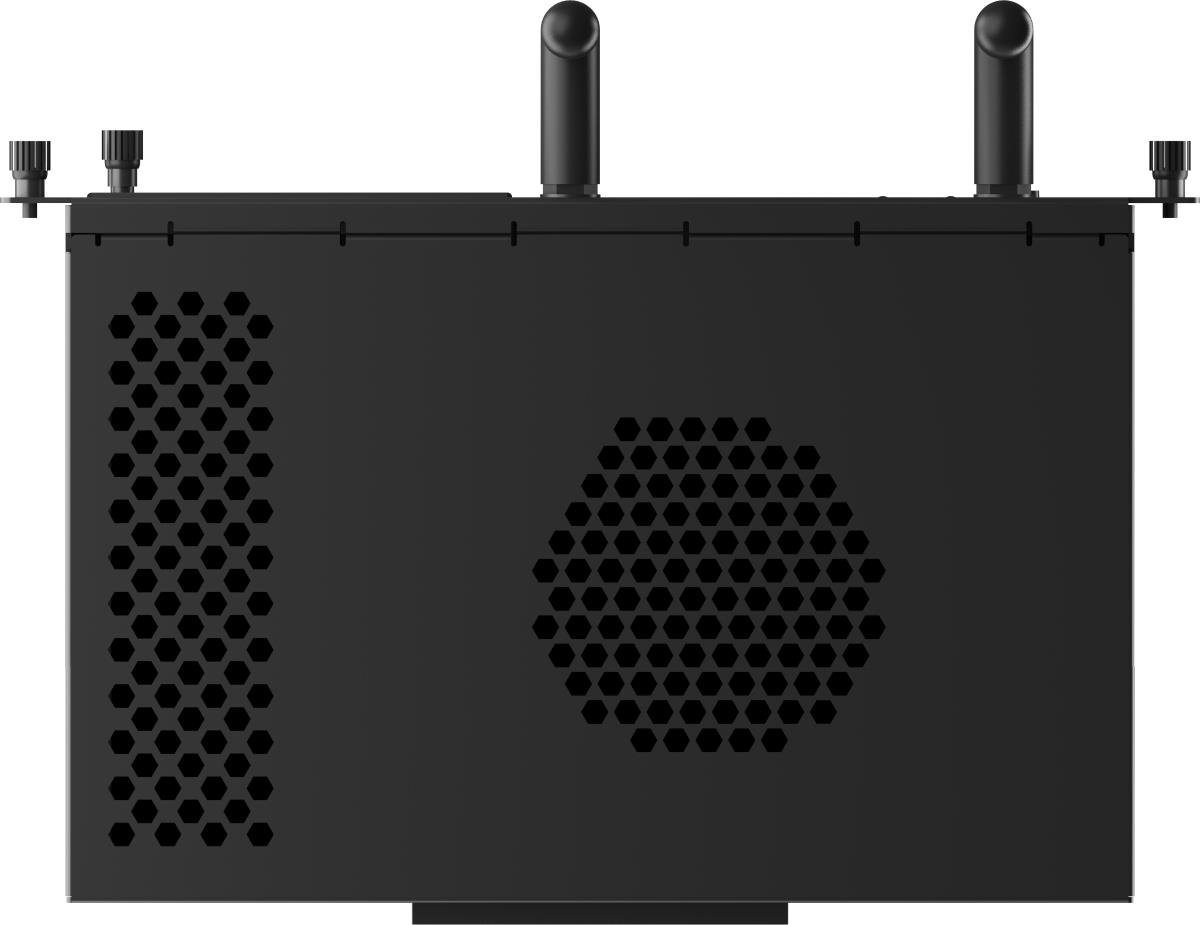

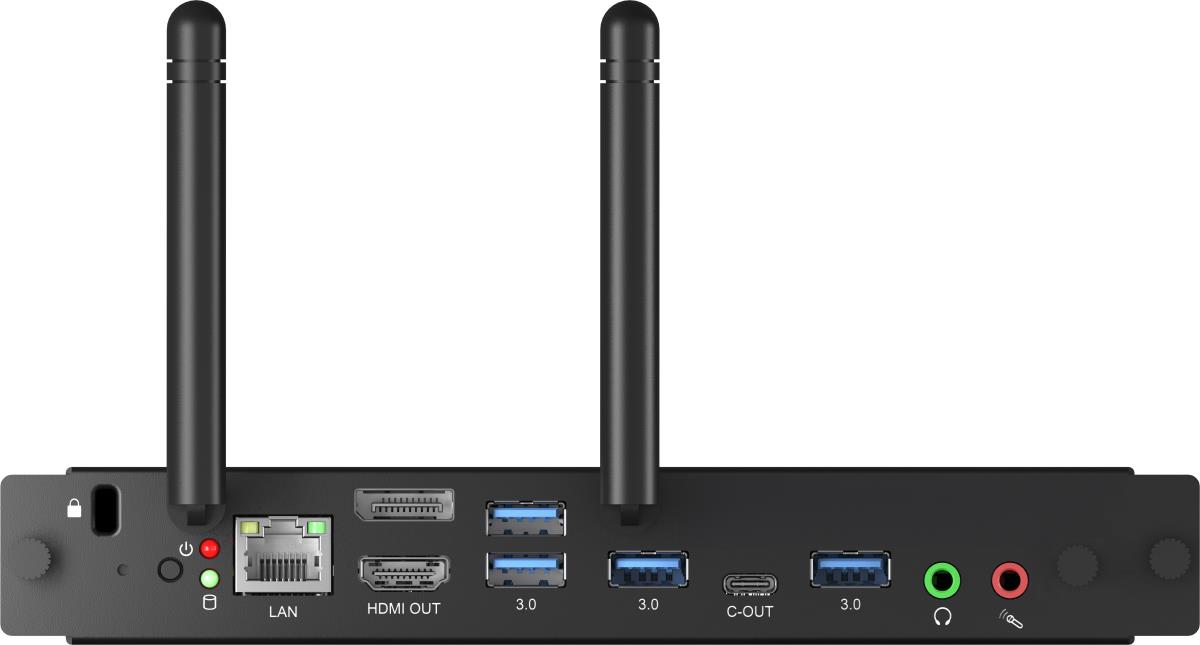

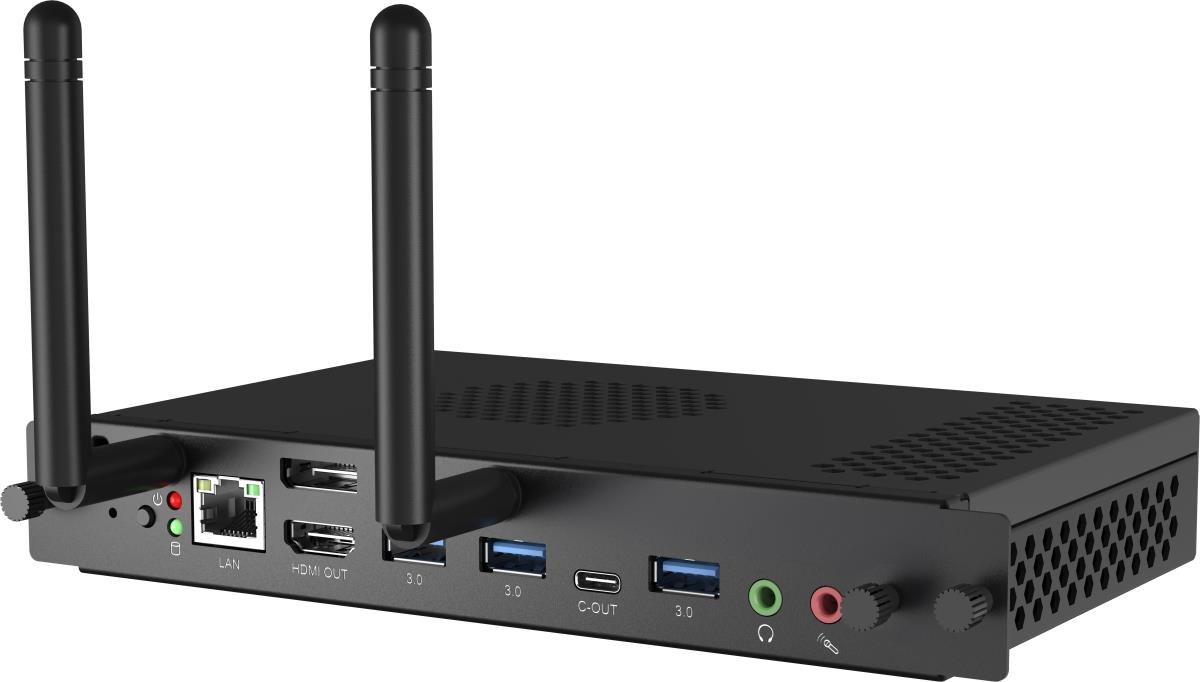

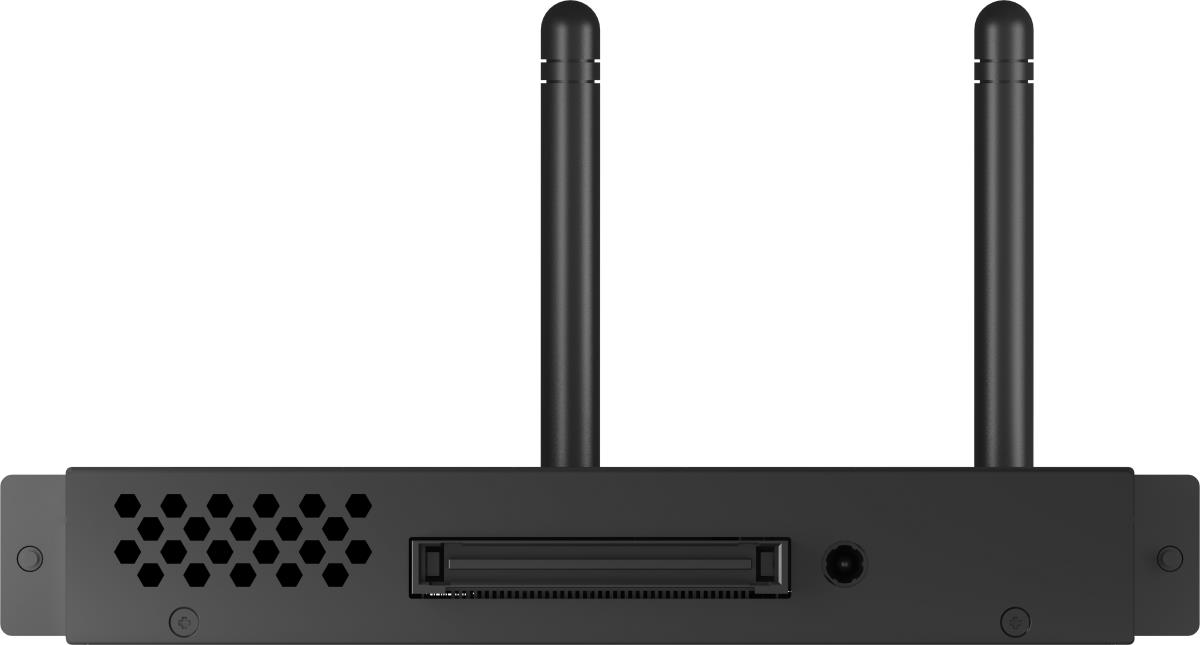

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.

Specifications

Processor
Processor generation12th gen Intel® Core™ i5
Processor cache typeSmart Cache
Processor cache12 MB
Processor modeli5-12450H
Processor manufacturerIntel
Processor cores8
Processor familyIntel® Core™ i5
Performance cores4
Efficient cores4
Processor base power45 W
Maximum turbo power95 W
Efficient-core Max Turbo Frequency3.3 GHz
Performance-core Max Turbo Frequency4.4 GHz
Memory
Internal memory8 GB
Maximum internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory clock speed3200 MHz
Storage
Storage mediaSSD
Optical drive typeNo
SSD interfacePCI Express
SSD capacity256 GB
Number of SSDs installed1
Total storage capacity256 GB
SSD form factorM.2
Total SSDs capacity256 GB
Graphics
Discrete graphics cardNo
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics
On-board GPU manufacturerIntel
Optical drive
Optical drive typeNo
Network
Ethernet LANYes
Wi-FiYes
Bluetooth version5.2
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN data rates10,100,1000 Mbit/s
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
HDMI version2.0
USB 2.0 ports quantity0
Microphone inYes
Headphone outputs1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
DisplayPort version1.4
Technical details
Product typeMini PC
Trusted Platform Module (TPM)Yes
Product colourBlack
Chassis typeMini PC
Design
Product colourBlack
Chassis typeMini PC
Performance
Product typeMini PC
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Software
Operating system architecture64-bit
Operating system installedWindows 11 IoT Enterprise
Power
Power consumption (typical)80.7 W
Power consumption (standby)2.9 W
Operational conditions
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 45 °C
Weight & dimensions
Package width260 mm
Package depth72 mm
Package height192 mm
Width119 mm
Depth180 mm
Height30 mm
Package weight957 g
Weight600 g
Packaging data
Package width260 mm
Package depth72 mm
Package height192 mm
Package weight957 g
Packaging content
Display includedNo
Other features
Trusted Platform Module (TPM)Yes
On-board graphics cardYes
Processor manufacturerIntel
