EU Product - Transceiver Gigabit SFP Mini-GBIC Multi-Mode 550m
Introduction

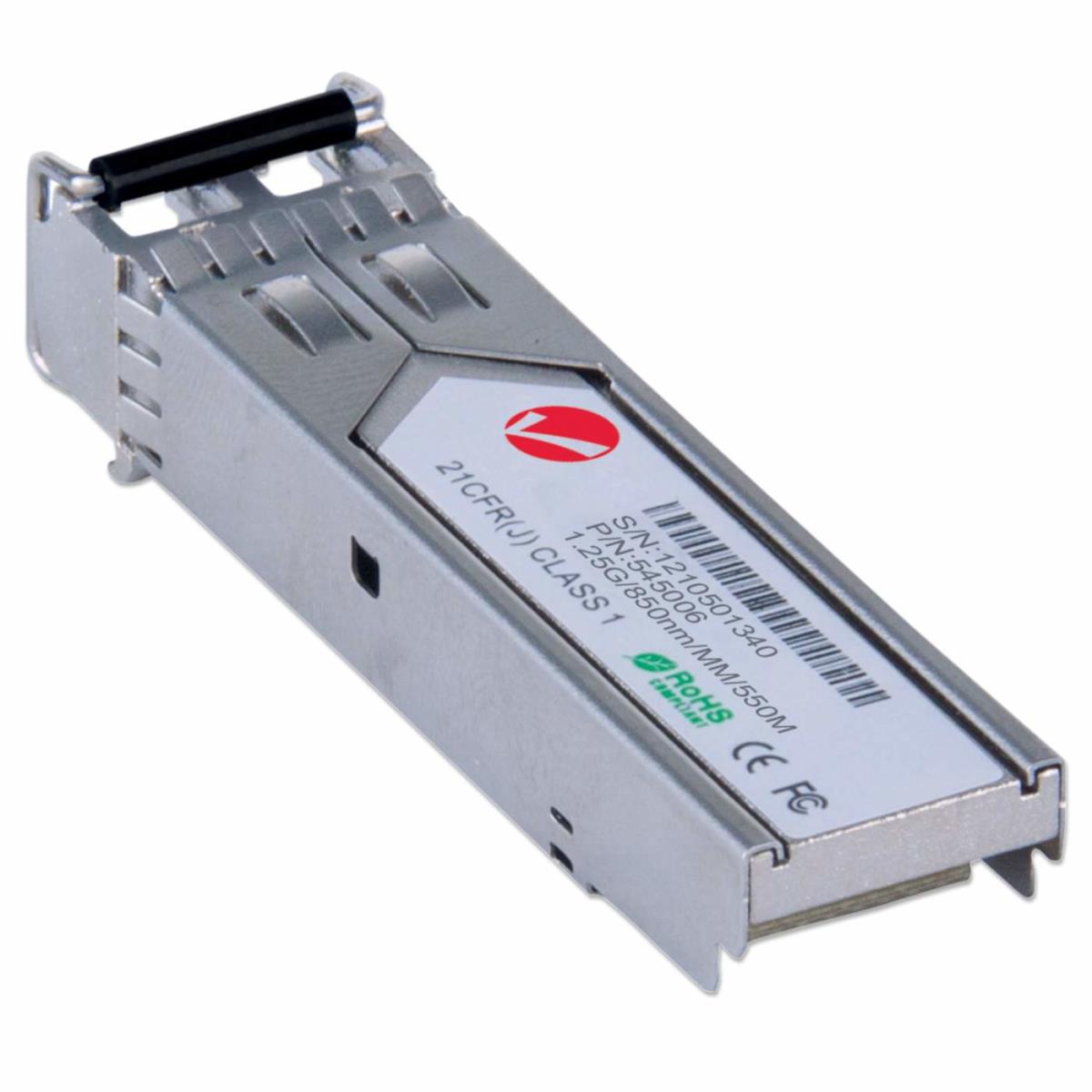

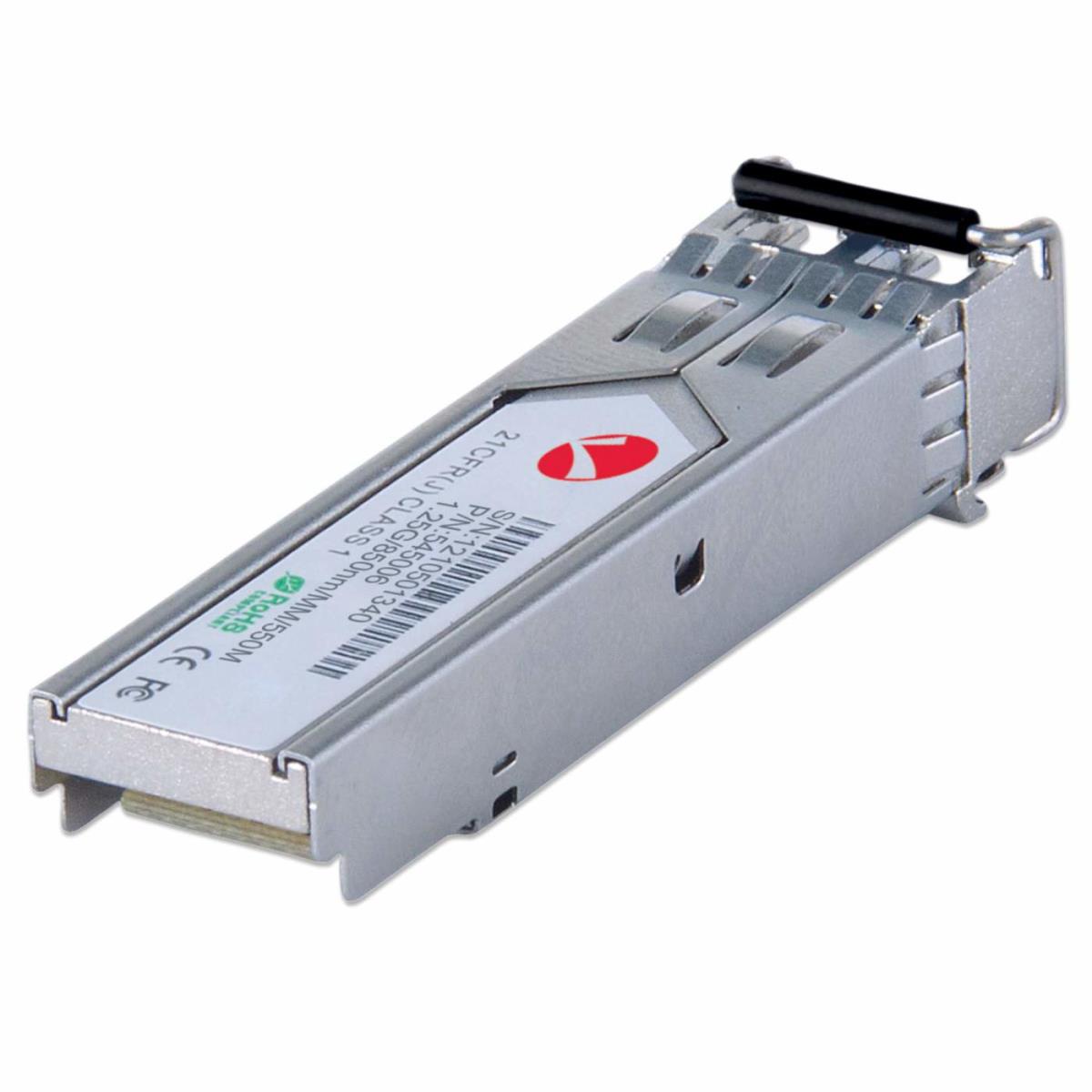

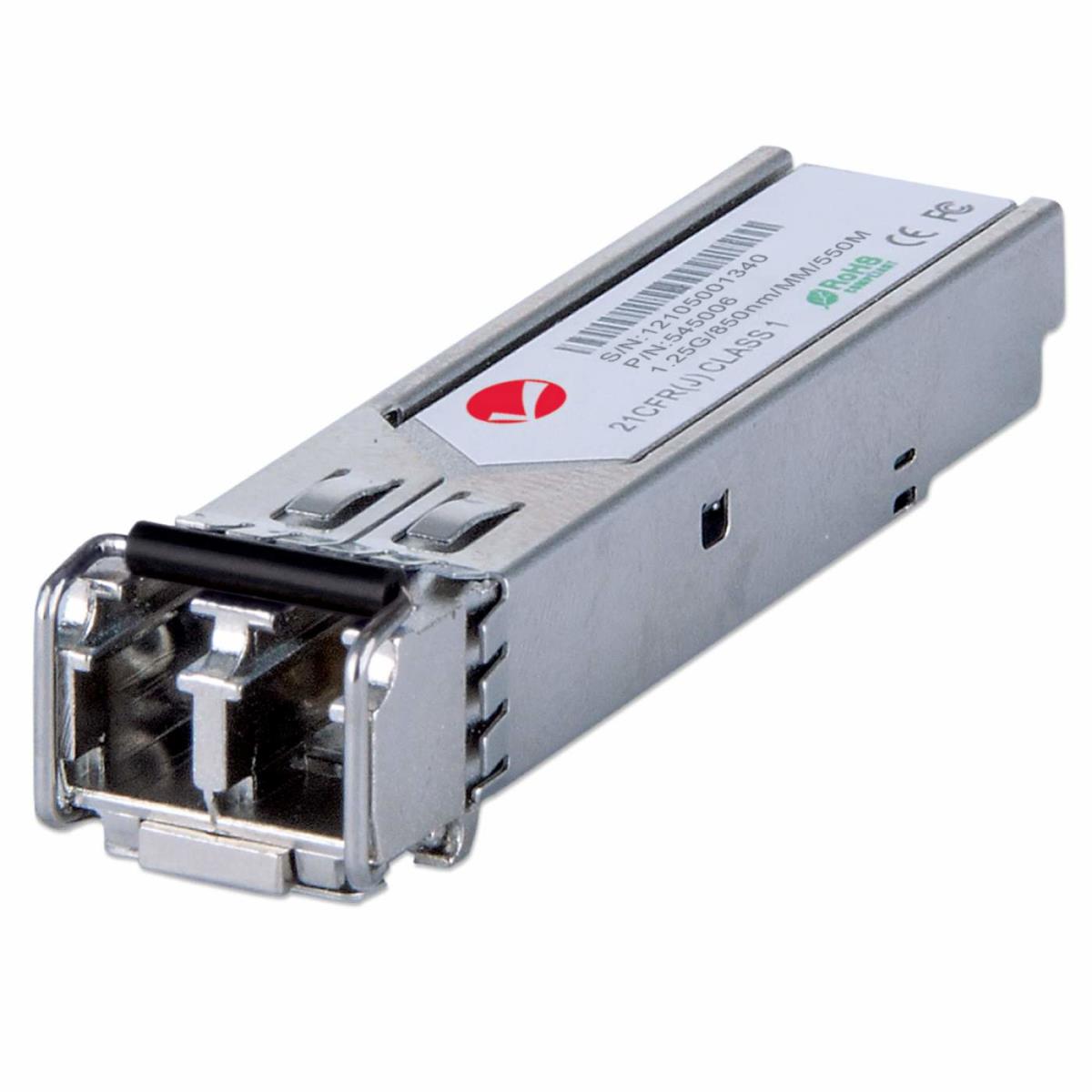

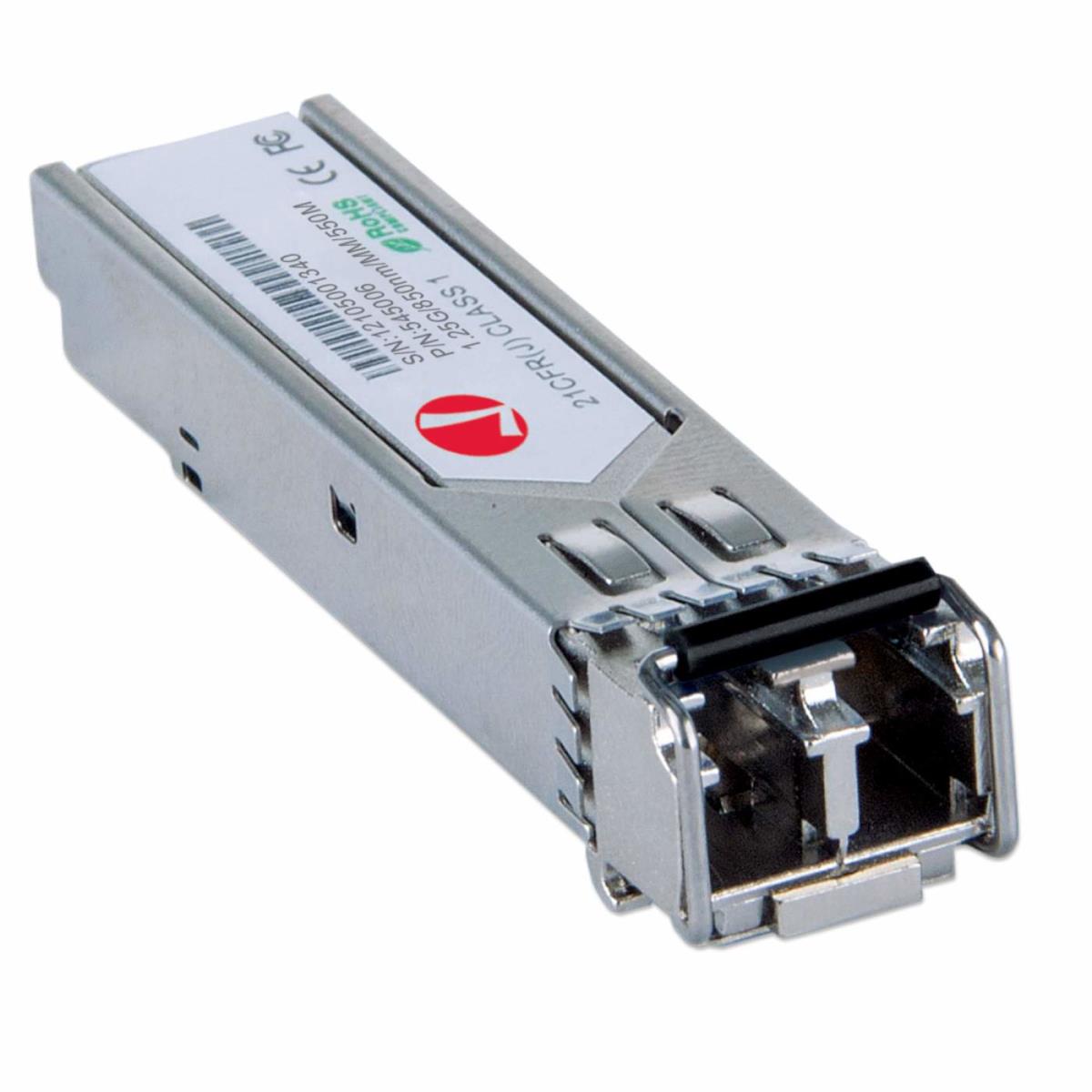

Gigabit Fibre SFP Optical Transceiver Module
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability.
Small Size for High-Density Fibre Connections
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room.
Multi-Vendor Compatible
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided.
Hot-Pluggable
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Link budget | 8 dB |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Features | |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Form factor | SFP |
| Certification | FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Gigabit Ethernet |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 55 mm |
| Height | 12 mm |
| Weight | 15 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Duplex system | Full |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
