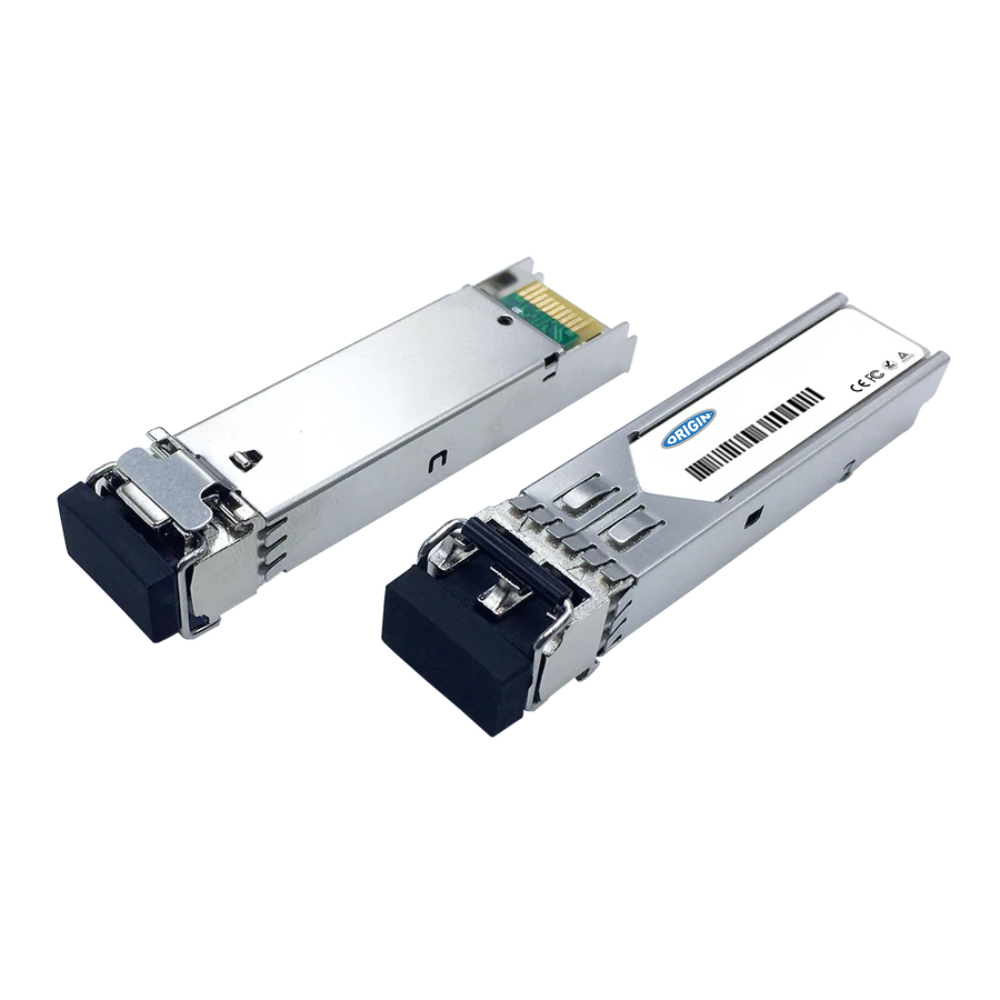

M-SFP-LX+/LC-EEC Hirschmann Compatible Transceiver SFP 1000Base-EX (1310nm SMF 40km LC DOM Ind Temp)
Introduction
Origin Storage M-SFP-LX+/LC-EEC Hirschmann Compatible Transceiver SFP 1000Base-EX (1310nm SMF 40km LC DOM Ind Temp)
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Ethernet interface type | Gigabit Ethernet |
| Country of origin | Taiwan, China |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Hirschmann |
| Features | |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Hirschmann |
| Country of origin | Taiwan, China |
| Certification | CE, FCC, RoHS, REACH |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH |
| Compliance certificates | Electromagnetic Compatibility (EMC), REACH, RoHS, CE, Federal Communications Commission (FCC) |
| Sustainability | |
| Doesn't contain | Lead |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Gigabit Ethernet |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Ethernet LAN | Yes |
| Doesn't contain | Lead |
| Warranty period | 20 year(s) |
| Compliance certificates | Electromagnetic Compatibility (EMC), REACH, RoHS, CE, Federal Communications Commission (FCC) |
| Packaging data | |
| Package type | Blister |
| Packaging content | |
| Package type | Blister |
| Logistics data | |
| Country of origin | Taiwan, China |
| Warranty period | 20 year(s) |
