EU Product - LevelOne SFP Transceiver 1.25Gbps MM Duplex LC 850nm 550m
Introduction

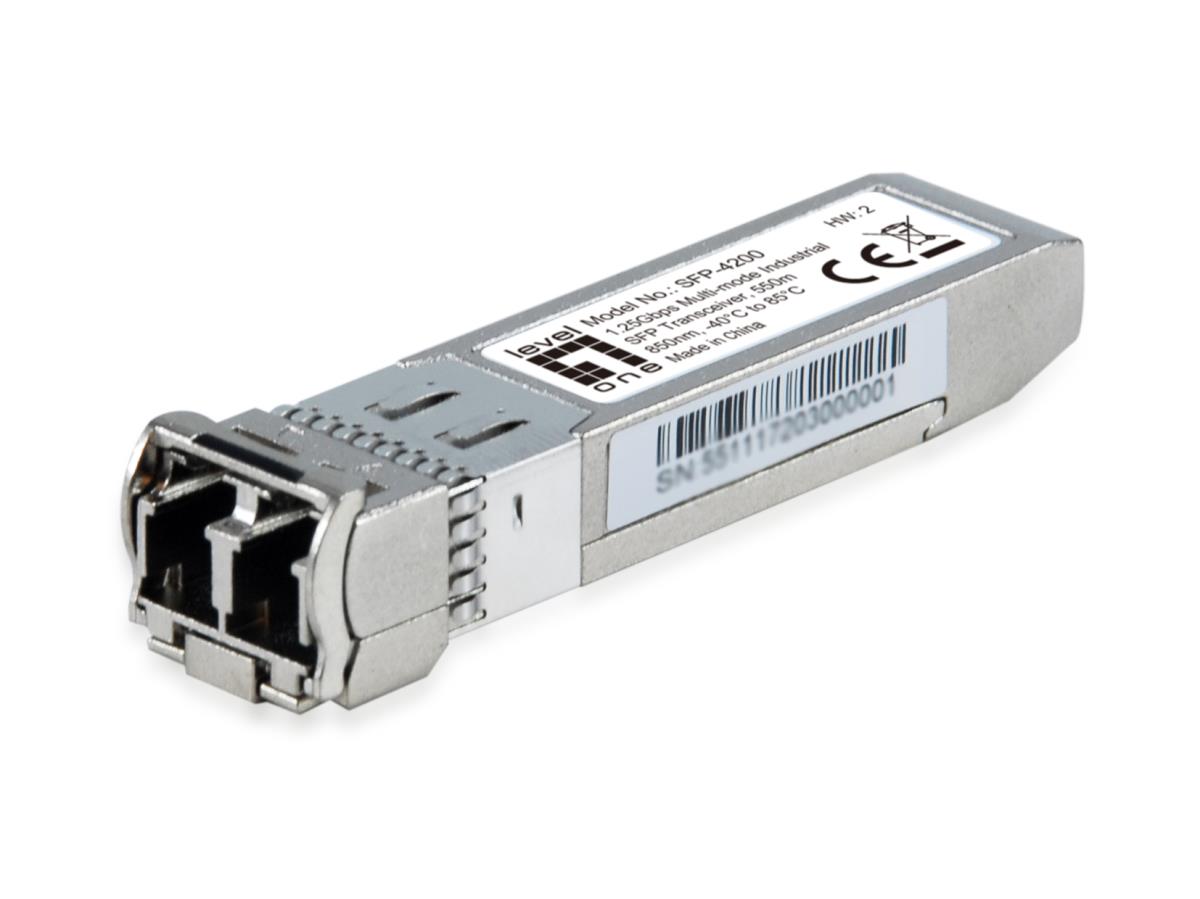

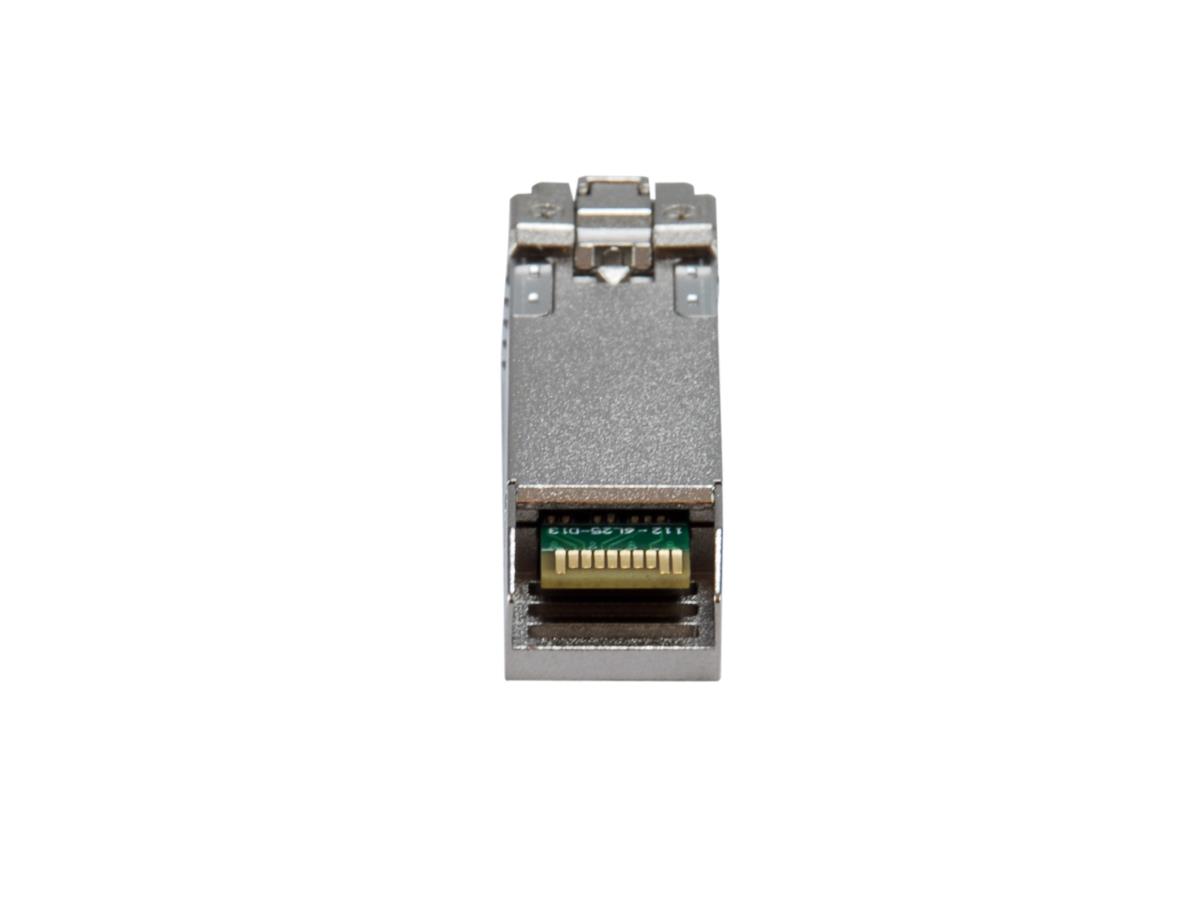

The levelOne SFP-4200 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-4200 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -10 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 5 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 40 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 65 mm |
| Package height | 20 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -10 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 40 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
