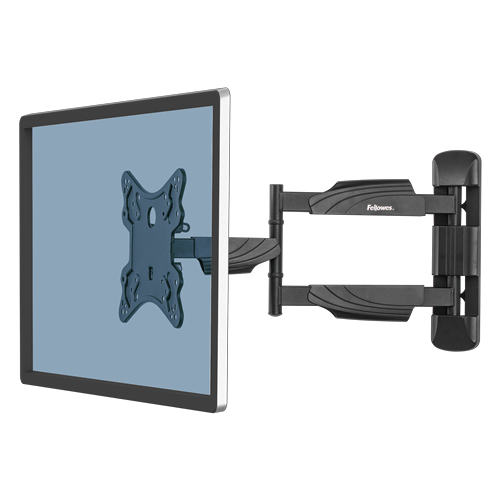

8043601 Full Motion TV Wall Mount
Introduction
Fellowes Full Motion LCD/LED/TV Wall Mount allows for tilt, swivel and levelling adjustment. Its detachable design allows for quick removal and the ability to combine extension arms for extended reach and articulation. With built in cable management and capability of holding screens 23"-55" and up to 35kgs. Specifications: +5/-5° Rotation +2°/ -12° Tilt +/- 90° Pan. VESA 100x100, 100x150, 200x100, 200x200, 400x200, 300x300, 400x400, 400x300, 300x200 compliant.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 58.4 cm (23") |
| Panel mounting interface | 100 x 100,100 x 150,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum screen size | 139.7 cm (55") |
| Suitable for TV | Yes |
| Ergonomics | |
| Cable management | Yes |
| Tilt angle range | -12 - 2° |
| Angle of rotation | 5° |
| Pan range | -90 - 90° |
| Number of arms | 1 |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 412.8 mm |
| Depth | 501.7 mm |
| Height | 454 mm |
| Weight | 2.72 kg |
| Other features | |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
