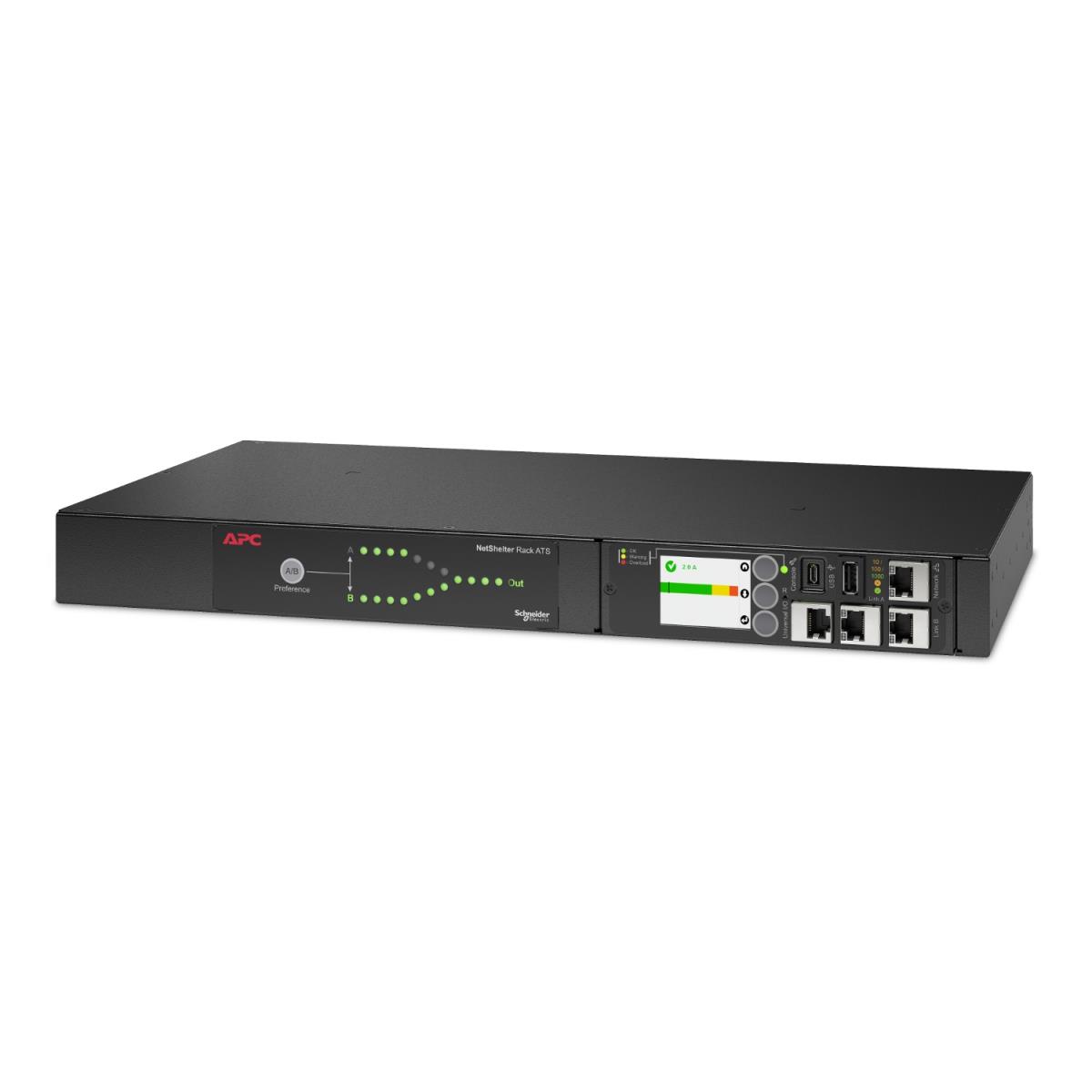

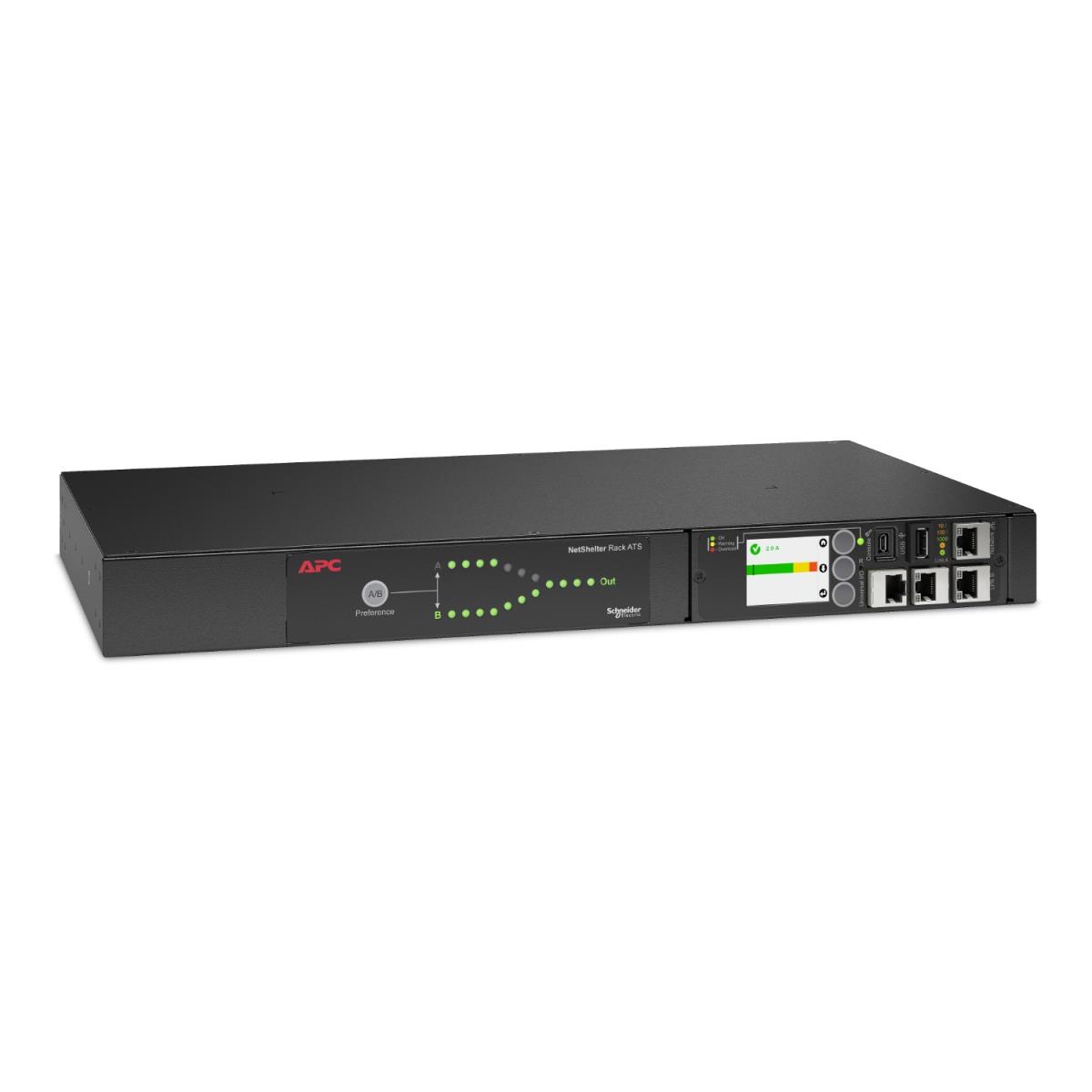

Netshelter Rack Automatic Transfer Switch AP4450A - Redundant switch (rack-mountable) - AC 100/120 V - 1440 VA - 1-phase - Ethernet 10/100/1000, USB - output connectors: 10 - 1U - 2.43 m cord - black
Introduction
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
| Power | |
|---|---|
| Input operation voltage (min) | 90 V |
| Input operation voltage (max) | 110 V |
| Input current | 15 A |
| AC input frequency | 50 - 60 Hz |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Display | LCD |
| Certification | PSE; TÜV-C; TÜV-NURTL; VCCI class A |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 942.894796271 |
| Compliance certificates | RoHS, REACH, WEEE |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Country of origin | Philippines |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 4.4 kg |
