EU Product - APC Back-UPS BX 950 VA BX950MI-GR
Introduction

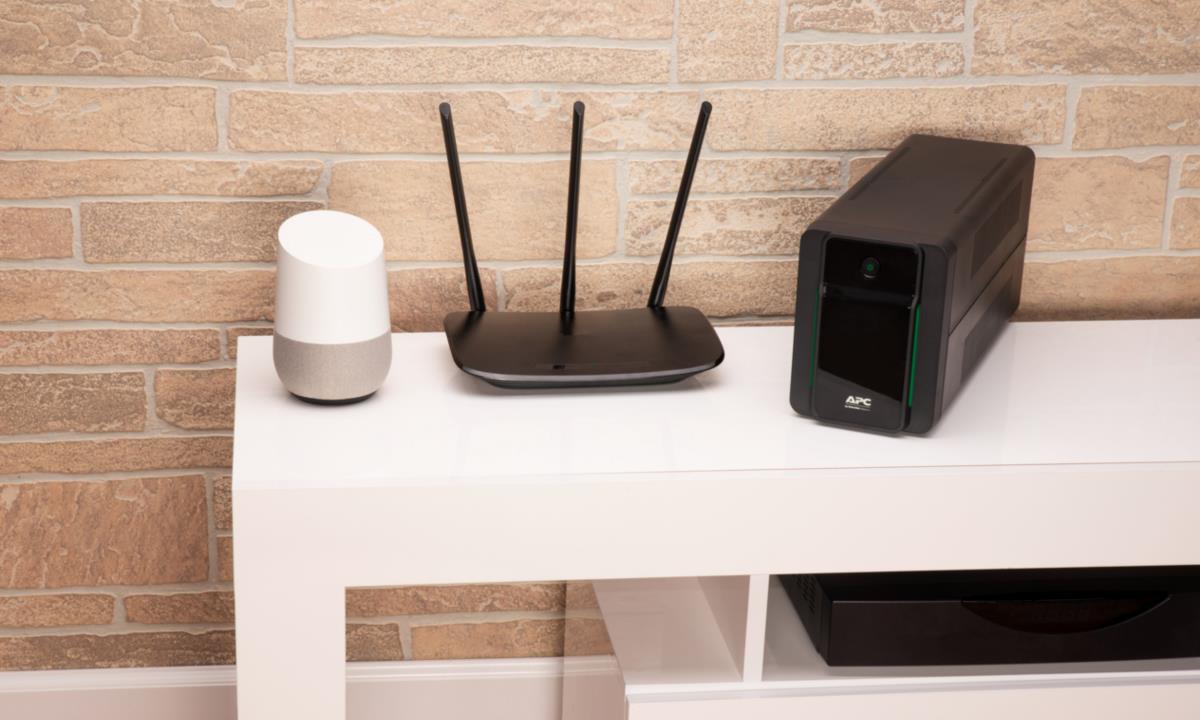

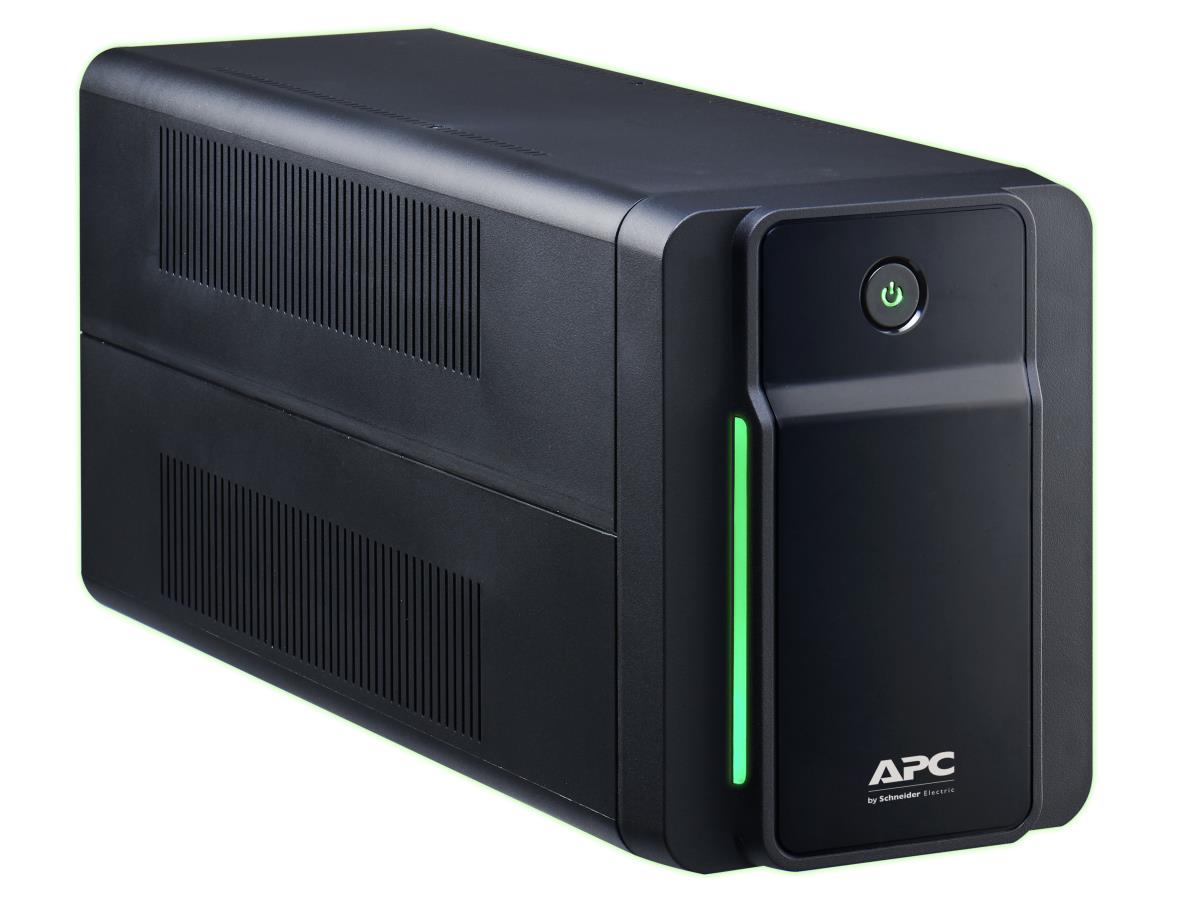

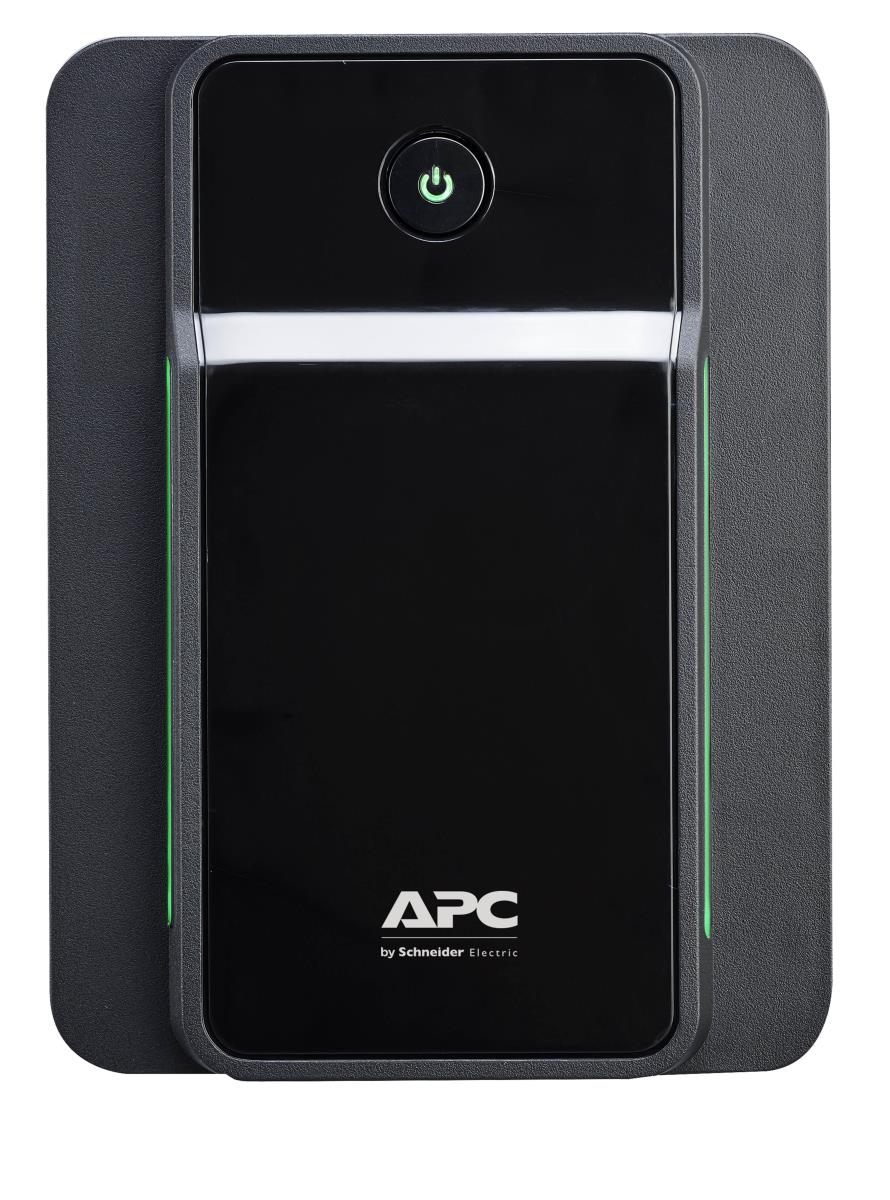

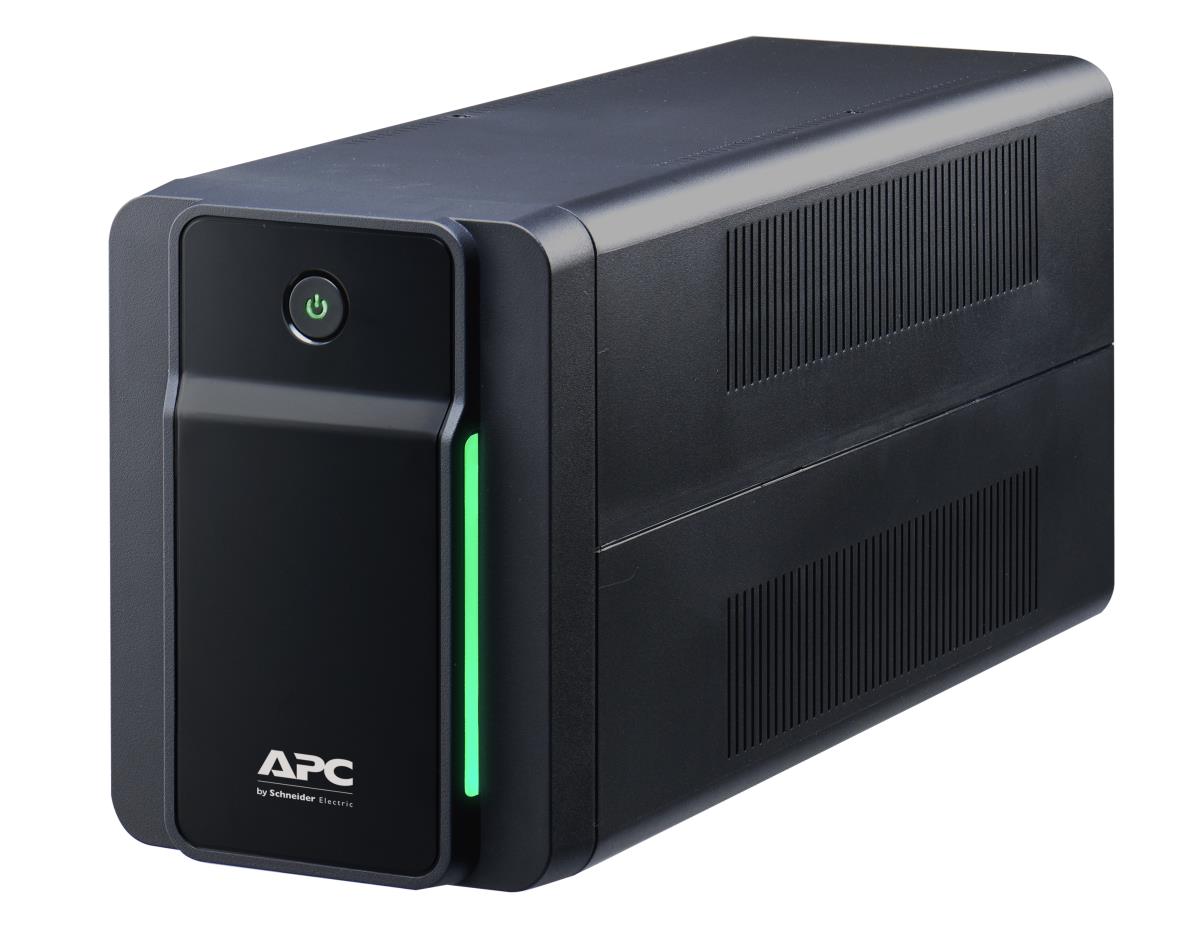

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 950VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 10% |
| Output frequency regulation | 0.5 Hz |
| Input power factor | 0.54 |
| Output power | 520 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 273 J |
| Output power capacity | 0.95 kVA |
| Ports & interfaces | |
| Cable length | 1.2 m |
| USB port | Yes |
| SmartSlot | No |

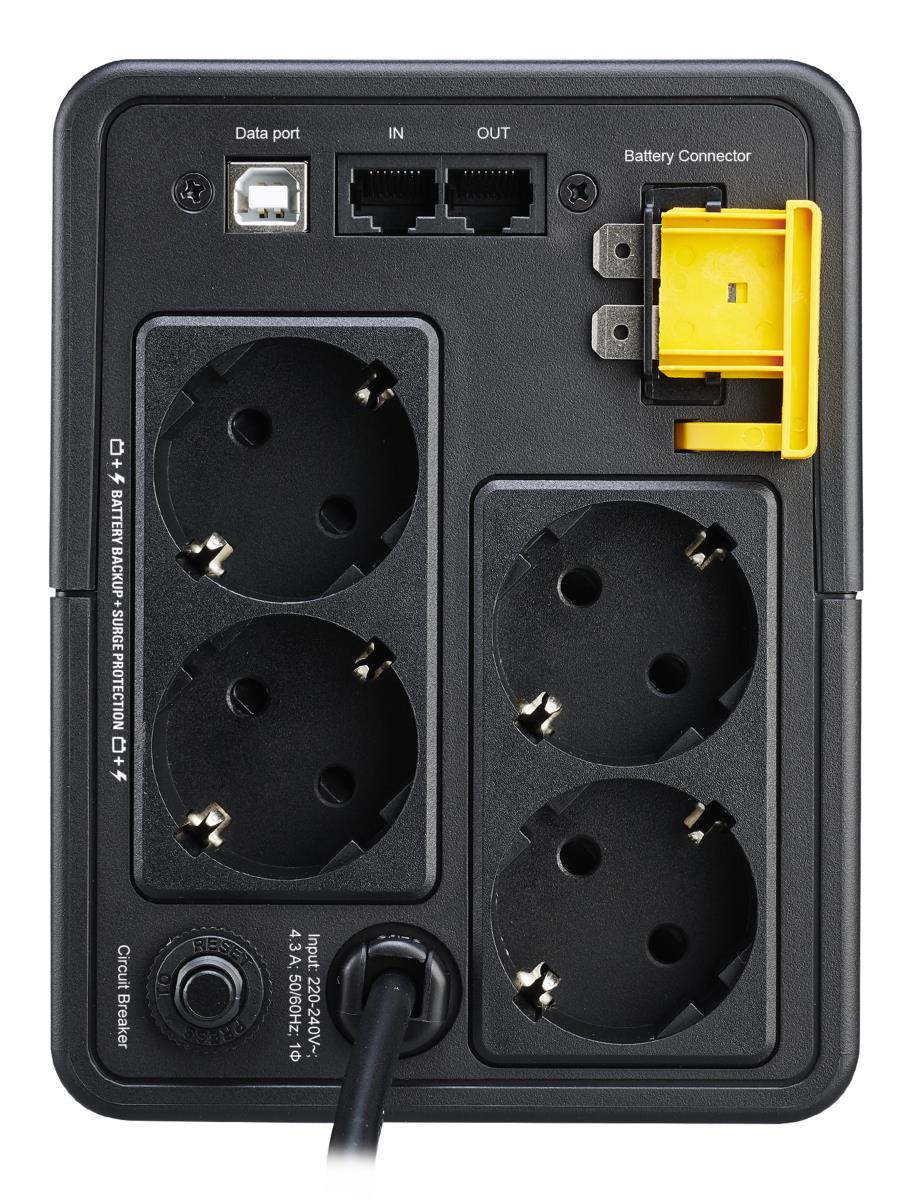

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | Type F |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-B |
| SmartConnect port | No |
| Performance | |
| Audible alarm modes | Low battery alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |

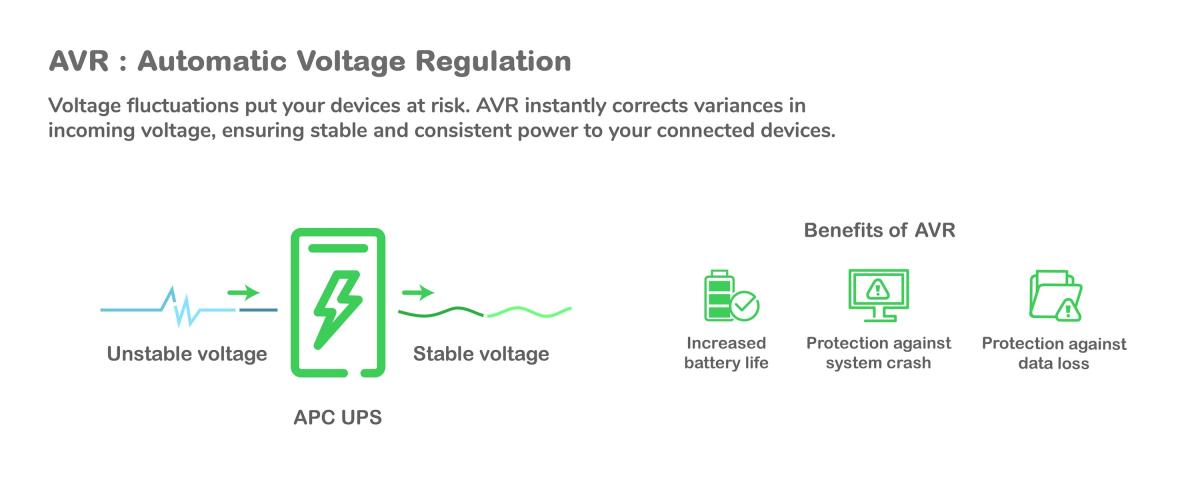

| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Low battery alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output voltage regulation | 10% |
| Output frequency regulation | 0.5 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Input power factor | 0.54 |
| Response time | 6 ms |
| Output power | 520 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 273 J |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.95 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 2 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |

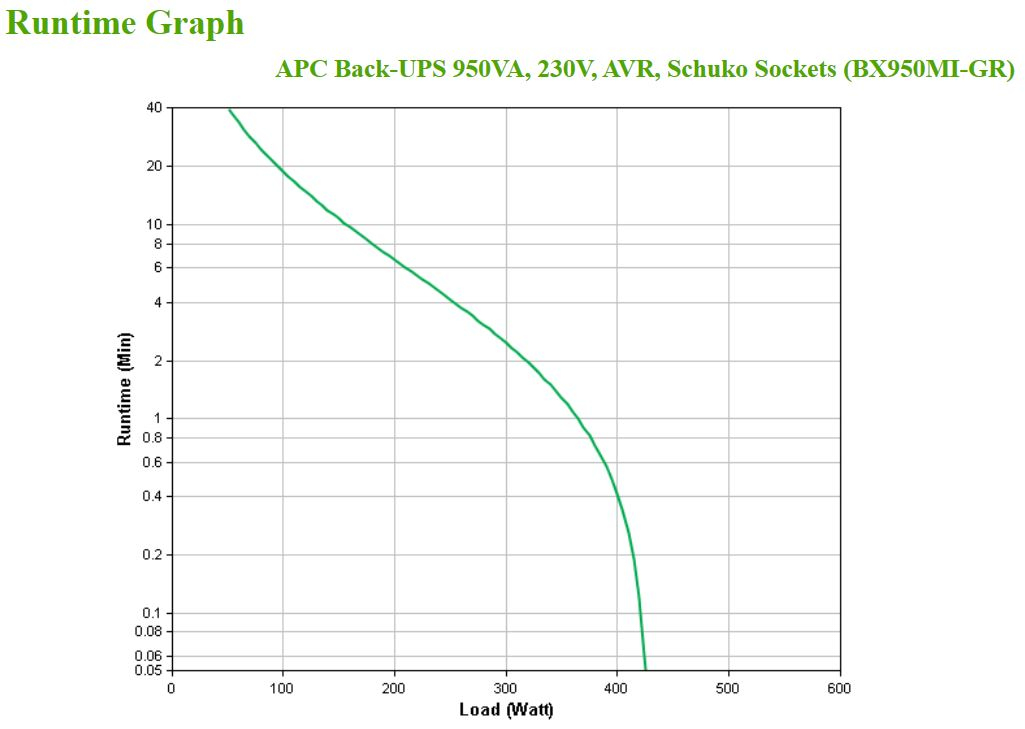

| Typical backup time at half load | 6.5 min |
| Typical backup time at full load | 1 min |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Cable length | 1.2 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Compliance certificates | RoHS |
| Packaging content | |
| Cables included | Input power cable |
| Manual | Yes |
| Management card included | No |
| Weight & dimensions | |
| Package width | 197 mm |
| Package depth | 430 mm |
| Package height | 250 mm |
| Weight | 6.1 kg |
| Width | 120 mm |
| Package weight | 6.6 kg |
| Height | 160 mm |
| Depth | 355 mm |
| Packaging data | |
| Cables included | Input power cable |
| Manual | Yes |
| Package width | 197 mm |
| Package depth | 430 mm |
| Package height | 250 mm |
| Package weight | 6.6 kg |
| Management card included | No |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
