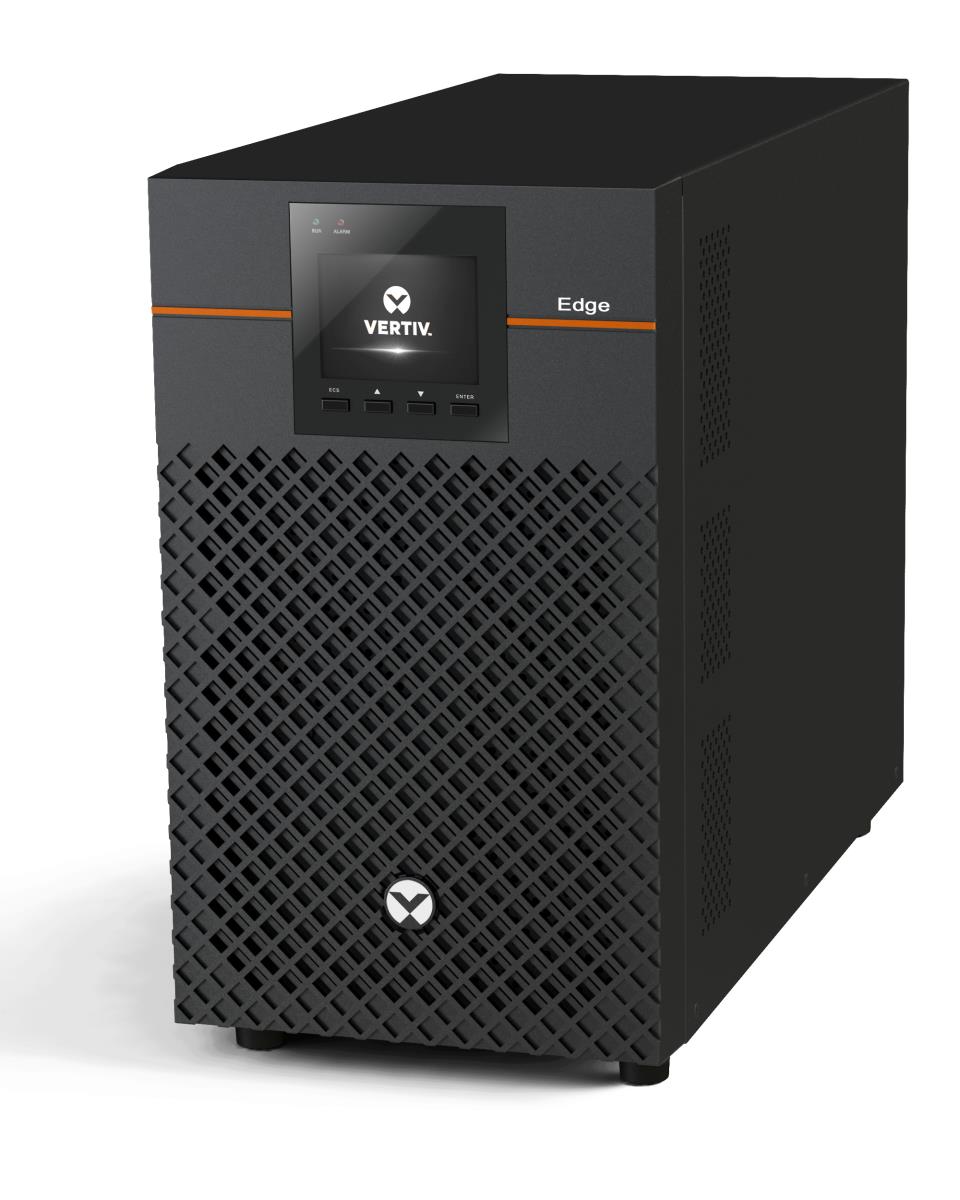

EDGE UPS 1KVA 230V TOWER

Introduction

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. This 1000VA UPS mini-tower offers powerful and reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and is available in multiple form factors: mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with intuitive, color LCD screen.

Specifications

Power
Output power	900 W
Input operation voltage (min)	166 V
Input operation voltage (max)	278 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	624 J
Efficiency	96%
Output power capacity	1 kVA
Performance
UPS topology	Line-Interactive
Waveform	Pure sine
Features
Country of origin	China
UPS topology	Line-Interactive
Waveform	Pure sine
Output power	900 W
Input operation voltage (min)	166 V
Input operation voltage (max)	278 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	624 J
Efficiency	96%
Output power capacity	1 kVA
Input frequency	55/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	5 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C13 coupler
Battery
Battery recharge time	3 h
Design
Country of origin	China
Rack capacity	1U
Form factor	Tower
Product colour	Black
Safety	IEC/EN62040-1
Certification	CE, CB Report, EAC, RCM, UKCA
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 90%
Operating altitude	0 - 3000 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	CE, RoHS
Certificates
Certification	CE, CB Report, EAC, RCM, UKCA
Compliance certificates	CE, RoHS
Safety	IEC/EN62040-1
Safety regulation & standards
Safety	IEC/EN62040-1
Weight & dimensions
Package width	230 mm
Package depth	450 mm
Package height	325 mm
Weight	14 kg
Width	145 mm
Package weight	16 kg
Height	220 mm
Depth	370 mm
Packaging data
Package width	230 mm
Package depth	450 mm
Package height	325 mm
Package weight	16 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	85078000
Other features
Nominal output voltage	200-240 V
Nominal input voltage	230 V
