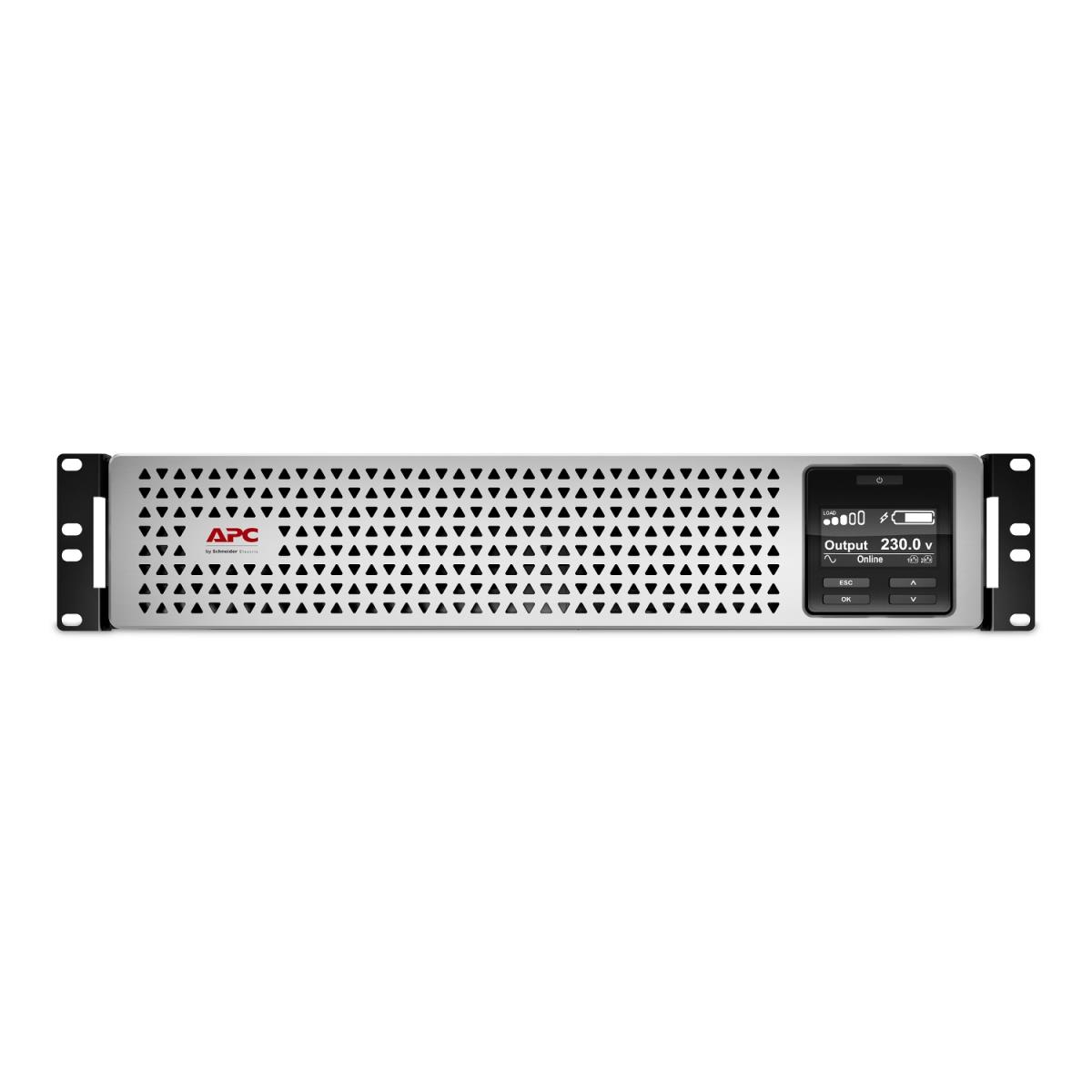

APC SMART-UPS SRT 1000VA 230 V

Introduction

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.

Specifications

Power
Output power	900 W
Input operation voltage (min)	80 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Output power capacity	1 kVA
Single-phase input voltage supported	230 V
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Noise level	50 dB
Features
Output frequency	50/60 Hz
Country of origin	Philippines
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Output power	900 W
Input operation voltage (min)	80 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	50 dB
Crest factor	3:1
Output power capacity	1 kVA
Single-phase input voltage supported	230 V
Input frequency	40 - 70 Hz
Heat dissipation	400 BTU/h
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C14 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery replacement accessibility	End-user
Design
Country of origin	Philippines
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Certification	CE; EAC; RCM; VDE; UK PSTI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Mounting	vertical
Total carbon footprint (kg of CO2e)	3379.6187638726
Compliance certificates	RoHS, REACH, WEEE
Certificates
Certification	CE; EAC; RCM; VDE; UK PSTI
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight & dimensions
Package width	810 mm
Package depth	600 mm
Package height	245 mm
Weight	17.5 kg
Width	432 mm
Package weight	28.2 kg
Height	85 mm
Depth	590 mm
Packaging data
Package width	810 mm
Package depth	600 mm
Package height	245 mm
Package weight	28.2 kg
Logistics data
Country of origin	Philippines
Customs product code (TARIC)	8504409590
Total carbon footprint (kg of CO2e)	3379.6187638726
Other features
Output voltage	230 V
Mounting	vertical
Input connection type	IEC 60320 C14
Output connection type	8 IEC 60320C13
