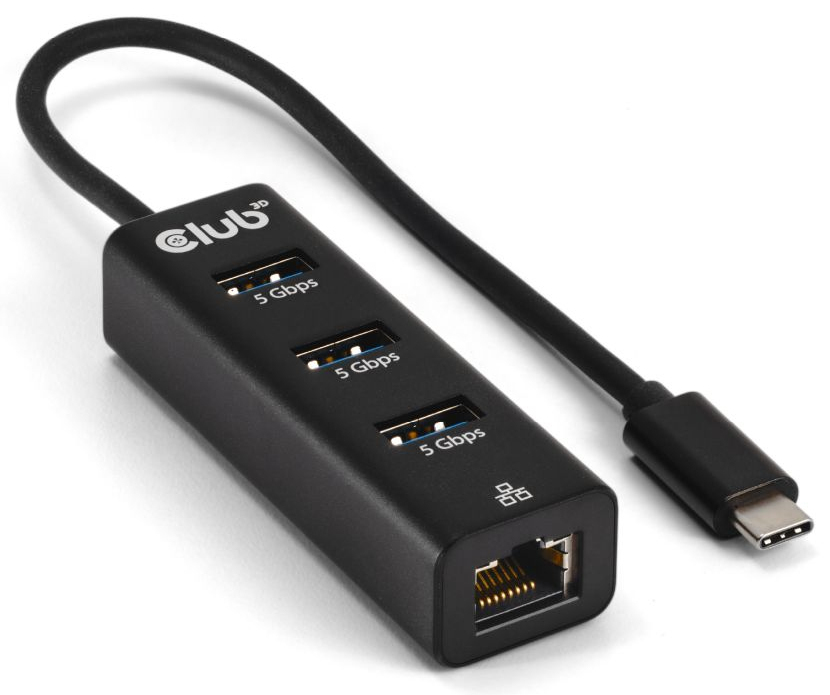

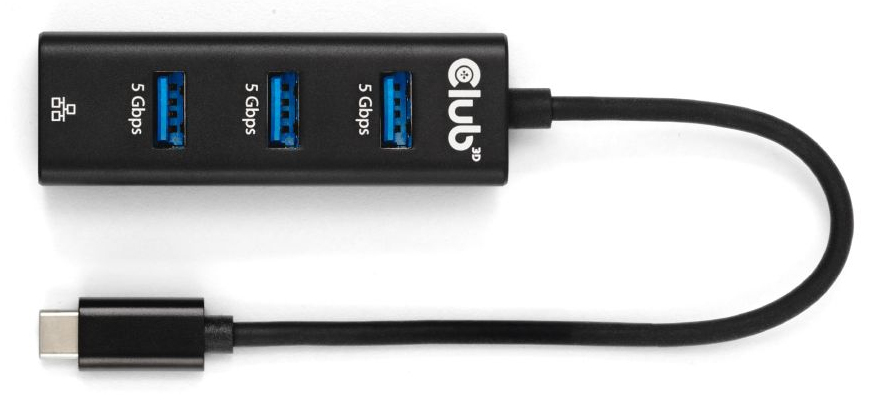

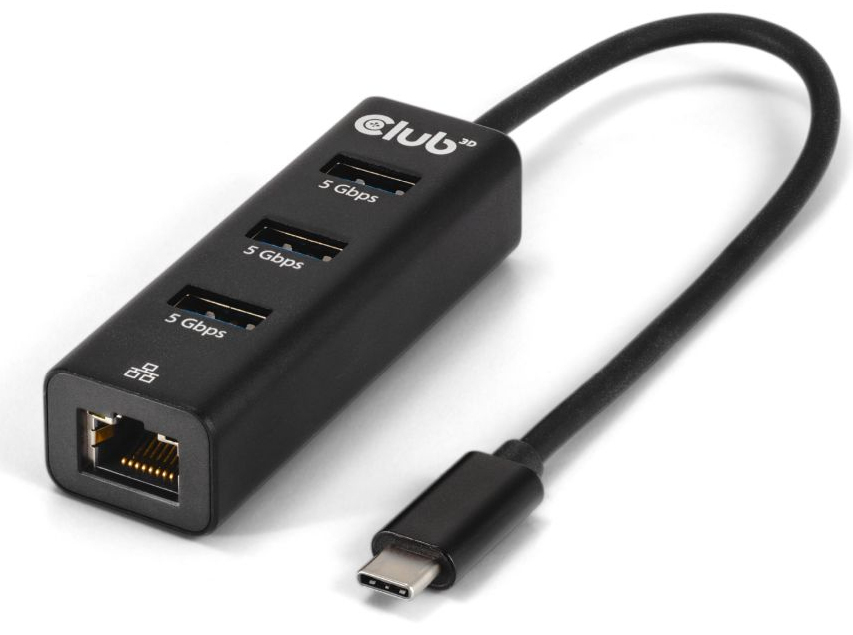

EU Product - Usb Typ-C 3.2 Gen1 auf 3 Port Typ-A Hub mit Gigabit
Introduction
The Club 3D CSV-1549 is an USB 3.2 Gen1 Type-C Hub to 3 USB Type-A Ports with Gigabit Ethernet and is designed in a stylish manner and very slim which makes it easy to carry around. The CSV-1549 allows you simultaneous access to 3 x USB 3.2 Gen1 Type-A ports and the Ethernet 10/100/1000 Port from just one single USB 3.2 Gen1 Type-C up-link. The Device is downwards compatible to USB 2.0 standard, but this will have influence on the performance. The 3 USB ports are all USB Type-A and USB 3.2 Gen1 compliant with max 5Gbps data transmission. The Ethernet port is compliant to Gigabit Ethernet 10/100/1000 (RJ45) and full duplex with flow control.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Hub interfaces | RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | No |
| Card reader integrated | No |
| Ports quantity | 4 |
| Features | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Product colour | Black |
| Cable type | Round cable |
| Data transfer rate | 5000 Mbit/s |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 12 W |
| Host interface | USB Type-C |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Output current | 0.9 A |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Product colour | Black |
| Plastic packaging weight | 0 g |
| Compliance certificates | RoHS |
| Performance | |
| Card reader integrated | No |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Data transfer rate | 5000 Mbit/s |
| USB Power Delivery (USB PD) | Yes |
| Harmonized System (HS) code | 8473 3020 |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Weight | 45 g |
| Width | 78.8 mm |
| Depth | 25.6 mm |
| Height | 19 mm |
| Package width | 60 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 67 g |
| Packaging data | |
| Package type | Hanging box |
| Package width | 60 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 67 g |
| Design | |
| Product colour | Black |
| Packaging composition | |
| Plastic packaging weight | 0 g |
| Paper/cardboard packaging weight | 22 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Packaging content | |
| Package type | Hanging box |
| Other features | |
| Cable type | Round cable |
