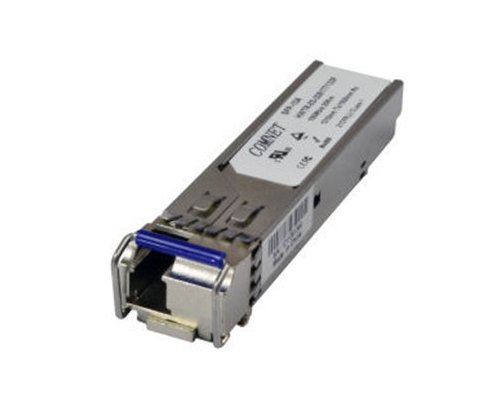

ComNet SFP-10B network transceiver module Fiber optic 100 Mbit/s 1550 nm
Introduction
The ComNet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a ComNet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions. They also are available with LC or SC optical connectors. The ComNet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments.
Features
- Interchangeable SFP for fiber type, distance and connector
- IEEE 802.3 compliant
- Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA)
- Operating temperature: -40° C to +75° C
- Storage temperature: -40° C to +85° C
- No in-field adjustments required
Specifications
- Product Number SFP-10B
- Speed (Mbps) 100
- Transmission Medium Single Mode
- TX λ (nm) 1550
- RX λ (nm) 1310
- Max. Path Length 20 km
- TX Power (dBm) -14
- RX Sensitivity (dBm) ≤-33
- Opt. Loss Budget (dBm) 19
- Number of Fibers 1
- Connector LC
